RECOIL STARTER
ENG

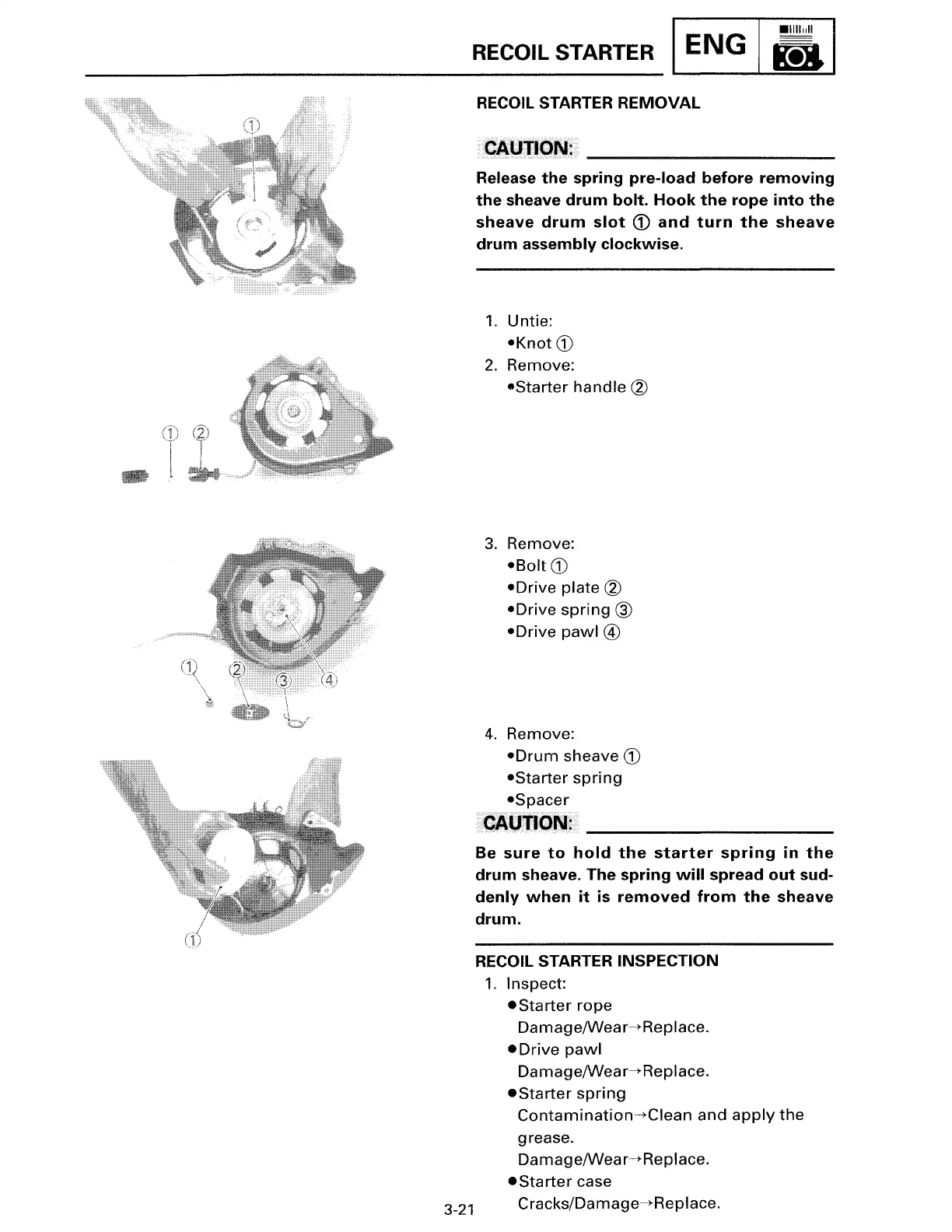

RECOIL STARTER REMOVAL
CAUTION:
Release the spring pre-load before removing
the sheave drum bolt. Hook the rope into the
sheave drum slot G) and turn the sheave
drum assembly clockwise.
1. Untie:
•Knot <D
2. Remove:
•Starter handle@
3. Remove:
•Bolt <D
•Drive plate@
•Drive spring ®
•Drive pawl @
4. Remove:
•Drum sheave <D
•Starter spring
•Spacer
CAUTION:
Be sure to hold the starter spring in the
drum sheave. The spring will spread out sud-
denly when it is removed from the sheave
drum.
RECOIL STARTER INSPECTION
1. Inspect:
•Starter rope
Damage/Wear---+Replace.
•Drive pawl
Damage/Wear-+ Replace.
•Starter spring
Contamination--+Ciean and apply the
grease.
Damage/Wear---+Replace.
•Starter case
3-2
1
Cracks/Damage---+Replace.
