Yamaha EF1000 - Generator Assembly Service

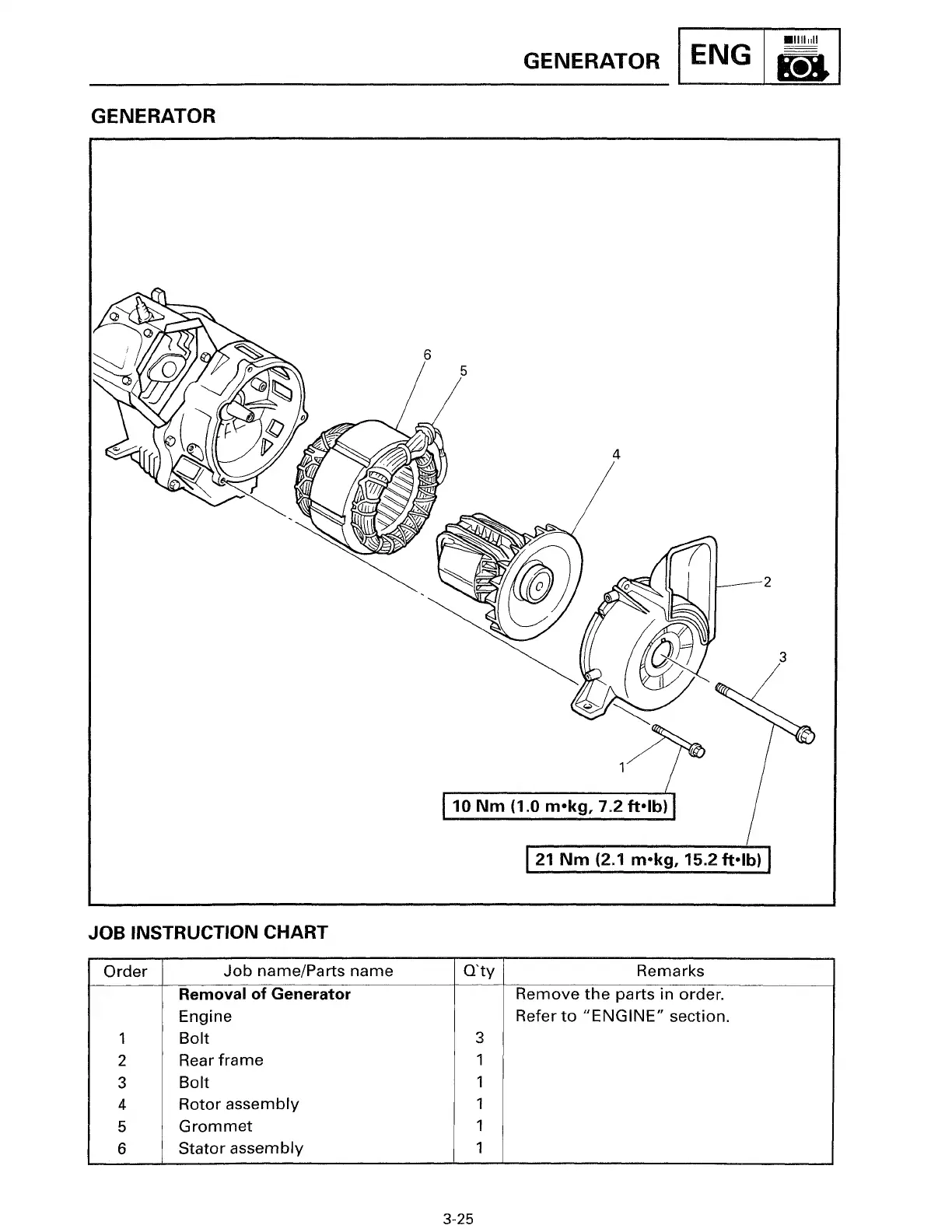

GENERATOR
ENG
GENERATOR
4
3
10 Nm (1.0 m•kg, 7.2 ft•lb)
l21 Nm (2.1 m•kg, 15.2 ft•lb) l
JOB INSTRUCTION CHART
Order
Job name/Parts name
Q'ty
Remarks
Removal of Generator Remove the parts in order.
Engine
Refer to ~~ENGINE" section.
1 Bolt
3
2
Rear frame
1
3
Bolt
1
4
Rotor assembly
1
5
Grommet
1
6
Stator assembly 1
