3-26
GENERATOR
ENG

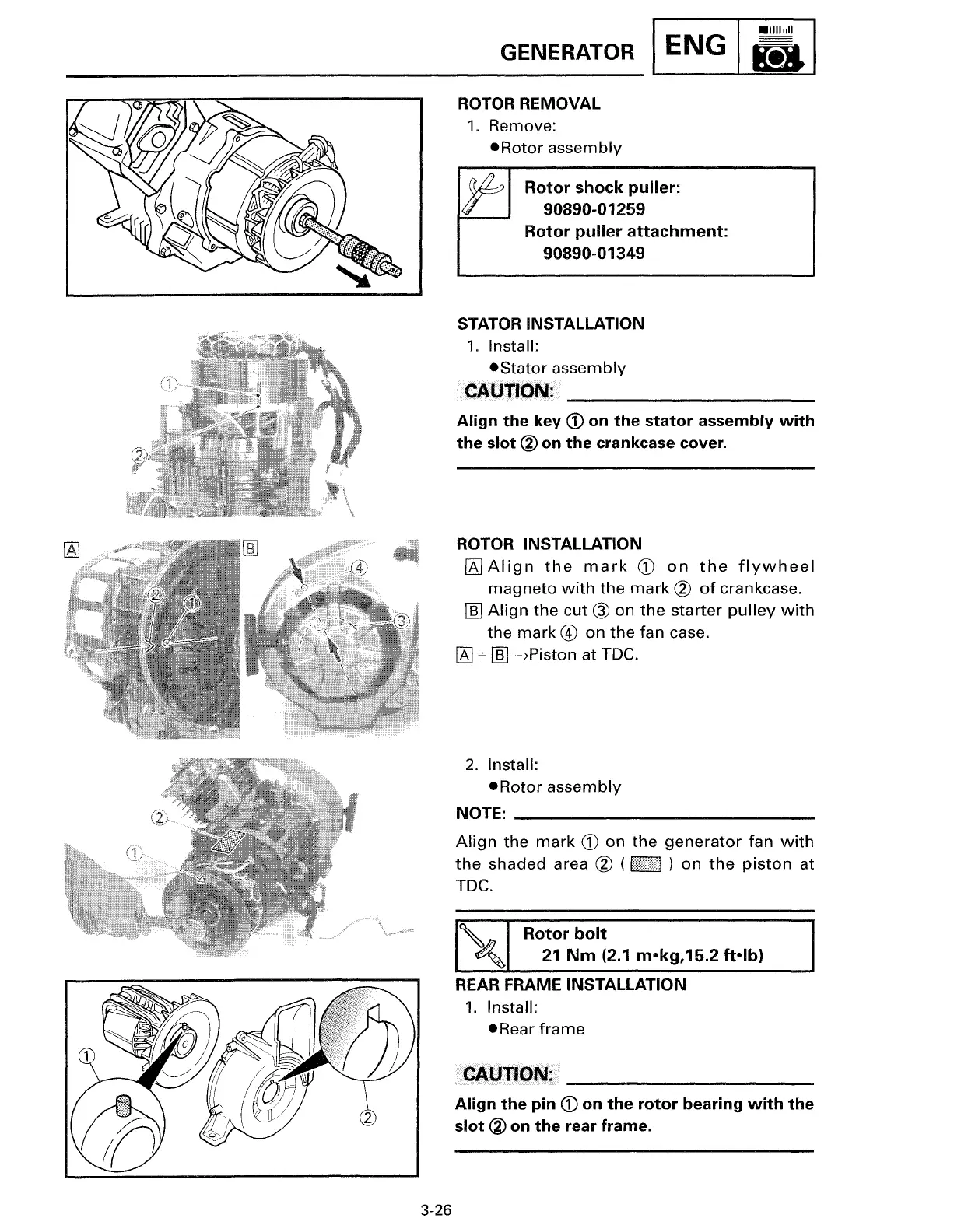

ROTOR REMOVAL
1. Remove:
•Rotor assembly
Rotor shock puller:
90890-01259
Rotor puller attachment:
90890-01349
STATOR INSTALLATION
1. Install:
•Stator assembly
CAUTION:
Align the key <D on the stator assembly with
the slot® on the crankcase cover.
ROTOR INSTALLATION
[A] Align the mark <D on the flywheel
magneto with the mark® of crankcase.
[ill Align the cut@ on the starter pulley with
the mark@ on the fan case.
[A]+ [ill ~Piston at TDC.
2. Install:
•Rotor assembly
NOTE: --------------------------
Align the mark <D on the generator fan with
the shaded area (g) ( !t l ) on the piston at
TDC.
Rotor bolt
21 Nm (2.1 m•kg, 15.2 ft•lb)
REAR FRAME INSTALLATION
1. Install:
•Rear frame
CAUTION:
Align the pin <D on the rotor bearing with the
slot ® on the rear frame.
