Yamaha EF1000 - Recoil Starter Service

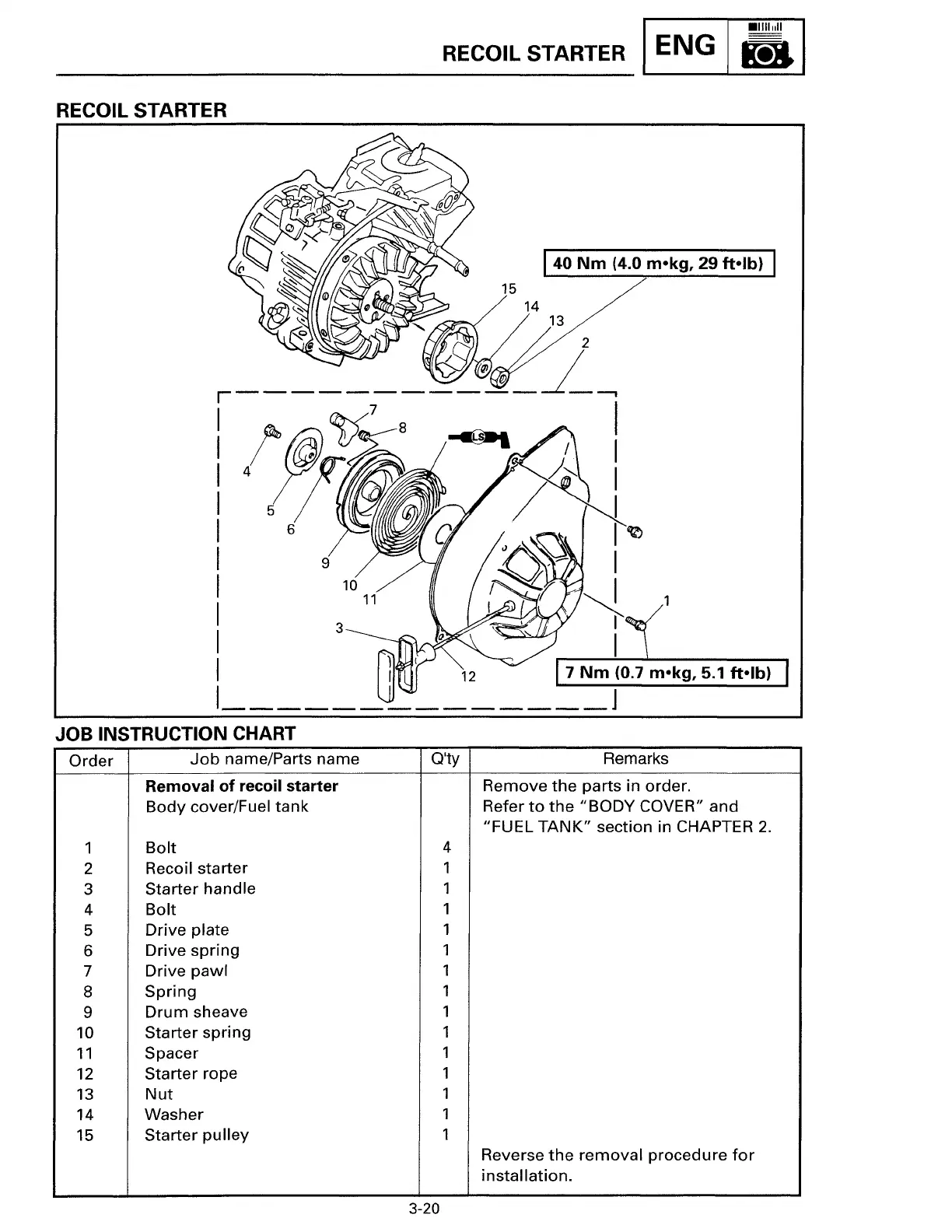

RECOIL STARTER
ENG
RECOIL STARTER
I 40 Nm (4.0 m•kg, 29 ft•lb) I
13
JOB INSTRUCTION CHART
Order
Job name/Parts name
Q'ty Remarks
Removal of recoil starter Remove the parts in order.
Body cover/Fuel tank
Refer to the "BODY COVER" and
"FUEL TANK" section in CHAPTER 2.
1
Bolt
4
2
Recoil
starter 1
3
Starter handle 1
4
Bolt
1
5
Drive plate
1
6
Drive spring
1
7
Drive pawl
1
8
Spring
1
9
Drum sheave
1
10
Starter spring
1
11
Spacer
1
12
Starter rope
1
13
Nut
1
14
Washer
1
15
Starter pulley
1
Reverse
the removal procedure for
installation.
3-20
