Yamaha EF1000 - Recoil Starter Installation

3-22
•nnull
RECOIL STARTER
ENG B

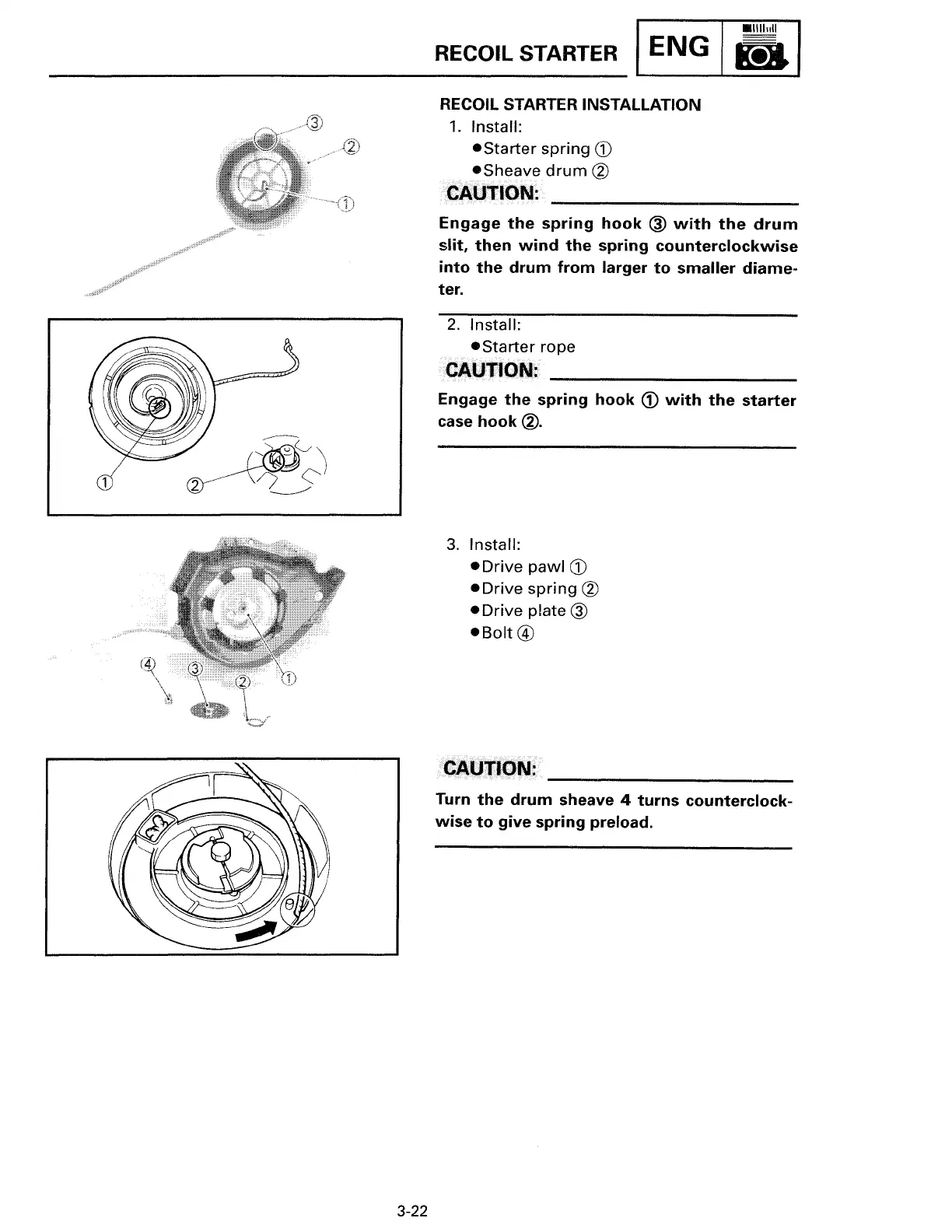

RECOIL STARTER INSTALLATION
1. Install:
•Starter spring CD
•Sheave drum~
CAUTION:
Engage the spring hook @ with the drum
slit, then wind the spring counterclockwise
into the drum from larger to smaller diame-
ter.
2. Install:
•Starter rope
CAUTION:
Engage the spring hook <D with the starter
case hook@.
3. Install:
• Drive pawl CD
•Drive spring~
•Drive plate@
•Bolt@
CAUTION:
Turn the drum sheave 4 turns counterclock-
wise to give spring preload.
