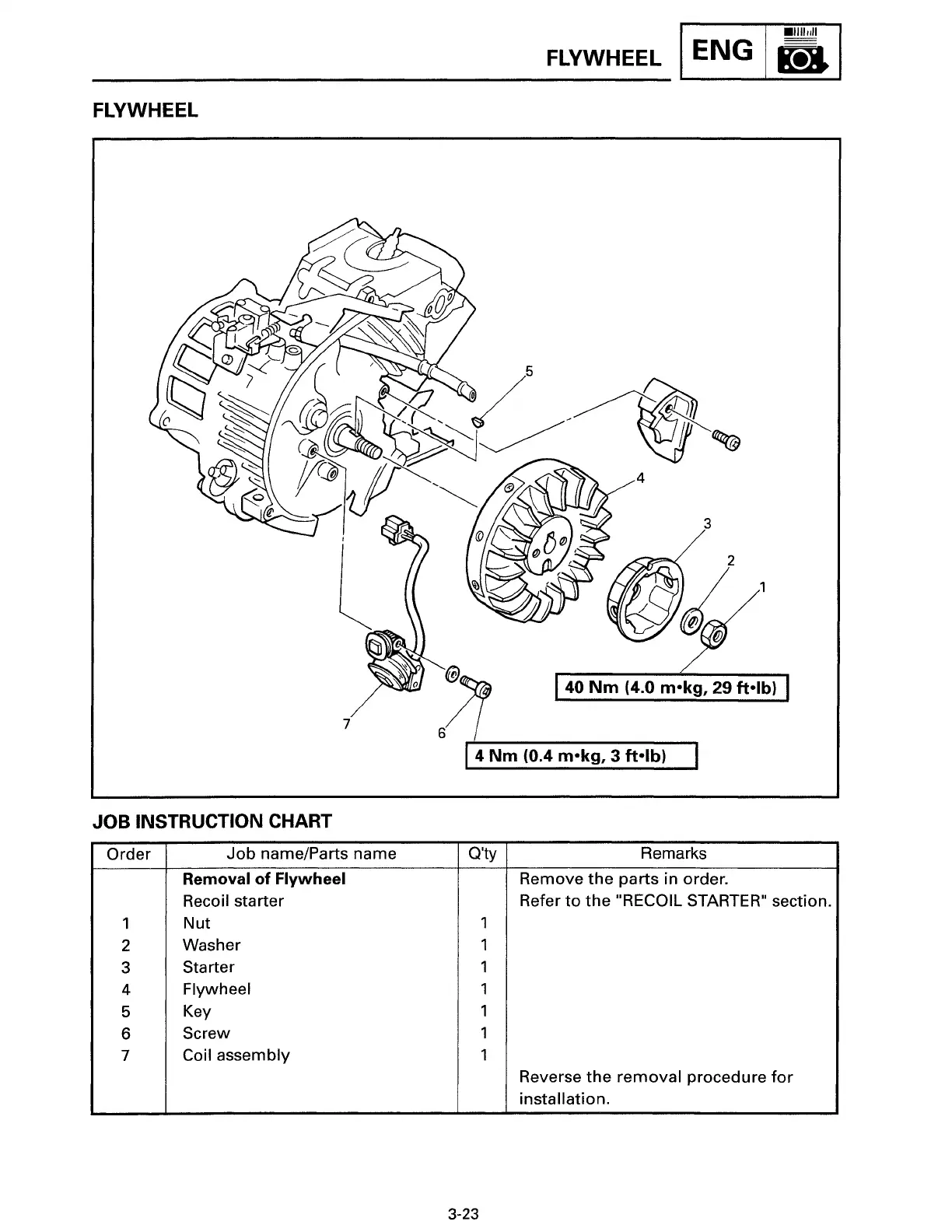

Yamaha EF1000 - Flywheel; Job Instruction Chart

FLYWHEEL
ENG
FLYWHEEL
3
7
6~
I 4 Nm {0.4 m•kg, 3 ft•lb)
JOB INSTRUCTION CHART
Order
Job name/Parts name
Q'ty Remarks
Removal of Flywheel
Remove the parts in order.
Recoil starter
Refer
to the "RECOIL STARTER" section.
1
Nut
1
2
Washer 1
3
Starter 1
4
Flywheel 1
5
Key 1
6
Screw
1
7
Coil assembly
1
Reverse the removal procedure for
installation.
3-23
