GENERATOR SYSTEM I ELEC I u I
4-9

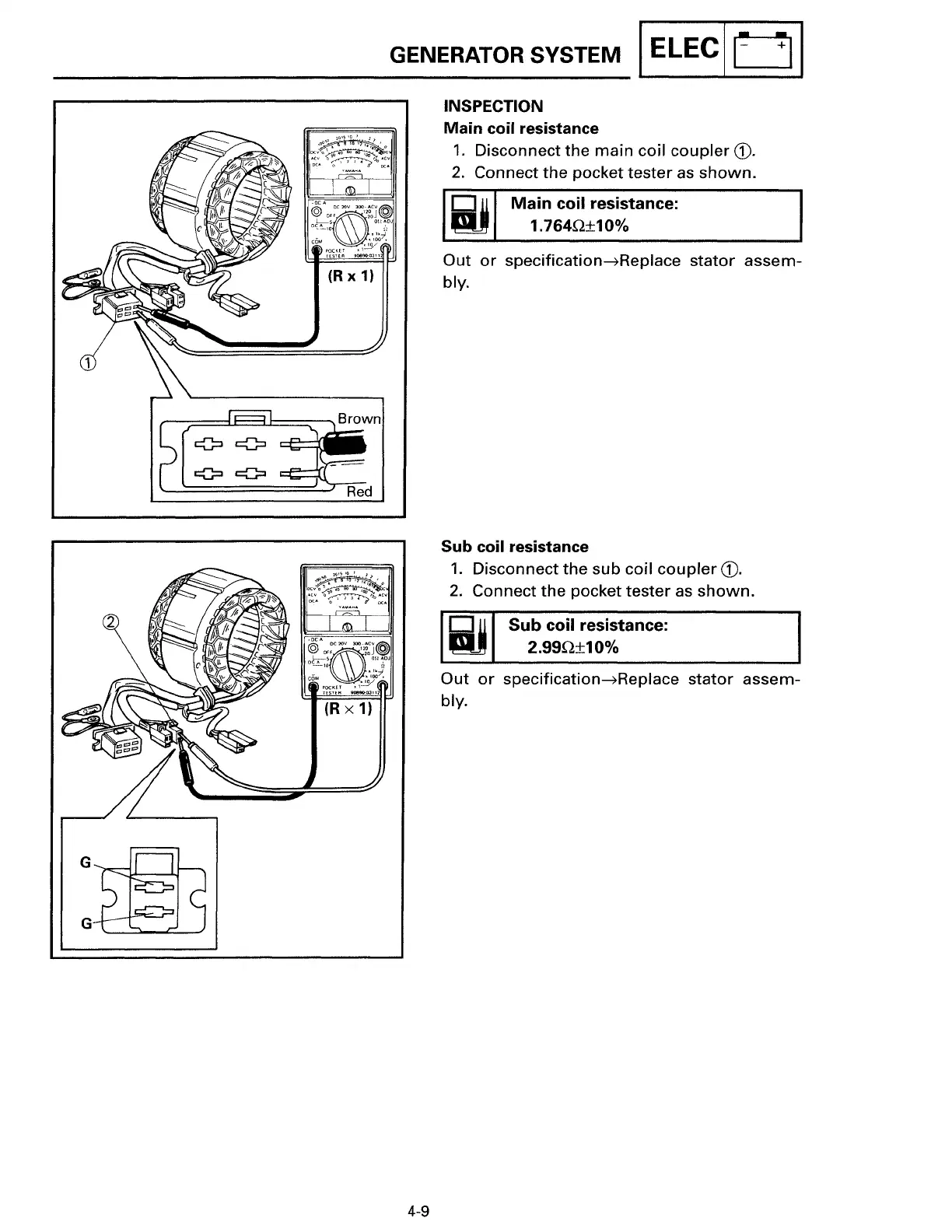

INSPECTION
Main coil resistance
1. Disconnect the main coil coupler G).
2. Connect the pocket tester as shown.
Main coil resistance:
1.7640±10%
Out or specification~Replace stator assem-
bly.
Sub coil resistance
1. Disconnect the sub coil coupler G).
2. Connect the pocket tester as shown.
Sub coil resistance:
2.990±10%
Out or specification~Replace stator assem-
bly.
