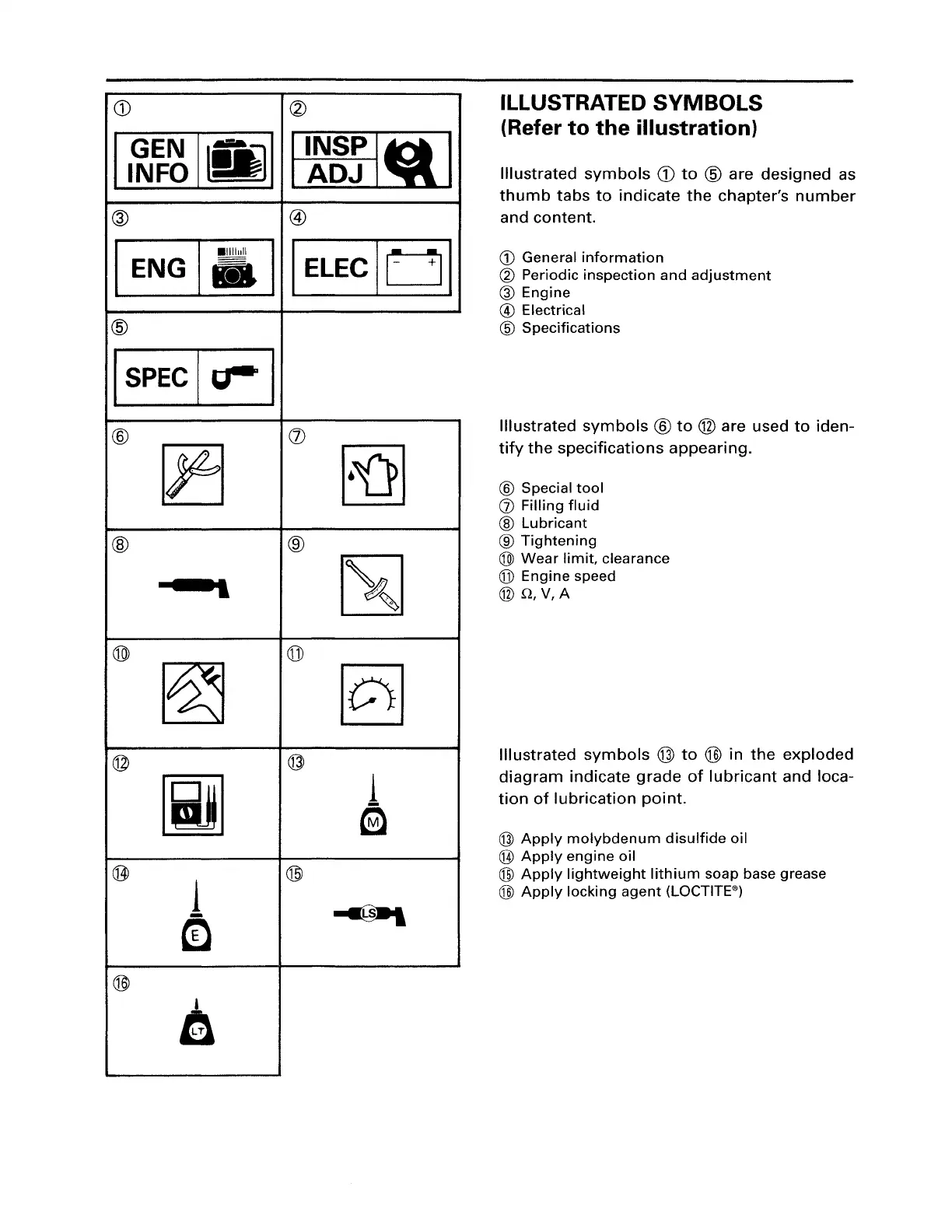

ILLUSTRATED SYMBOLS
(Refer to the illustration)
Illustrated symbols CD to @ are designed as
thumb tabs to indicate the chapter's number
and content.
<D General information
~ Periodic inspection and adjustment
®Engine
® Electrical
® Specifications
Illustrated symbols @to @ are used to iden-
tify the specifications appearing.
® Special tool
(]) Filling fluid
@ Lubricant
® Tightening
@ Wear limit, clearance
(j]) Engine speed
@Q,V,A
Illustrated symbols @ to @ in the exploded
diagram indicate grade of lubricant and loca-
tion of lubrication point.
@ Apply molybdenum disulfide oil
@ Apply engine oil
@ Apply lightweight lithium soap base grease
@ Apply locking agent (LOCTITE®)
