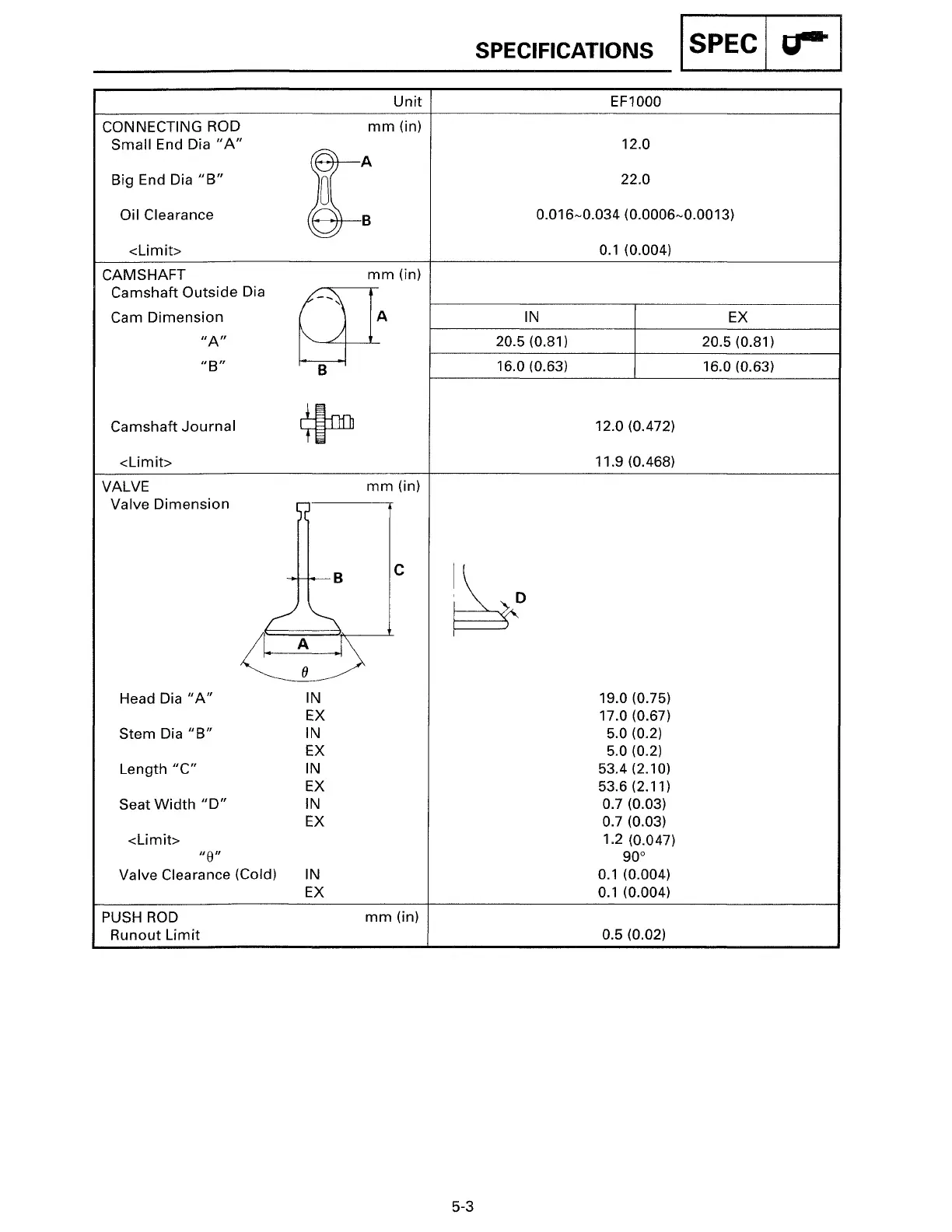

Yamaha EF1000 - Page 72

CONNECTING ROD
Small End Dia "A"
Big End Dia "B"
Oil Clearance
<Limit>
CAMSHAFT
Camshaft
Outside Dia
Cam
Dimension
II A"
JIB"
Camshaft Journal
<Limit>
VALVE
Valve
Dimension
Head Dia "A"
Stem Dia "B"
Length "C"
Seat Width "D"
<Limit>
11811
Valve Clearance (Cold)
PUSH
ROD
Runout Limit
Unit
mm (in)
mm (in)
gJA
8
mm (in)
L J
c
IN
EX
IN
EX
IN
EX
IN
EX
IN
EX
mm (in)
SPECIFICATIONS I SPEC I rr-1
EF1000
12.0
22.0
0.016-0.034 (0.0006-0.0013)
0.1 (0.004)
IN
EX
20.5 (0.81) 20.5 (0.81)
16.0 (0.63)
16.0 (0.63)
12.0 (0.472)
11.9 (0.468)
~D
19.0 (0.75)
17.0 (0.67)
5.0 (0.2)
5.0 (0.2)
53.4 (2.10)
53.6 (2.11)
0.7 (0.03)
0.7 (0.03)
1.2 (0.047)
goo
0.1 (0.004)
0.1 (0.004)
0.5 (0.02)
5-3
