Yamaha F175A - Component Identification Diagram

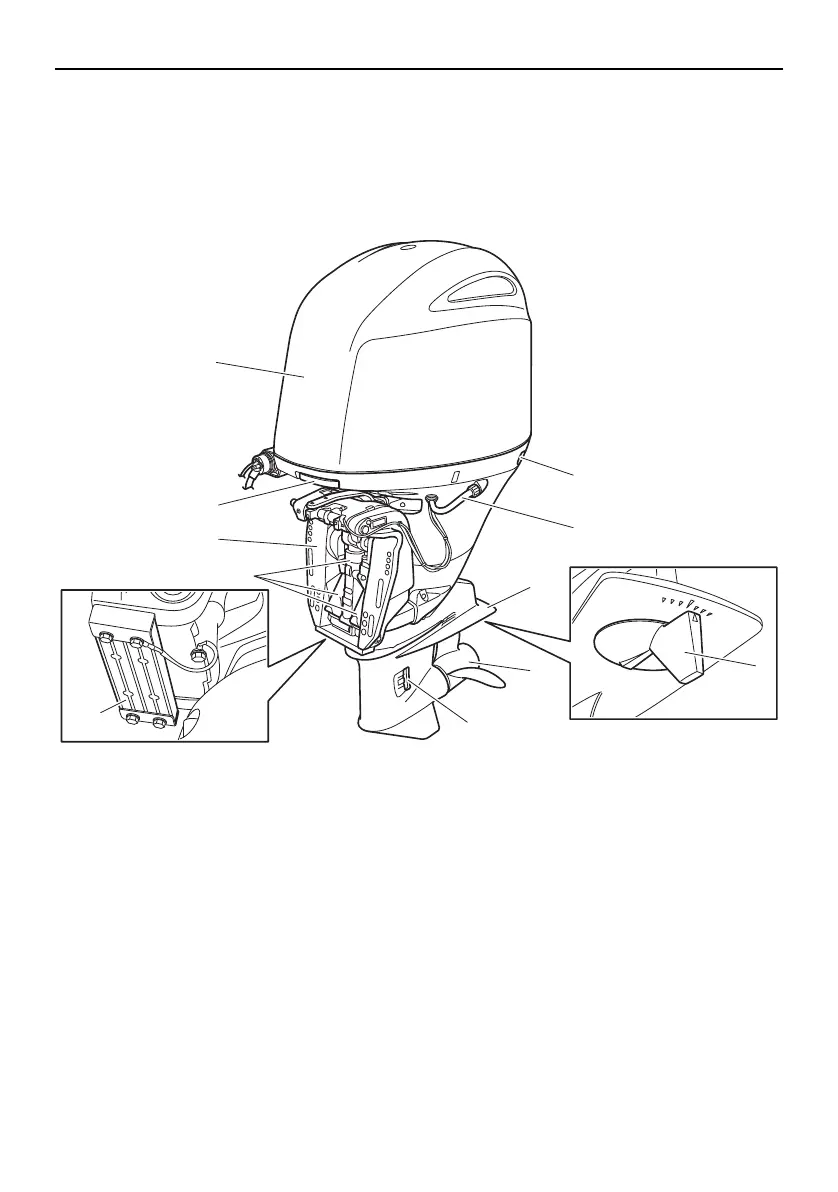

Components
18
EMU2579Z
Components diagram
TIP:
* May not be exactly as shown; also may not be included as standard equipment on all models
(order from dealer).
6
4
3
10
2
1
7
9
2
5
8
ZMU07738
1. Top cowling
2. Cowling lock lever
3. Clamp bracket
4. Power trim and tilt unit
5. Anode
6. Flushing device
7. Anti-cavitation plate
8. Trim tab (anode)
9. Propeller*
10.Cooling water inlet
