Instruments and indicators
38
EMU36111
Start-up checks
Place the remote control lever in neutral and
turn the main switch to “ ” (on). After all the
displays come on and the total hour display
comes on, the gauge will change to normal
operation. If the buzzer sounds and the water
separator-alert indicator blinks, consult your
Yamaha dealer immediately.
TIP:
To stop the buzzer, press the “ ” (set) or
“ ” (mode) button.
EMU38623
Yamaha Security System information
Turn the main switch to the “ ” (on) position,
the currently selected Yamaha Security Sys-
tem mode (Lock / Unlock) will show on the
display.
Unlock mode
Lock mode
1. Set button
2. Mode button

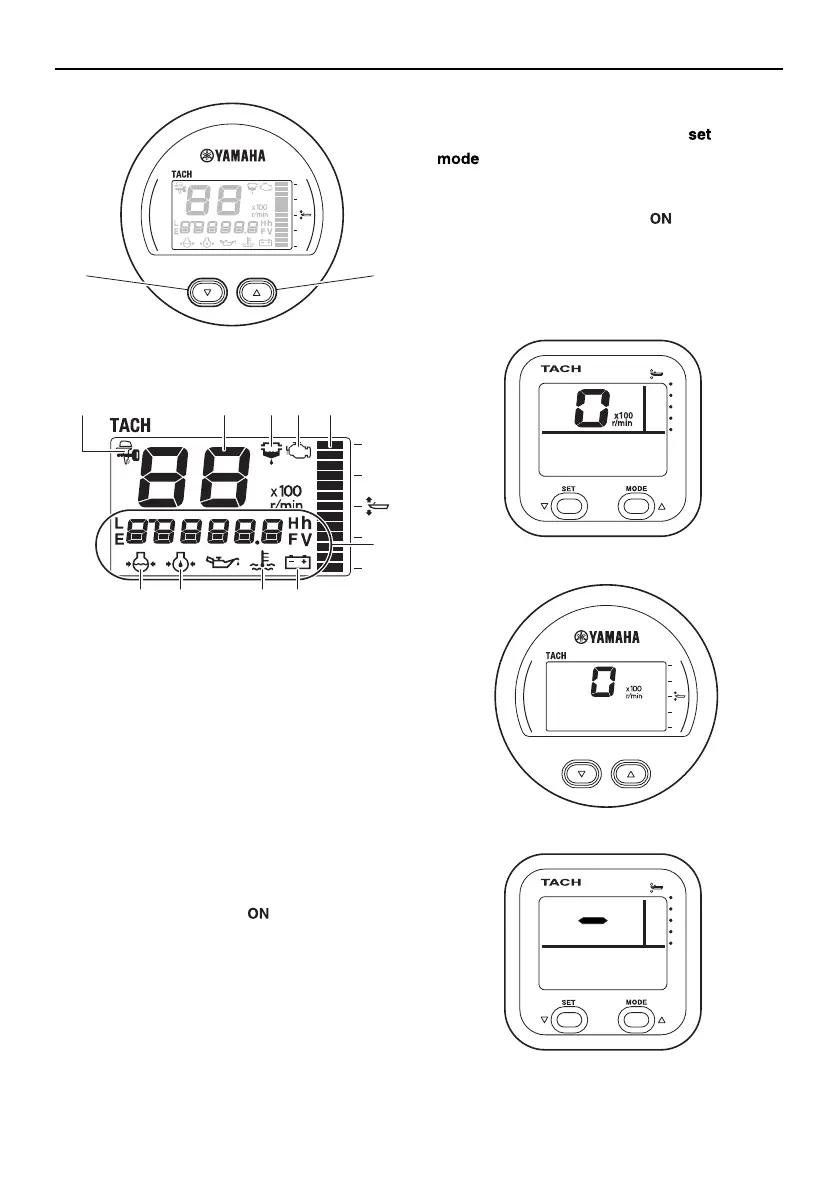

1. Tachometer
2. Water detection-alert indicator
3. Engine trouble alert/maintenance indicator
4. Trim meter
5. Multifunction display
6. Battery voltage
7. Cooling water/engine temperature
8. Oil pressure (4-stroke models)
9. Cooling water pressure
10.YAMAHA SECURITY SYSTEM indicator
