Yamaha F175A - Remote Control Box

Components
22
LOCK
When the lock button on the remote control
transmitter is pressed briefly, the beeper
sounds once. This indicates the lock mode is
selected and the engine cannot be started.
The lock mode is selected only when the
main switch is in the “ ” (off) position. The
engine cranks but cannot be started while the
Yamaha Security System is in the lock mode.
UNLOCK
When the unlock button on the remote con-
trol transmitter is pressed briefly, the beeper
sounds twice. This indicates the unlock mode
is selected and the engine can be started.
EMU26182

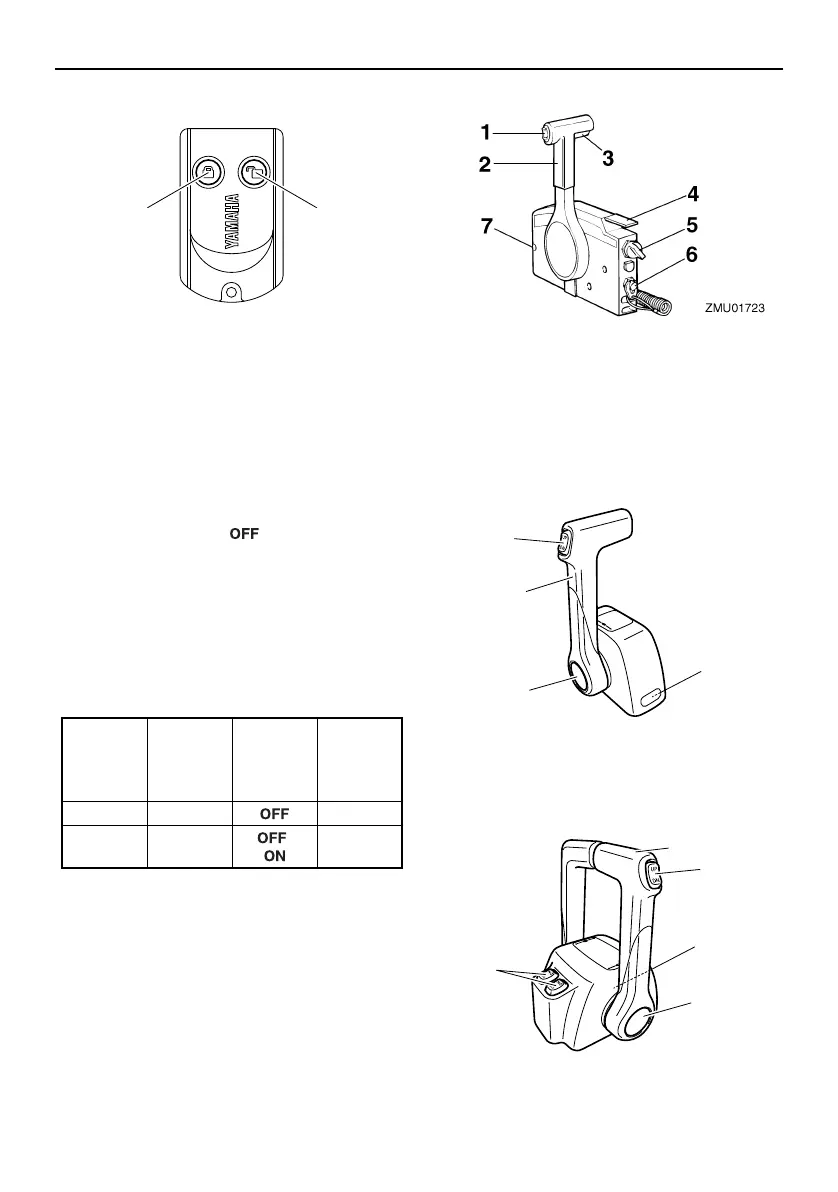

Remote control box
The remote control lever actuates both the
shifter and the throttle. The electrical switch-
es are mounted on the remote control box.
1. Lock button
2. Unlock button
Yamaha
Security
System
mode
Number
of beeps
Main
switch
Engine
can be
started
Lock 1 beep “ ” NO
Unlock 2 beeps
“”/
“”
YES
12
ZMU06456
1. Power trim and tilt switch
2. Remote control lever
3. Neutral interlock trigger
4. Neutral throttle lever
5. Main switch
6. Engine shut-off switch
7. Throttle friction adjuster
1. Power trim and tilt switch
2. Remote control lever
3. Free accelerator
4. Throttle friction adjuster
1. Remote control lever
2
1
3
4
ZMU04572
2
3
2
1
4
ZMU04569
