Yamaha F175A - Procedure for Tilting down

Operation
65
4. Once the outboard motor is supported
with the tilt support lever, press the pow-
er trim and tilt switch “ ” (down) to re-
tract the trim rods. NOTICE: Make sure
that the trim rods retracts completely
during mooring. This protects the rods
from marine growth and corrosion,
which could damage the power trim
and tilt mechanism.
[ECM00253]
EMU42702
Procedure for tilting down
1. Push the power trim and tilt switch “ ”
(up) until the outboard motor is support-
ed by the tilt rod and the tilt support lever
becomes free.
2. Release the tilt support lever.
3. Push the power trim and tilt switch “ ”
(down) to lower the outboard motor to
the desired position.

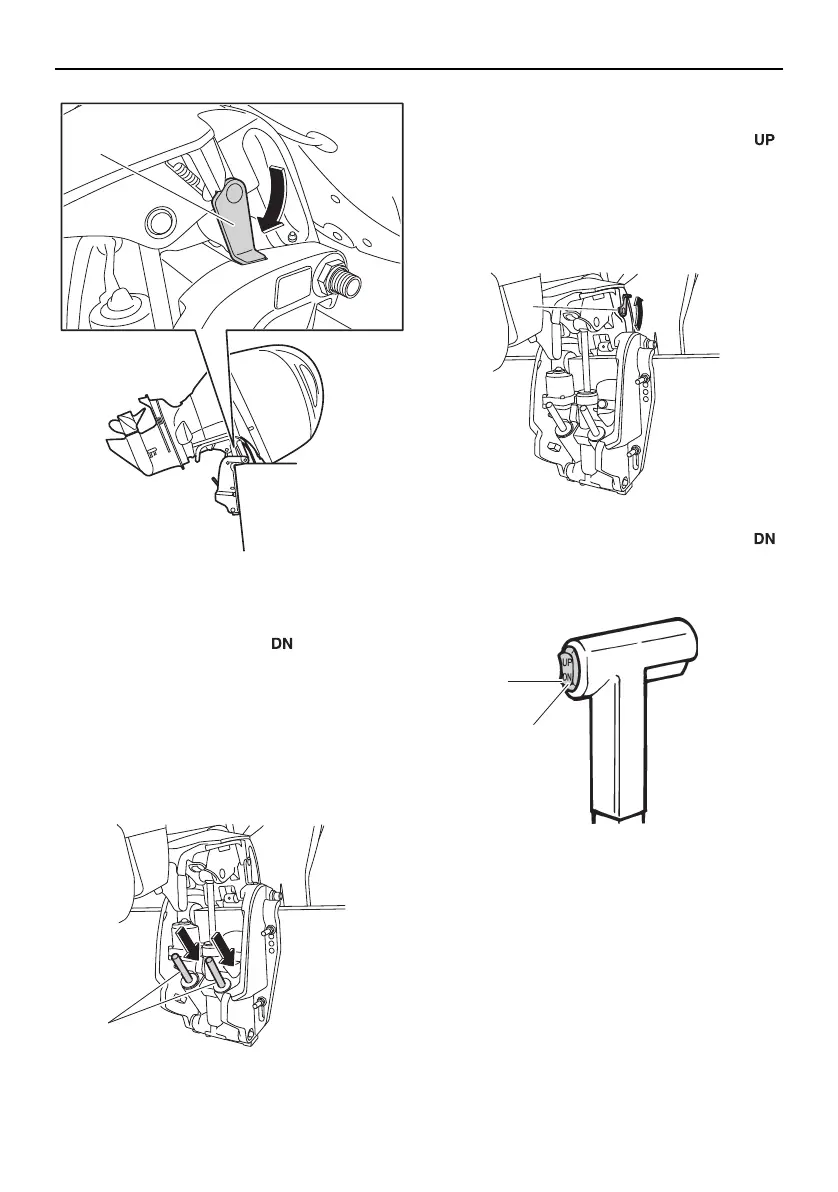

1. Tilt support lever
1. Trim rod
1
ZMU07744
1
ZMU07764
1. Tilt support lever
1. Power trim and tilt switch
1
ZMU07770
