Yamaha F200A - Clamp Bracket Dimensions

SPEC
Specifications
23
60L3D1X

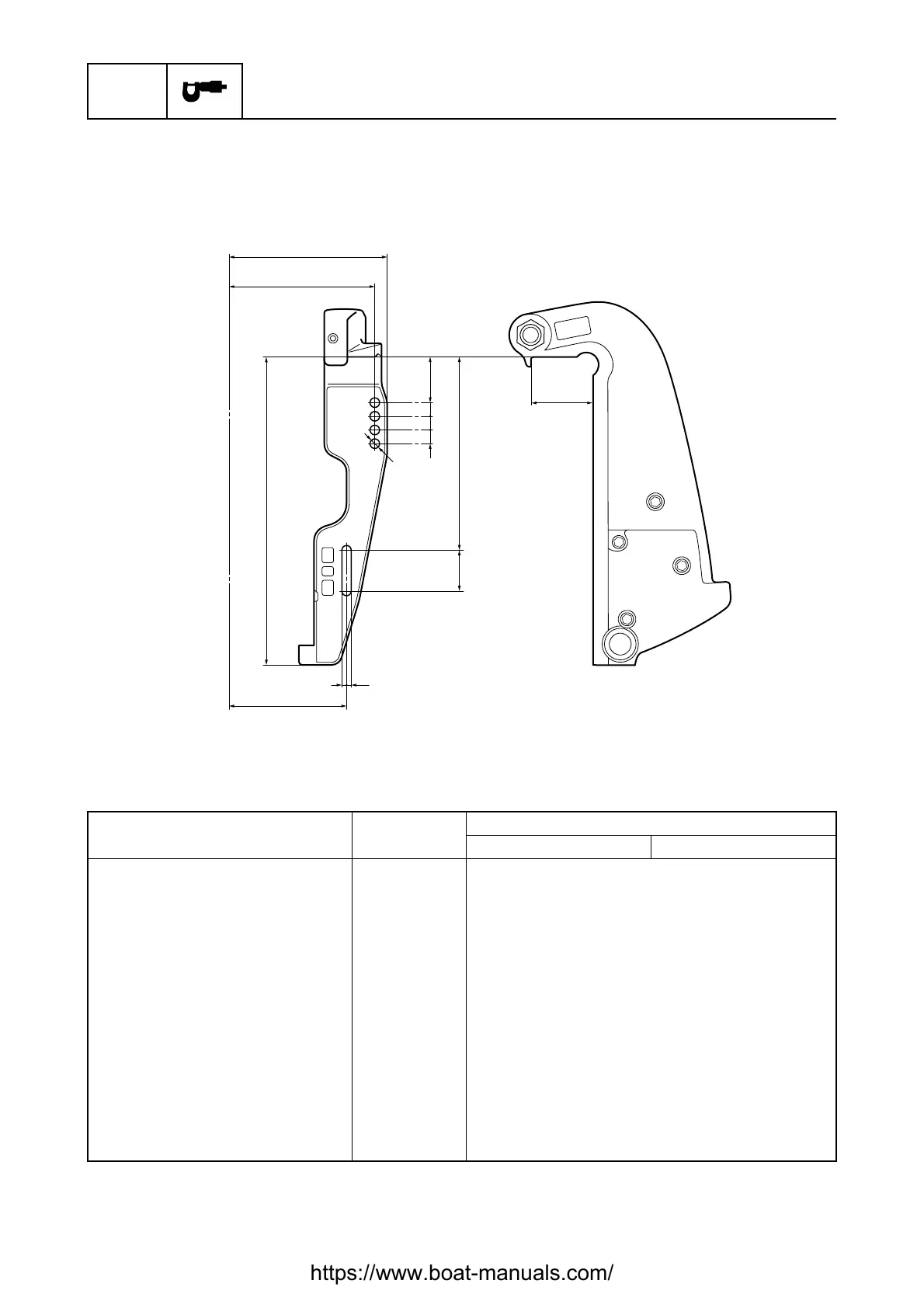

Clamp bracket
Symbol Unit
Model
F200AET FL200AET
B1 mm (in) 125 (4.9)
B2 mm (in) 254 (10.0)
B3 mm (in) 163 (6.4)
B4 mm (in) 51 (2.0)
B5 mm (in) 180 (7.1)
B6 mm (in) 411 (16.2)
B7 mm (in) —
B8 mm (in) —
B9 mm (in) 19 (0.7)
C2 mm (in) —
C3 mm (in) 79 (3.1)
D1 mm (in) 13 (0.5)
D2 mm (in) 56 (2.2)
S60L2140
B5
B6
B1
D1
D2
B2
C3
D1
B4
B9
B9
B9
B3
