Replacing fuse
If a fuse has blown, open the fuse holder and
remove the fuse with a fuse puller. Replace
it with a spare one of the proper amperage.
WARNING
EWM00631
Substituting an incorrect fuse or a piece
of wire could allow excessive current
flow. This could cause electric system
damage and a fire hazard.
Consult your Yamaha dealer if the new fuse
immediately blows again.
EMU29525
Power trim and tilt will not operate
If the engine cannot be tilted up or down with
the power trim and tilt because of a dis-
charged battery or a failure with the power
trim and tilt unit, the engine can be tilted
manually.
1. Loosen the manual valve screw by turn-

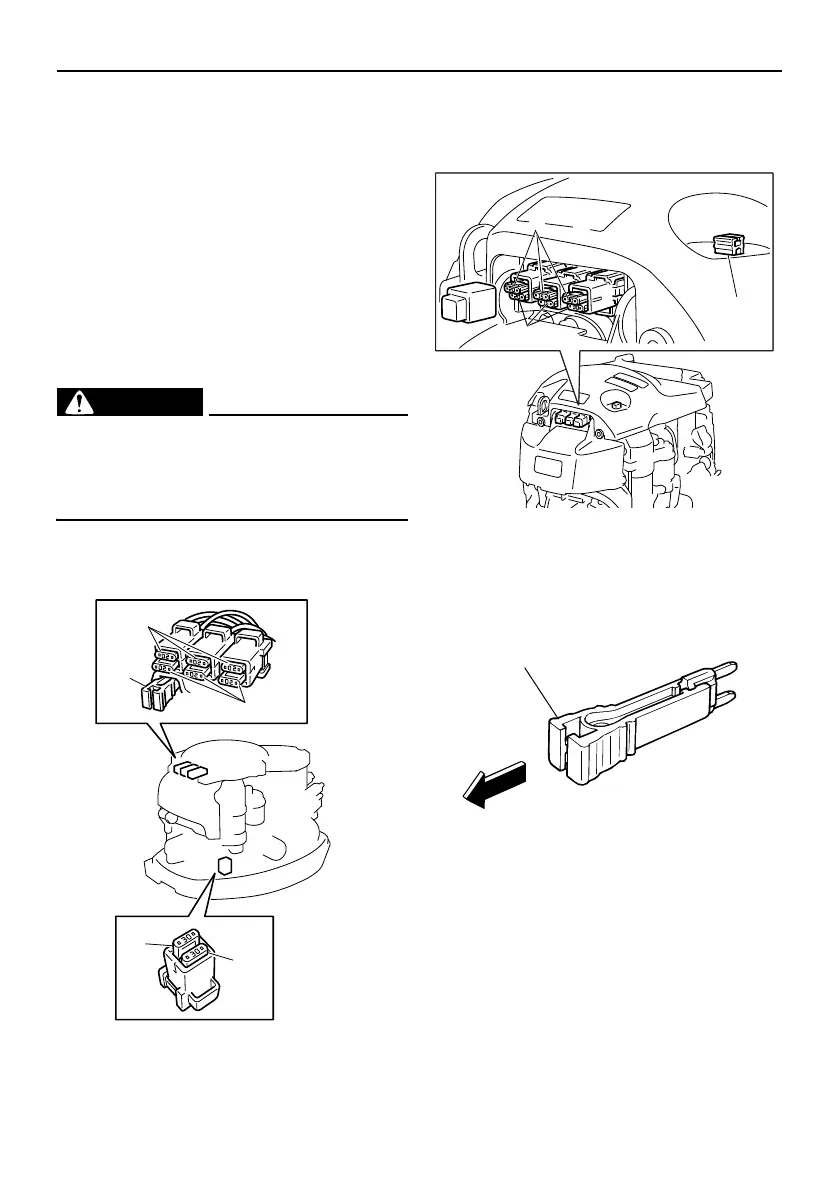

1. Fuse (20 A  3, 30 A)
3
2
1
1
2
ZMU05099
2. Spare fuse (20 A  3, 30 A)
3. Fuse puller
1. Fuse (15 A, 20 A, 30 A)
2. Spare fuse (15 A, 20 A, 30 A)
3. Fuse puller
