level mark and lower level mark. Consult
your Yamaha dealer if the oil level is out
of specified level or if it appears milky or
dirty.
EMU27153
Engine
 Check the engine and engine mounting.
 Look for loose or damaged fasteners.
 Check the propeller for damage.
 Check for engine oil leaks.
EMU36493
Flushing device
Check that the flushing device’s garden hose
connector is securely screwed on to the fit-
ting on the bottom cowling. NOTICE: If the
garden hose connector is not properly
connected, cooling water can leak out
and the engine can overheat during oper-
ation.
[ECM01801]
EMU36954
Install top cowling
1. Be sure that the cowling lock lever is re-
leased.
2. Be sure that the rubber seal is seated all
the way around the top cowling.
3. Place the top cowling on the bottom
cowling.
4. Check to be sure the rubber seal is seat-
ed correctly between the top cowling

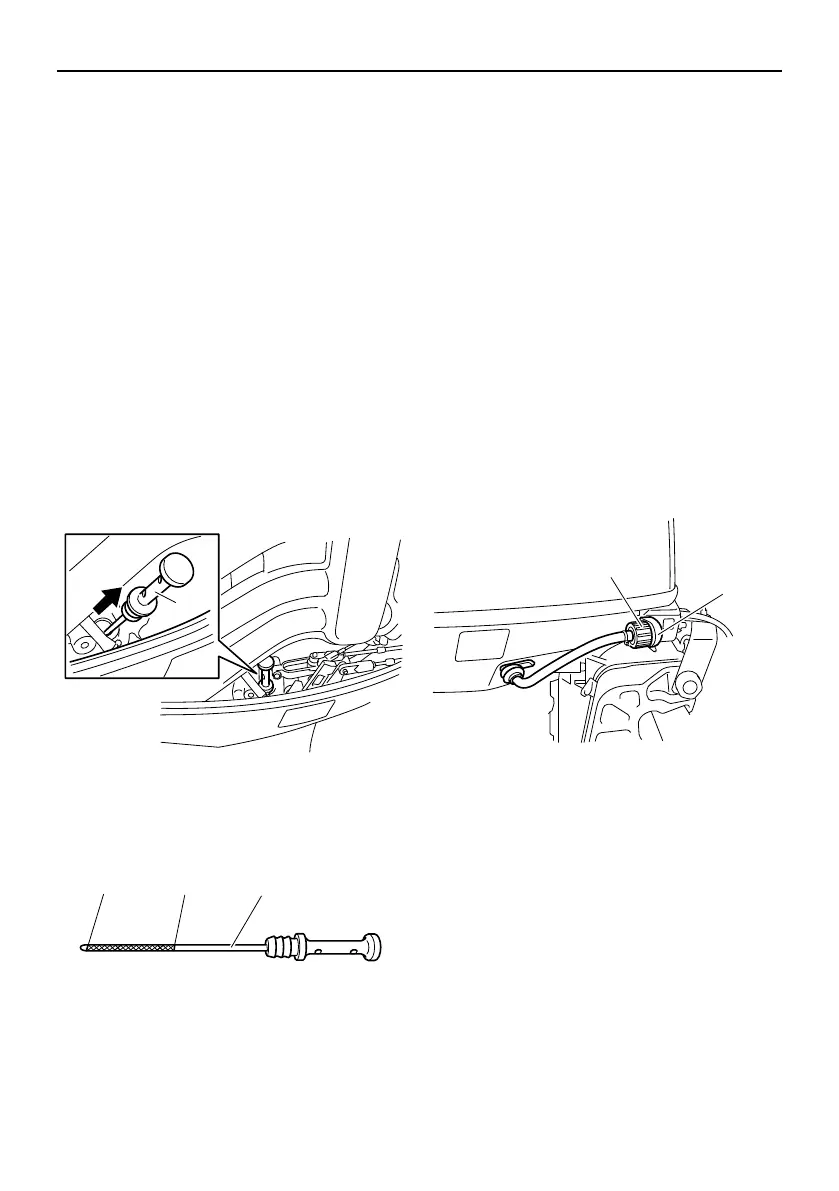

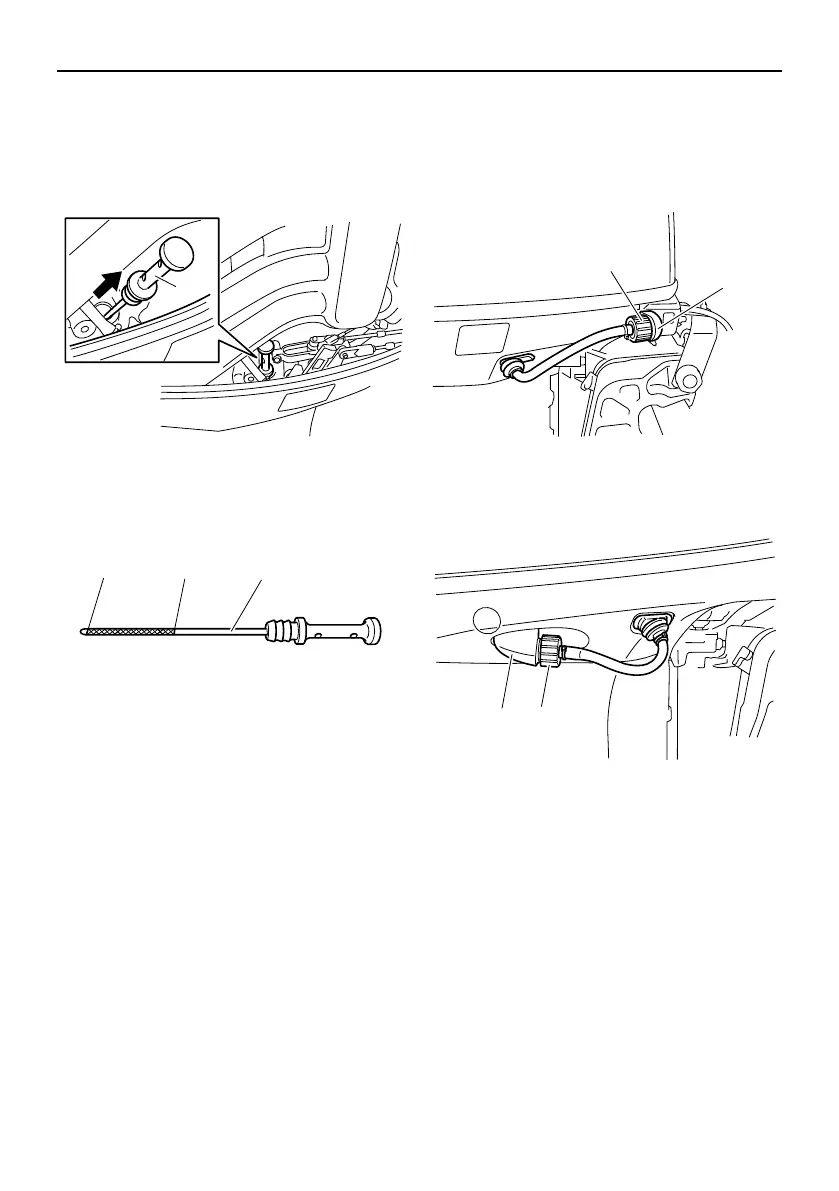

1. Oil dipstick
1. Lower level mark
2. Oil dipstick
3. Upper level mark
1
ZMU05089
132
ZMU05091
1. Fitting
2. Flushing device
1. Fitting
2. Flushing device
2
1
ZMU06056
1
2
ZMU07080
