Components
25
EMU26091
Main switch

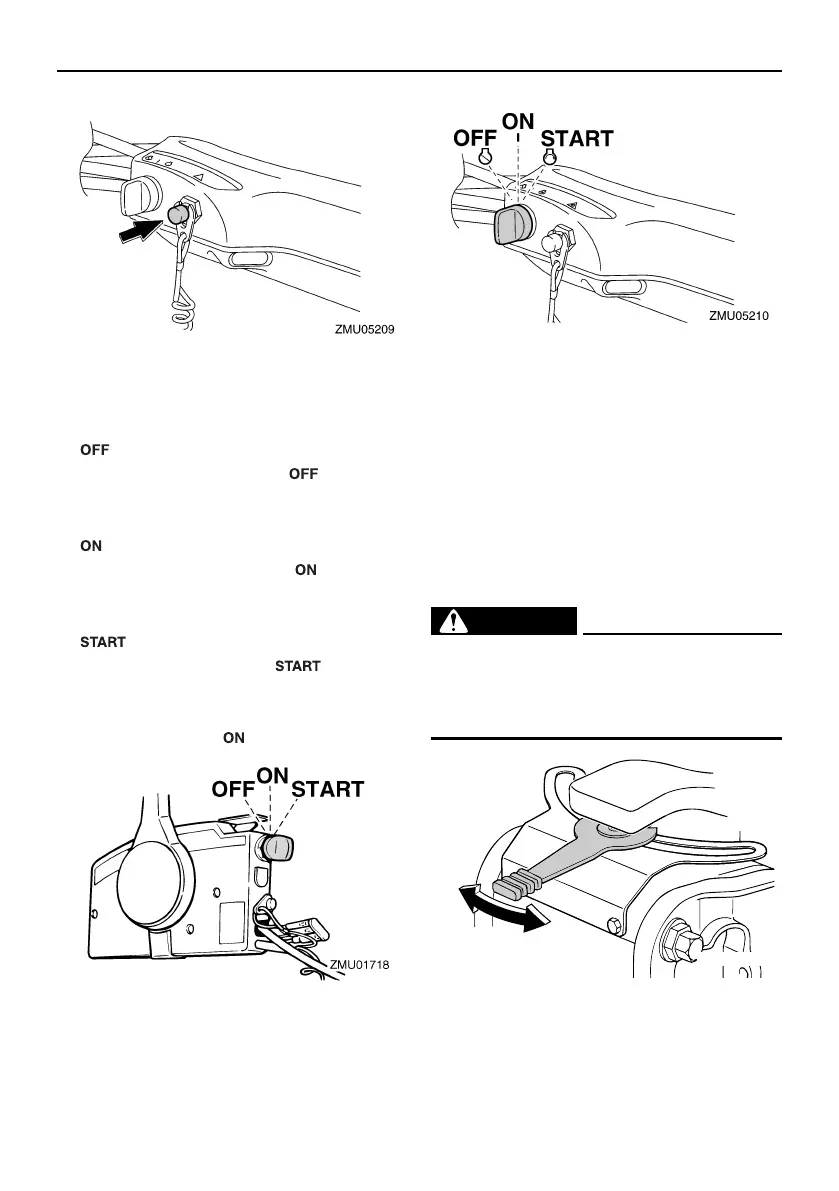

The main switch controls the ignition system;
its operation is described below.
“” (off)
With the main switch in the “ ” (off) posi-
tion, the electrical circuits are off, and the key
can be removed.
“” (on)
With the main switch in the “ ” (on) posi-
tion, the electrical circuits are on, and the key
cannot be removed.
“” (start)
With the main switch in the “ ” (start) po-
sition, the starter motor turns to start the en-
gine. When the key is released, it returns
automatically to the “ ” (on) position.
EMU31432
Steering friction adjuster
A friction device provides adjustable resis-
tance to the steering mechanism, and can be
set according to operator preference. An ad-
juster lever is located on the bottom of the
tiller handle bracket.
To increase resistance, turn the lever to the
port side “A”.
To decrease resistance, turn the lever to the
starboard side “B”.
EWM00040
Do not overtighten the friction adjuster. If
there is too much resistance, it could be
difficult to steer, which could result in an
accident.
If the resistance does not increase even
when the lever is turned to the port side “A”,
make sure that the nut is tightened to the
specified torque.
