Components
22
EMU26201

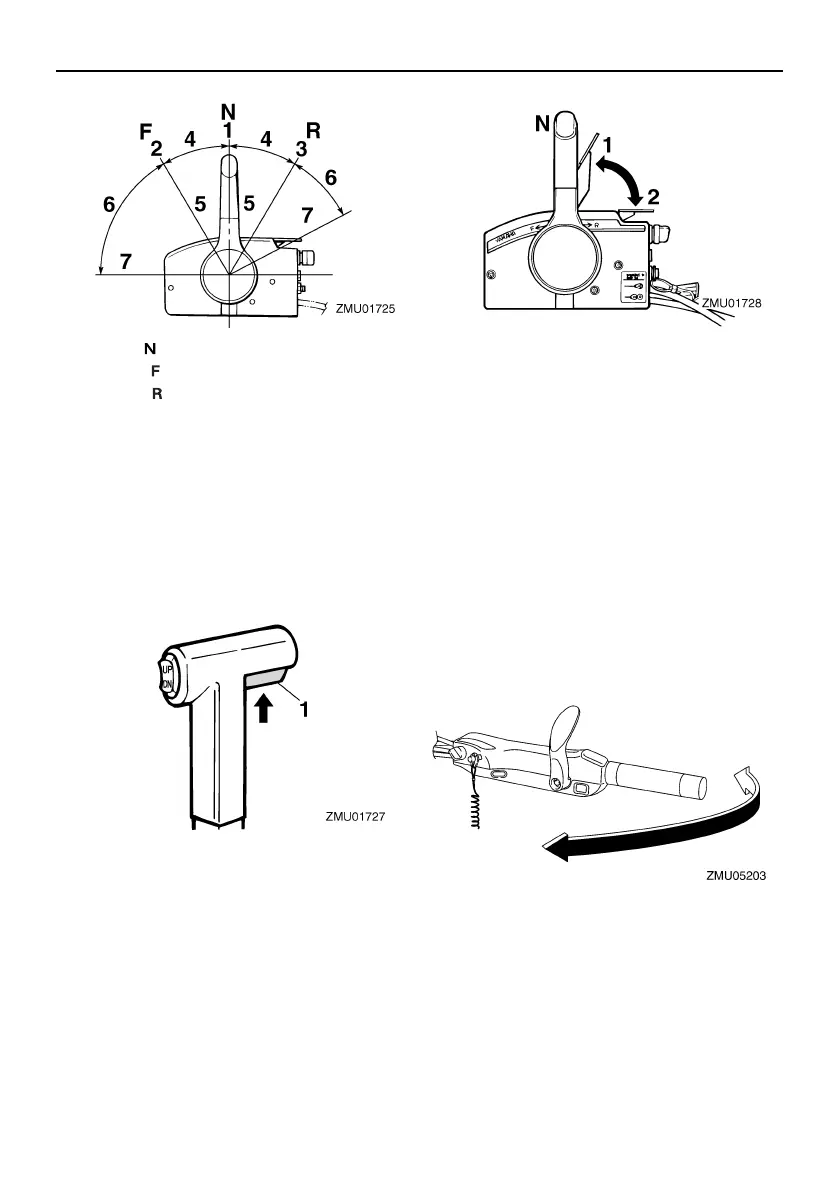

Neutral interlock trigger
To shift out of neutral, first pull the neutral in-
terlock trigger up.
EMU26212
Neutral throttle lever
To open the throttle without shifting into ei-
ther forward or reverse, put the remote con-
trol lever in the neutral position and lift the
neutral throttle lever.
The neutral throttle lever will operate only
when the remote control lever is in neutral.
The remote control lever will operate only
when the neutral throttle lever is in the closed
position.
EMU25913
Tiller handle
To change direction, move the tiller handle to
the left or right as necessary.
EMU25924
Gear shift lever
Move the gear shift lever forward to engage
the forward gear or rearward to engage the
reverse gear.
1. Neutral “ ”
2. Forward “ ”
3. Reverse “ ”
4. Shift
5. Fully closed
6. Throttle
7. Fully open
1. Neutral interlock trigger
1. Fully open
2. Fully closed
