Instruments and indicators
33
EMU26583
Overheat-alert indicator
If the engine temperature rises too high, the
alert indicator will start to blink. For further in-
formation on reading the indicator, see page
44.
ECM00052
Do not continue to run the engine if the
overheat-alert indicator is on. Serious en-
gine damage will occur.
EMU26602
Digital speedometer
This gauge shows the boat speed and other
information.
All segments of the display will light momen-
tarily after the main switch is turned on and
will return to normal thereafter.
EMU36061
Speedometer
The speedometer displays km/h, mph, or
knots, according to operator preference. Se-
lect the desired units of measurement by set-
ting the selector switch on the back of the
gauge. See the illustration for settings.
EMU26713
Fuel gauge

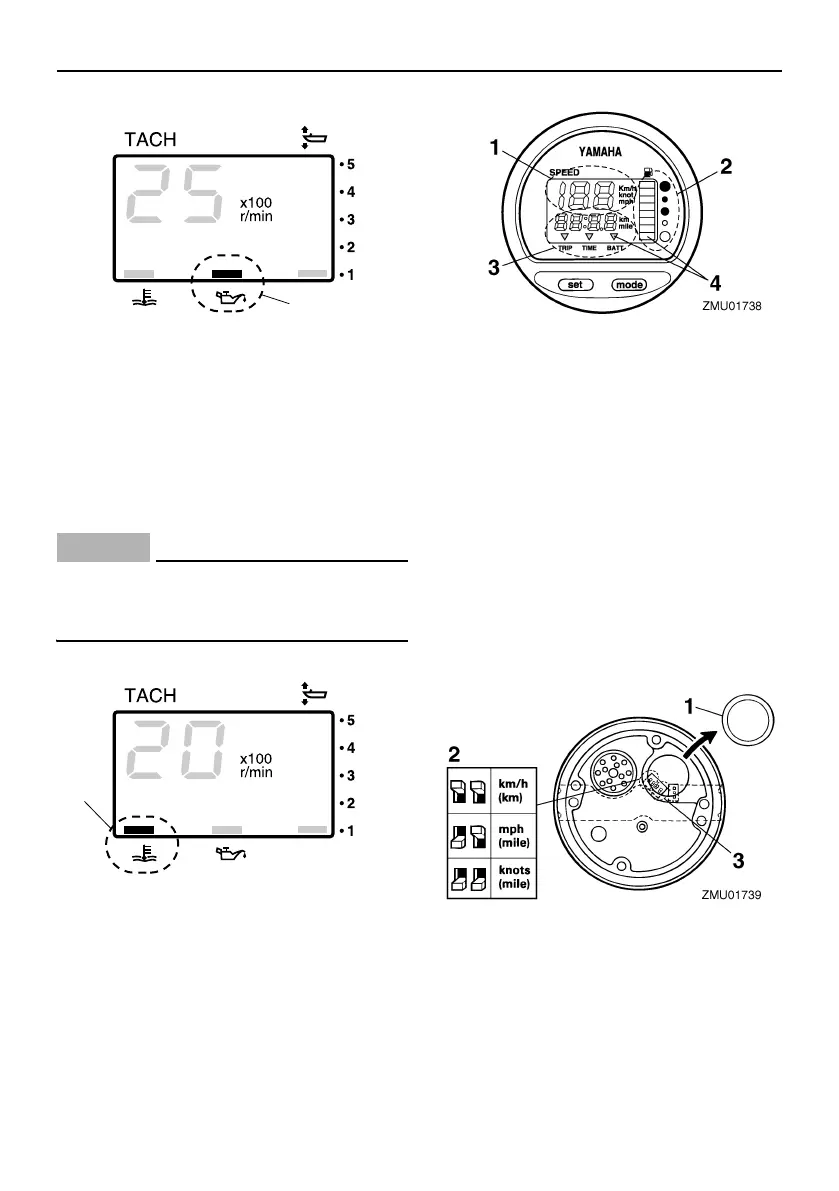

Eight segments indicate the fuel level. When
1. Low oil pressure-alert indicator
1. Overheat-alert indicator
1. Speedometer
2. Fuel gauge
3. Trip meter/clock/voltmeter
4. Alert indicator(s)
1. Cap
2. Selector switch (for speed unit)
3. Selector switch (for fuel sensor)
