Yamaha Security System lock and
unlock mode
The Yamaha Security System settings are
selected by pressing the lock or unlock but-
ton on the remote control transmitter briefly.
LOCK
When the lock button on the remote control
transmitter is pressed briefly, the beeper
sounds once. This indicates the lock mode is
selected and the engine cannot be started.
The lock mode is selected only when the
main switch is in the “ ” (off) position. The
engine cranks but can not be started while
the Yamaha Security System is on lock
mode.
UNLOCK
When the unlock button on the remote con-
trol transmitter is pressed briefly, the beeper
sounds twice. This indicates the unlock
mode is selected and the engine can be
started.
EMU26181

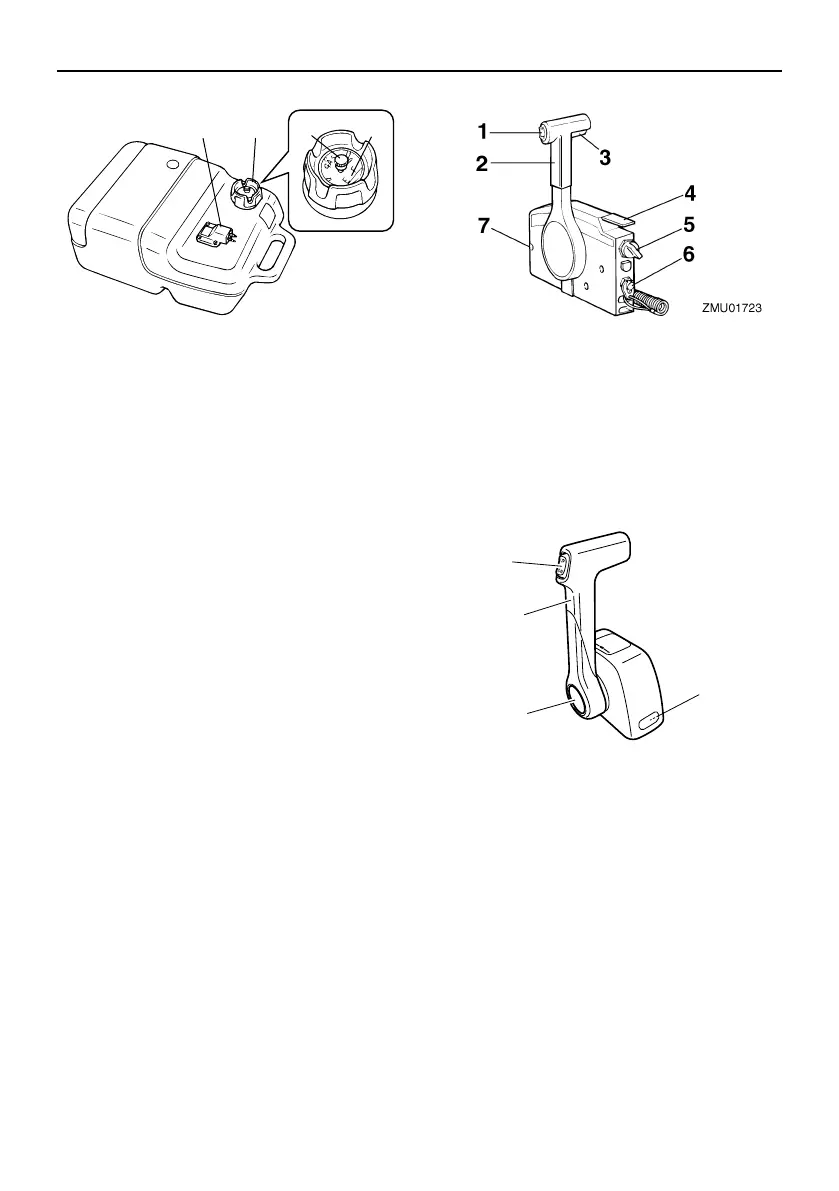

Remote control box
The remote control lever actuates both the
shifter and the throttle. The electrical switch-
es are mounted on the remote control box.
EMU26190
Remote control lever
Moving the lever forward from the neutral po-
sition engages forward gear. Pulling the le-
ver back from neutral engages reverse. The
engine will continue to run at idle until the le-
ver is moved about 35 (a detent can be felt).
Moving the lever farther opens the throttle,
and the engine will begin to accelerate.
1. Lock button
2. Unlock button
12
ZMU06456
Yamaha
Security
System
mode
Number
of beeps
Main
switch
Engine
can be
started
Lock 1 beep
“”
NO
Unlock 2 beeps
“”/“
”
YES

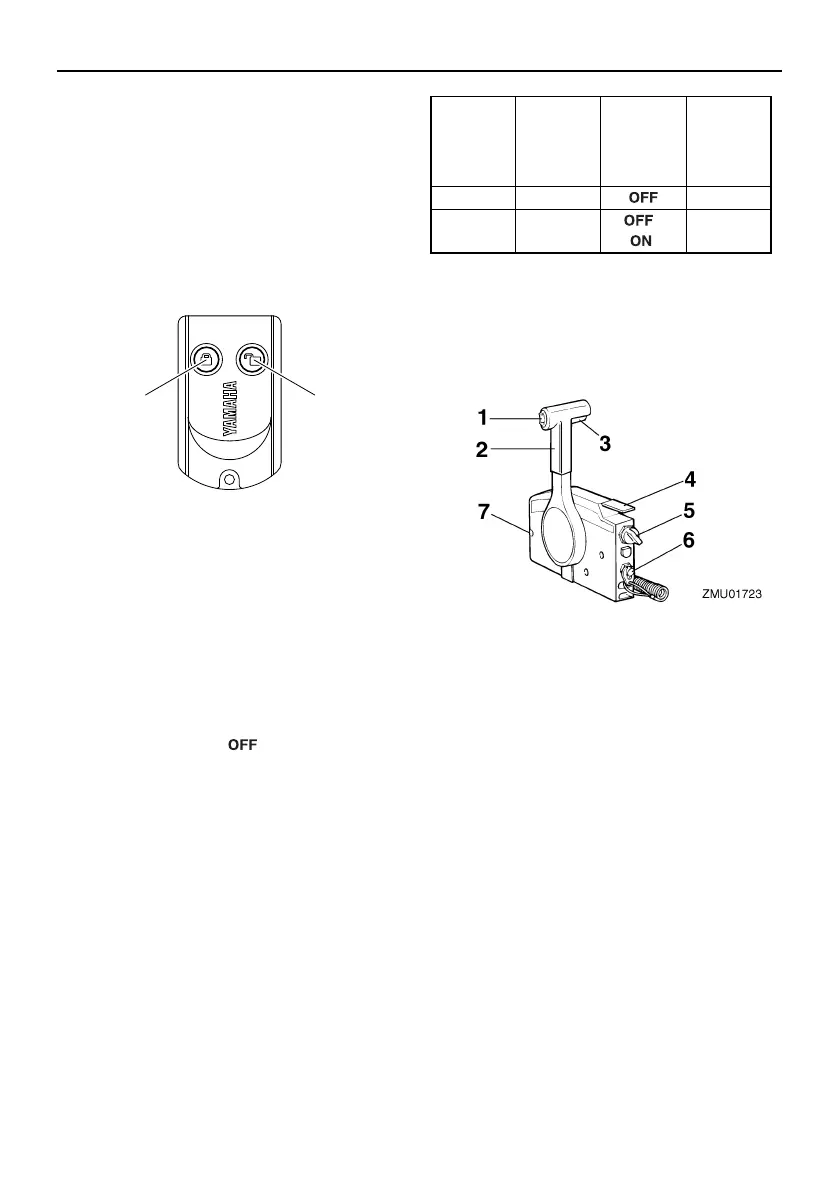

1. Power trim and tilt switch
2. Remote control lever
3. Neutral interlock trigger
4. Neutral throttle lever
5. Main switch
6. Engine shut-off switch
7. Throttle friction adjuster
