MW10
■

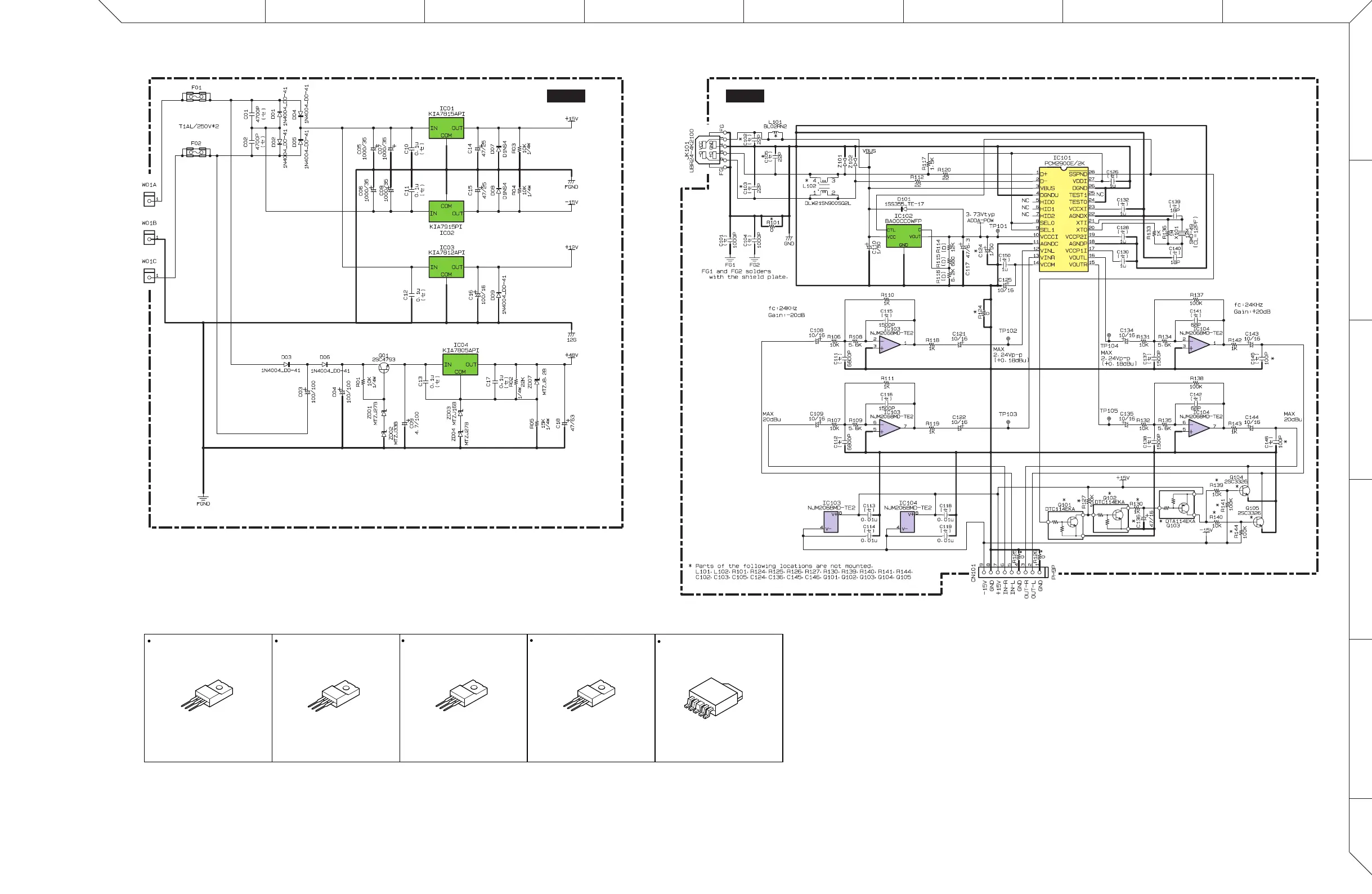

OVERALL CIRCUIT DIAGRAM 4/4 (MAIN 4/4, USB)
28CC1-2001000913
（セ）: Ceramic Capacitor（セラミックコンデンサ）
Note : See parts list for details of circuit board component parts.
（注：シート部品の詳細はパーツリストをご参照下さい。）
<Page 5>
28CC1-2000010510-4
OP AMP
to MAIN 3/4-CN801
<Page 4 D2>
to Power Switch
(Connector Assembly)
OP AMP
USB CONTROLLER
REGULATOR +15V
REGULATOR -15V
REGULATOR
REGULATOR +12V
REGULATOR +48V
BA00CC0WFP-E2 (X7256A00)
REGULATOR 3V to 15V
1: INPUT
2: NC
3: GND
4: OUTPUT1
5: OUTPUT2
6: GND(Fin)
1
6
4
5
2
3
USB: IC102
KIA7915PI(X4931A00)
REGULATOR -15V
1
2
3
1: OUTPUT
2: INPUT
3: COMMON
MAIN: IC02
KIA7815API(X4930A00)
REGULATOR +15V
1
2
3
1: OUTPUT
2: COMMON
3: INPUT
MAIN: IC01
KIA7805API(X4928A00)
REGULATOR +5V
1
2
3
1: OUTPUT
2: COMMON
3: INPUT
MAIN: IC04
KIA7812API(X4153A00)
REGULATOR +12V
1
2
3
1: OUTPUT
2: COMMON
3: INPUT
MAIN: IC03
MAIN 4/4 USB
