Front & Rear Panels
MW10 Owner's Manual
17
English

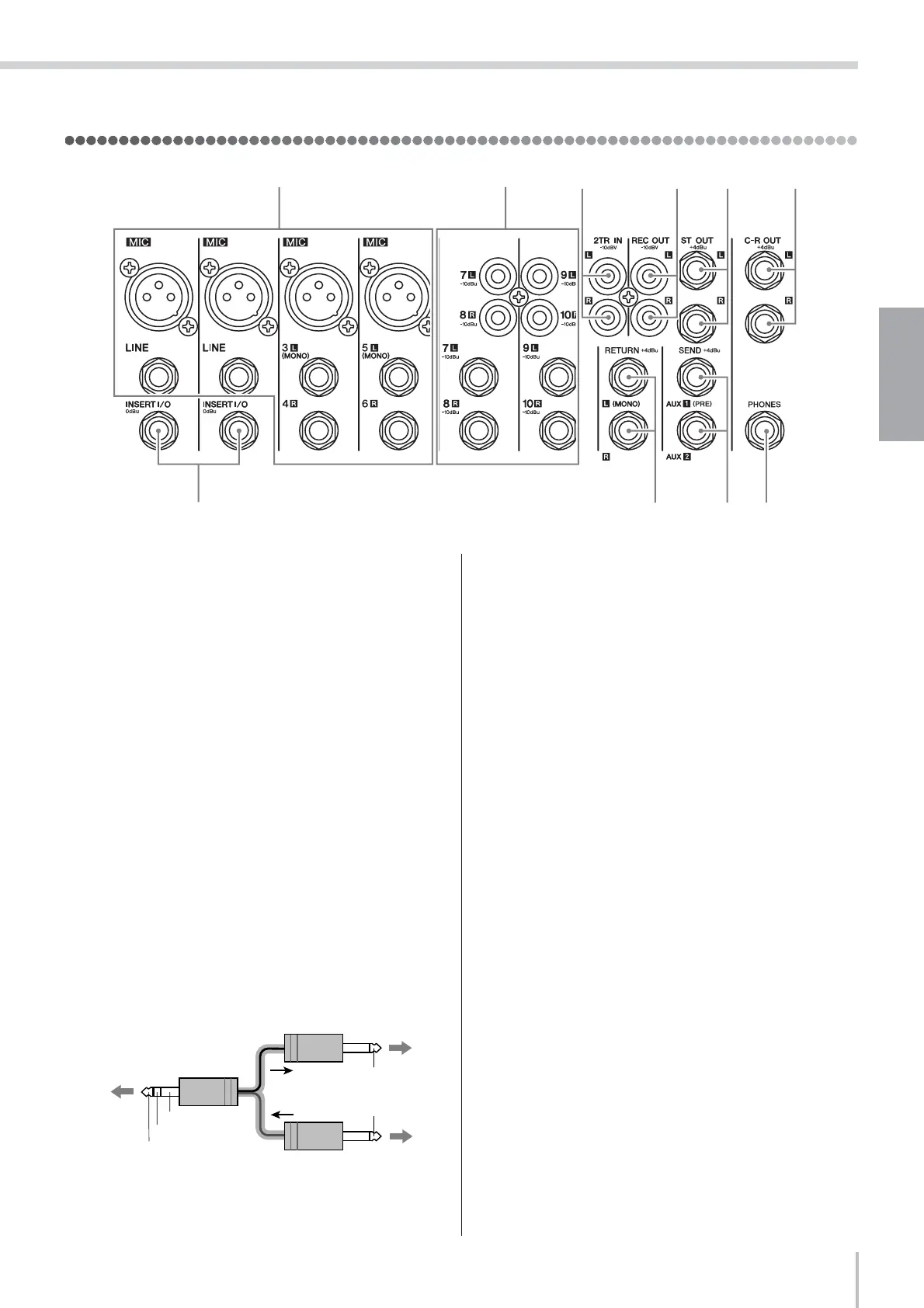

Input/Output Section
1 Channel Input Jacks (CHs 1, 2, 3/4, 5/6)
• MIC jacks
These are balanced XLR-type input jacks (1:Ground;
2:Hot; 3:Cold).
• LINE jacks
These are balanced phone-type input jacks. You can
connect either balanced or unbalanced phone plugs to
these jacks.
n Where an input channel provides both a MIC jack and a
LINE jack, you may use either one of these jacks but you
may not use both at the same time. Please connect to
only one of these jacks on each channel.
2 INSERT I/O Jacks (CHs 1 and 2)
These are unbalanced phone-type input/output jacks.
Each of these jacks is positioned between the equalizer
and Channel LEVEL Control of the corresponding input
channel. These jacks can be used to independently
connect these channels to devices such as graphic
equalizers, compressors, and noise filters. These are
TRS (tip, ring, sleeve) phone jacks that support
bidirectional operation.
n Connection to an INSERT I/O jack requires a special
separately-sold insertion cable such as illustrated
below.
n The signal output from the INSERT I/O jacks is
reverse-phased. This will not be a problem if connecting
the jack to an effector. If using the jack to output to an
external device, however, please be aware of possible
phase conflicts with other signals.
3 Channel Input Jacks (CHs 7/8, 9/10)
Each of these channel pairs can be used to input a
stereo source signal. For each pair, the odd-numbered
channel inputs the L signal, and the even-numbered
channel inputs the R signal.
Each channel offers a choice of two jack types: phone
jack and RCA pin jack. All of these jacks are unbalanced.
n Where a channel provides both phone jacks and RCA
pin jacks, you may use either one of these jacks but you
may not use both at the same time. Please connect to
only of these jacks on each channel.
4 2TR IN Jacks
These are unbalanced RCA-pin input jacks. Use these
jacks when you want to connect a stereo sound source
(CD, DAT, etc.) directly to the mixer for monitoring.
n • You can adjust the signal level using the 2TR IN/USB
control in the Master Control section.
• When a signal is being received both via the 2TR IN
connectors and the USB interface, the received
signals are mixed.
5 REC OUT (L, R) Jacks
These are unbalanced RCA-pin output jacks. These
jacks output the mixed signal whose level is controlled by
the ST Master LEVEL Control. You use these jacks, for
example, to connect to an external recorder.
n These connectors output the same signal that sent to
the computer via the USB interface.
289)
13457
6
To the INSERT I/O jack
To the input jack of the external processor
To the output jack of the external processor
Ring
Sleeve
Tip
Tip: Out
Tip: In
