Yamaha MX400 - Output Specifications; Dimensions

16 Appendix
MX400 User’s Guide
Output Specifications
*1. XLR-type connectors and Phone jacks are balanced (Tip=HOT, Ring=COLD, Sleeve=GND).
*2. Insert phone jacks (TRS) are unbalanced (Tip=out, Ring=in, Sleeve=GND).
*3. Phone jacks are unbalanced.
*4. In these specifications, when dB represents a specific voltage, 0dB is referenced to 775mV RMS, for TAPE SEND dBV represents a specific
voltage, 0dBV is referenced to 1V RMS.
• All specifications subject to change without notice.

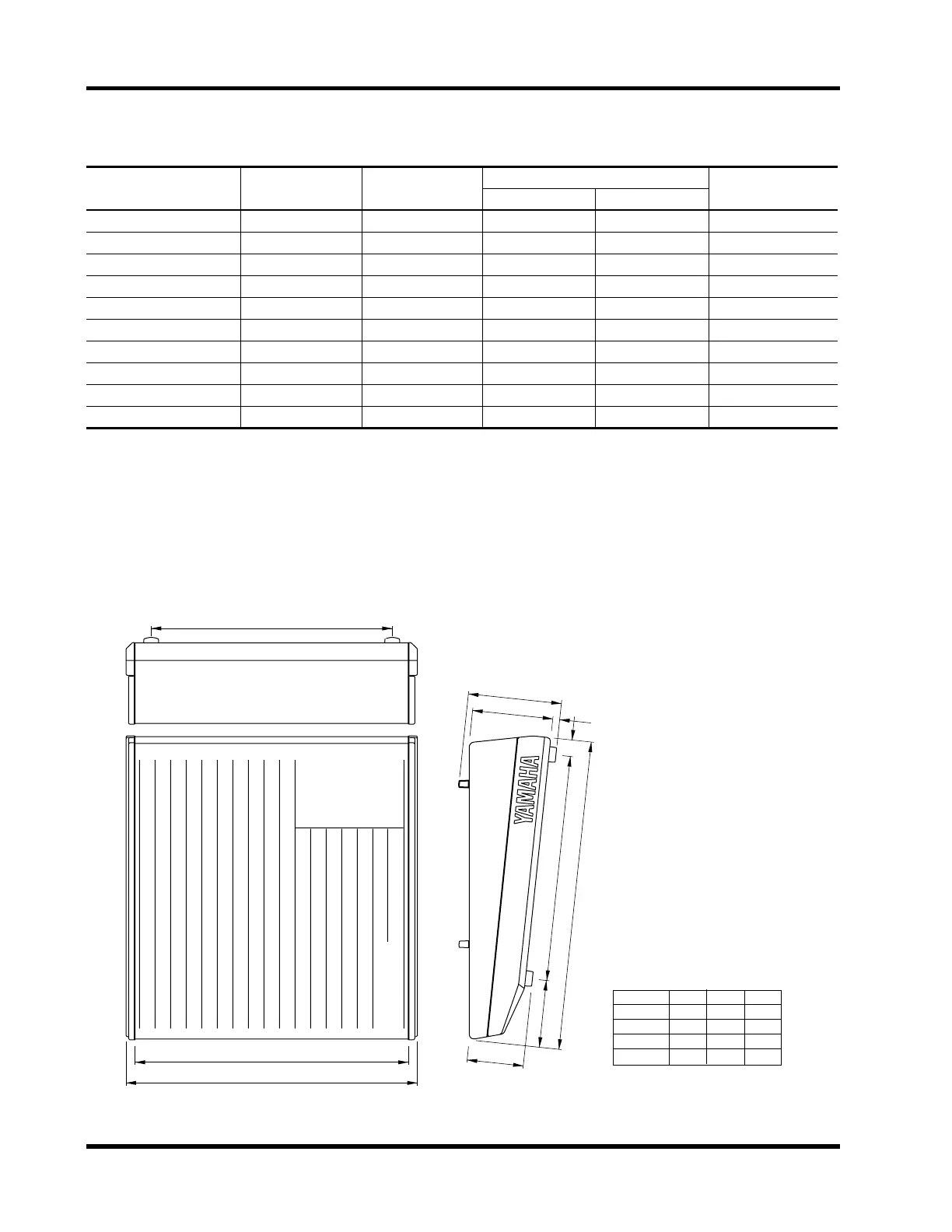

Dimensions
Output Connection
Actual Source
Impedance
For Use with
Nominal
Output Level
Mixer Connector
Nominal Max. Before Clip
ST1 OUT L/R 150 Ω 600 Ω lines +4dB (1.23V) +24dB (12.3V) XLR-3-32 type *1
STEREO INSERT OUT L/R 600 Ω 10k Ω lines 0dB (775mV) +20dB (7.75V) Phone jack (TRS)*2
ST2/MONI OUT L/R 75 Ω 600 Ω lines +4dB (1.23V) +20dB (7.75V) Phone jack *3
REC OUT L/R 600 Ω 10k Ω lines –10dBV (316mV) +16dBV (6.31V) RCA
GROUP 1~4 75 Ω 600 Ω lines +4dB (1.23V) +20dB (7.75V) Phone jack *3
AUX SEND 1~5 75 Ω 600 Ω lines +4dB (1.23V) +20dB (7.75V) Phone jack *3
INPUT INSERT OUT 600 Ω 10k Ω lines 0dB (775mV) +20dB (7.75V) Phone jack (TRS) *2
GROUP INSERT OUT 600 Ω 10k Ω lines 0dB (775mV) +20dBV (7.75V) Phone jack (TRS) *2
DIRECT OUT 600 Ω 10k Ω lines 0dB (775mV) +20dB (7.75V) Phone jack *3
PHONES OUT 100 Ω 40 Ω phones 3mW (346mV) 100mW (2.0V) Stereo phone jack
D: 596
Wl
W
Wi
129.5
108.9
434.5
155.5
H: 180.2
13.3
31.9
Model
MX400-8
MX400-12
MX400-16
MX400-24
WI
465
585
705
945
Wi
527
647
767
1007
W
562
682
802
1042
