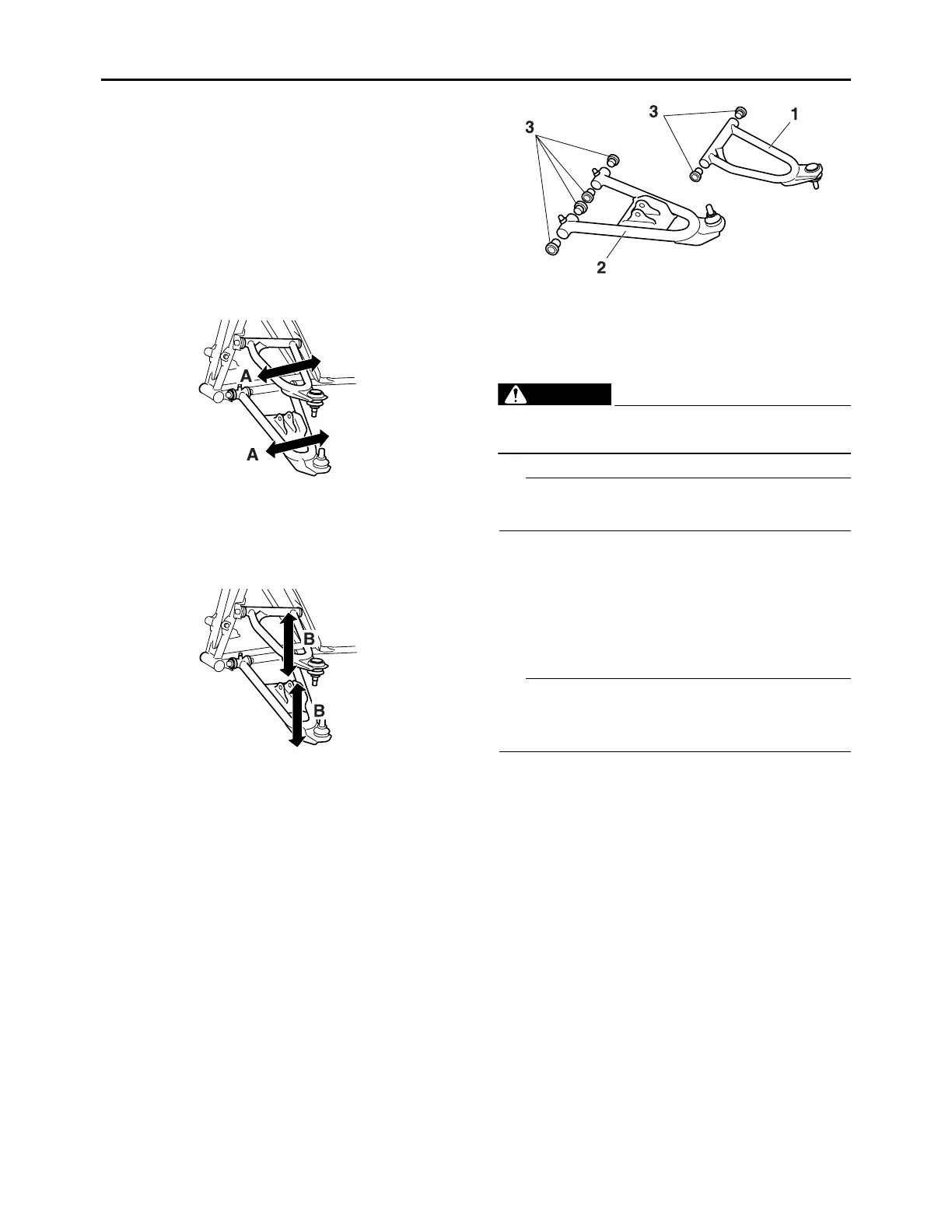

FRONT ARMS AND FRONT SHOCK ABSORBER ASSEMBLIES
4-51
EAS29720
REMOVING THE FRONT ARMS
The following procedure applies to both of the
front upper arms and front lower arms.
1. Check:
• Front arm free play
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Check the front arm side play “A” by mov-
ing it from side to side.
If side play is noticeable, check the bush-
ings.
b. Check the front arm vertical movement “B”
by moving it up and down.
If the vertical movement is tight or rough, or
if there is binding, check the bushings.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Remove:
• Front arm
EAS29730
CHECKING THE FRONT ARMS
The following procedure applies to both of the
front upper arms and front lower arms.
1. Check:
• Front upper arm “1”
• Front lower arm “2”
Bends/damage → Replace.
2. Check:
• Bushings “3”
Wear/damage → Replace.
EAS2PA1406
REMOVING THE FRONT SHOCK
ABSORBER ASSEMBLY
1. Place the vehicle on a level surface.
WARNING
EWA2PA1402
Securely support the vehicle so that there
is no danger of it falling over.
TIP
Place the vehicle on a suitable stand so that
the front wheel is elevated.
2. Remove:
• Front wheel
Refer to “FRONT WHEEL” on page 4-6.
• Front shock absorber assembly lower bolt
• Front shock absorber assembly upper
bolt
TIP
While removing the front shock absorber
assembly lower bolt, hold the front lower arm
so that it does not drop down.
EAS29760
CHECKING THE FRONT SHOCK
ABSORBER ASSEMBLIES
The following procedure applies to both of the
front shock absorber assemblies.
1. Check:
• Front shock absorber assembly
Oil leaks → Replace the front shock
absorber assembly.
• Front shock absorber rod
Bends/damage → Replace the front
shock absorber assembly.
•Spring
Move the spring up and down.
Fatigue → Replace the front shock
absorber assembly.
