SWINGARM
4-57
EAS23380

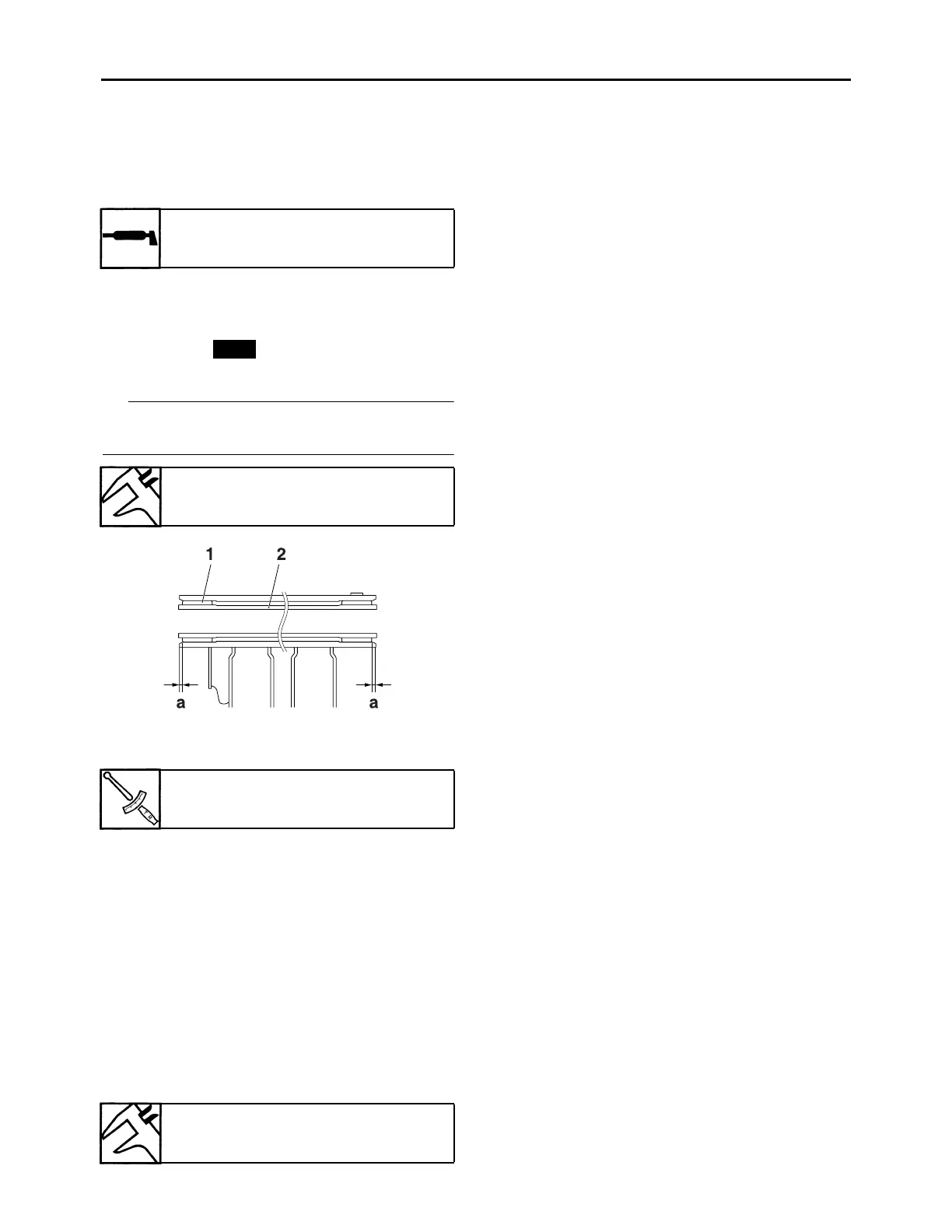

INSTALLING THE SWINGARM
1. Lubricate:
• Bearings
•Spacer
• Oil seals
2. Install:
• Bearings “1”
•Spacer “2”
• Oil seals
•Dust covers
TIP
Inject the bearing with the character stamp
turned outward.
3. Install:
• Pivot shaft
4. Install:
• Rear shock absorber assembly
• Rear axle hub
• Rear axle
• Rear wheel
Refer to “REAR WHEEL” on page 4-10,
“REAR SHOCK ABSORBER ASSEM-
BLY” on page 4-53 and “REAR AXLE
AND REAR AXLE HUB” on page 4-12.
5. Adjust:
• Drive chain slack
Refer to “ADJUSTING THE DRIVE
CHAIN SLACK” on page 3-17.
Recommended lubricant
Lithium-soap-based grease
Installed depth of bearing “a”
1–2 mm (0.04–0.08 in)
Pivot shaft nut
100 Nm (10 m·kgf, 72 ft·lbf)
Drive chain slack
45.0–55.0 mm (1.77–2.17 in)
New
To Next Page
