REAR SHOCK ABSORBER ASSEMBLY
4-54
EAS23170
HANDLING THE REAR SHOCK ABSORBER
WARNING
EWA13750
This rear shock absorber contains highly
compressed nitrogen gas. Before handling
the rear shock absorber, read and make
sure you understand the following informa-
tion. The manufacturer cannot be held
responsible for property damage or per-
sonal injury that may result from improper
handling of the rear shock absorber.
• Do not tamper or attempt to open the rear
shock absorber.
• Do not subject the rear shock absorber to
an open flame or any other source of high
heat. High heat can cause an explosion
due to excessive gas pressure.
• Do not deform or damage the rear shock
absorber in any way. Rear shock absorber
damage will result in poor damping per-
formance.
EAS23200
DISPOSING OF A REAR SHOCK
ABSORBER

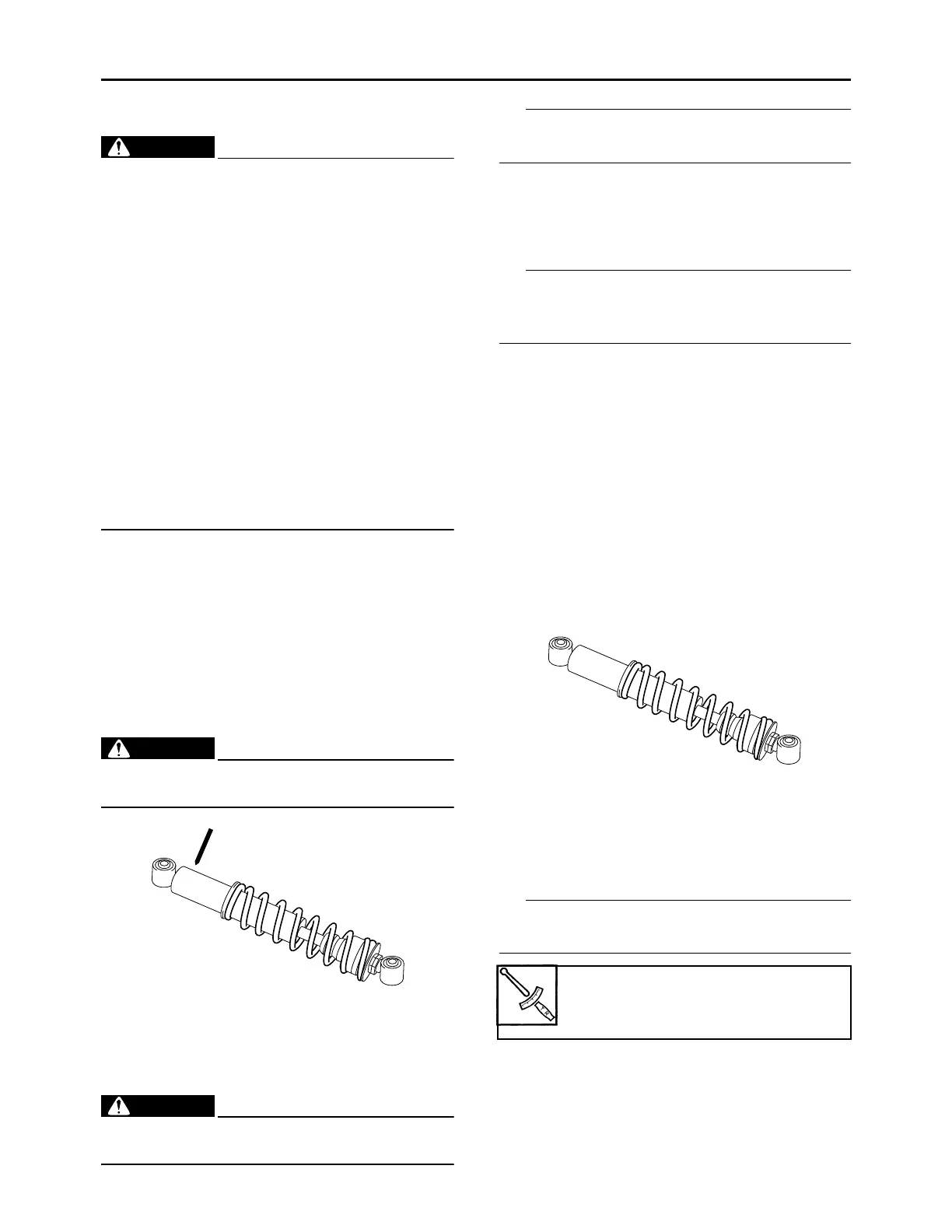

1. Gas pressure must be released before dis-
posing of a rear shock absorber. To release
the gas pressure, drill a 2–3 mm (0.08–
0.12 in) hole through the rear shock
absorber at a point 15–20 mm (0.59–0.79
in) from its end as shown.
WARNING
EWA13760
Wear eye protection to prevent eye damage
from released gas or metal chips.
EAS23210
REMOVING THE REAR SHOCK ABSORBER
ASSEMBLY
1. Place the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
TIP
Place the vehicle on a suitable stand so that
the rear wheel is elevated.
2. Remove:
• Rear shock absorber assembly lower bolt
• Rear shock absorber assembly upper
bolt
TIP
While removing the rear shock absorber
assembly lower bolt, hold the swingarm so that
it does not drop down.
EAS23250
CHECKING THE REAR SHOCK ABSORBER
ASSEMBLY
1. Check:
• Rear shock absorber rod
Bends/damage → Replace the rear
shock absorber assembly.
• Rear shock absorber
Gas leaks/oil leaks → Replace the rear
shock absorber assembly.
•Spring
Damage/wear → Replace the rear shock
absorber assembly.
EAS23300
INSTALLING THE REAR SHOCK
ABSORBER ASSEMBLY
1. Install:
• Rear shock absorber assembly
TIP
When installing the rear shock absorber
assembly lower bolt, lift up the swingarm.
Rear shock absorber assembly
nut
55 Nm (5.5 m·kgf, 40 ft·lbf)
