Main Menu Sub Menu Parameter
Setting value ([ ] Initial value) / 設定値（［ ］初期値）
THX Cinema
Decode Type
[Pro Logic]
Pro Logic II
Pro Logic II x
Neo : 6
SURROUND
Standard
Decode Type
[Pro Logic]
PL II Movie
PL II Music
PL II Game
PL II x Movie
PL II x Music
PL II x Game
Neo : 6 Cinema
Neo : 6 Music
Panarame [OFF] / ON
Dimension -3 / +3 / 1 [STD]
Center Width 0 / 7 / 1 [3]
Center Image
0.0 / 1.0 / 0.1 [0.3]
Initialize [NO] / YES
Parameter
Decode Type
DSP Level
Sur. Init. Deley
Sur. Room Size
Sur. Liveness
SB Init. Deley
SB Room Size
SB Liveness Dialogue Lift
Initialize
-6 / +3 / 1 dB 1 / 49 / 1 ms 0.1 / 2.0 / 0.1 1 / 5 / 1 1 / 49 / 1 ms 0.1 / 2.0 / 0.1 1 / 5 / 1 0 / 5 / 1 NO / YES
Enhanced Pro Logic 0 20 1.0 3 (15) (1.0) (5) (0) NO
Pro Logic II 0 19 1.0 3 (15) (1.0) (5) (0) NO
Pro Logic II x 0 19 1.0 3 15 1.0 5 (0) NO
Neo 6 0 19 1.0 3 15 1.0 5 (0) NO
STRAIGHT
Decode Type
DSP Level Init. Deley Room Ssize Liveness
Sur. Init. Deley
Sur. Room Size
SB Init. Deley
SB Room Size
Rev. Time Rev. Deley Rev. Level
Dialogue Lift
Initialize
-6 / +3 / 1 dB 1 / 99 / 1 ms 0.1 / 2.0 / 0.1 0 / 10 / 1 1 / 49 / 1 ms 0.1 / 2.0 / 0.1 1 / 49 / 1 ms 0.1 / 2.0 / 0.1
1.0 / 5.0 /0.1 ms
0 / 250 / 1 ms
0 / 100 / 1 % 0 / 5 / 1 NO / YES
MUSIC Munich 0 30 1.0 5 -------(0)NO
Vienna 0 30 1.0 5 -------(0)NO
Freiburg 0 95 1.0 3 ----4.013070(0)NO
The Bottom Line
0301.05-------(0)NO
The Roxy Theater
0151.05----1.61209(0)NO
Pop/Rock 21 1.0 --------(0)NO
Classical/Opera
0281.0--------(0)NO
ENTERTAINMENT
TV Sports 0 10 1.0 - 30 1.0 (15) (1.0) 1.6 100 4 (0) NO
Mono Moive 0 69 1.0 3 - - - (1.0) 2.5 160 2 (0) NO
Game 0 36 1.0 - 15 1.0 (15) (1.0) - - - (0) NO
Disco 0 26 - 5 ----2.71204(0)NO
MOVIE THEATER
Spectacle Pro Logic 0 13 1.0 - 23 1.0 (15) (1.0) - - - (0) NO
Pro Logic II 0 13 1.0 - 32 1.0 (15) (1.0) - - - (0) NO
Pro Logic II x 0 13 1.0 - 32 1.0 15 1.0 - - - (0) NO
Neo : 6 0 13 1.0 - 32 1.0 15 1.0 - - - (0) NO
Sci-Fi Pro Logic 0 16 1.0 - 20 1.0 (15) (1.0) - - - (0) NO
Pro Logic II 0 16 1.0 - 2 1.0 (15) (1.0) - - - (0) NO
Pro Logic II x 0 16 1.0 - 2 1.0 15 1.0 - - - (0) NO
Neo : 6 0 16 1.0 - 2 1.0 15 1.0 - - - (0) NO
Adventure Pro Logic 0 15 1.0 - 20 1.0 (15) (1.0) - - - (0) NO
Pro Logic II 0 15 1.0 - 30 1.0 (15) (1.0) - - - (0) NO
Pro Logic II x 0 15 1.0 - 30 1.0 15 1.0 - - - (0) NO
Neo : 6 0 15 1.0 - 30 1.0 15 1.0 - - - (0) NO
General Pro Logic 0 15 1.0 - 20 1.0 (15) (1.0) - - - (0) NO
Pro Logic II 0 15 1.0 - 26 1.0 (15) (1.0) - - - (0) NO
Pro Logic II x 0 15 1.0 - 26 1.0 15 1.0 - - - (0) NO
Neo : 6 0 15 1.0 - 26 1.0 15 1.0 - - - (0) NO
• SOUND/SURROUND SELECT MENU
Sound Serect Min./Max./Step 最小/最大/Step
Surround Serect Min./Max./Step 最小/最大/Step
Main Menu Parameter
Center Level
Surround L Level Surround R Level
Sur. Back Level
Presence L Level Presence R Level
Initialize
0 / 100 / 1 % 0 / 100 / 1 % 0 / 100 / 1 % 0 / 100 / 1 % 0 / 100 / 1 % 0 / 100 / 1 %
NO / YES
STEREO 2ch Stereo - - ----NO
7ch Stereo 100 100 100 35 (33) (33) NO
(Setting can be made when PL II Music, Pro Logic II x is selected / PLIIMusic、ProLogicIIx選択時 設定可)
}
(Setting can be made when Neo:6 Music is selected / Neo:6Music選択時 設定可)
Stereo Separation / ステレオセパレーション (1 kHz)
HD (U model) ....................................................................... 70 dB
Frequency Response / 周波数特性 (20 Hz to 12.5 kHz)
HD (U model) .............................................................. +0.5 / -3 dB
Antenna / アンテナ入力
................................................................................. Loop Antenna
■ General / 総合
Power Supply / 電源電圧
U, C models ........................................................... AC 120 V, 60 Hz
R model ................................ AC 110/120/220/230-240 V, 50/60 Hz
T model ..................................................................AC 220 V, 50 Hz
K model .................................................................. AC 220 V, 60 Hz
A model .................................................................. AC 240 V, 50 Hz
B, G models ........................................................... AC 230 V, 50 Hz
L model .............................................. AC 220/230-240 V, 50/60 Hz
J model ............................................................. AC 100V, 50/60 Hz
Power Consumption / 消費電力
U, C models ............................................................ 500 W / 630 VA
R, T, K, A, B, G, L models ..................................................... 500 W
J model .................................................................................. 440 W
Standby Power Consumption (reference data) / 待機時消費電力(参考値)
U, C, J models ............................................................ 0.2 W or less
R model (AC 240, 50 Hz) ......................................... 0.33 W or less
T, K, A, B, G, L models ............................................. 0.15 W or less
Maximum Power Consumption / 最大消費電力 (6ch Drive, 10% THD)
R model ................................................................................ 1100 W
AC Outlets / ACアウトレット
2 switched outlets
U, C models ............................ 100 W max. total / 0.8A max. total
R, L models .......................................................... 50 W max. total
T, G, J models .................................................... 100 W max. total
1 switched outlet
A, B models ......................................................... 100W max. total
Dimensions / 寸法 (W x H x D)
......................... 435 x 171 x 438.5 mm (17-1/8" x 6-3/4" x 17-1/4")
Weight / 質量
RX-V4600 ................................................... 18.0 kg (39 lbs. 11 oz.)
DSP-AX4600 ............................................... 19.0 kg (41 lbs. 14 oz.)
Finish / 仕上げ
Gold color .......................................................... R, T, K, L, J models
Black color ....................................................... U, C, R, A, J models
Titanium color ........................................................... B, G, L models
Accessories / 付属品
Remote Control, Batteries (Alkaline Dry), Indoor FM Antenna, AM
Loop Antenna, Antenna Adapter PAL (B model), Power Cable,
Speaker Terminal Wrench, Optimizer Microphone
* Specifications are subject to change without notice due to product
improvements.
※ 参考仕様および外観は予告なく変更されることがあります。
U .......... U.S.A. model C ...... Canadian model
R .......... General model T ....... Chinese model
K .......... Korean model A ...... Australian model
B .......... British model G ...... European model
L ........... Singapore model J ....... Japanese model
Manufactured under license from Dolby Laboratories.
“Dolby”, “Surround EX”, and the double-D symbol are
trademarks of Dolby Laboratories.
ドルビーラボラトリーズからの実施権に基づき製造されています。
「ドルビー」、「PROLOGIC」、「SurroundEX」およびダブルD記号
は、ドルビーラボラトリーズの商標です。
“SILENT CINEMA” is a trademark of YAMAHA
CORPORATION.
「サイレントシネマ/SILENTCINEMA」はヤマハ株式会社の登録商標
です。
HD Radio
TM
technology manufactured under license from
iBiquity Digital Corporation. “iBiquity Digital” and the “HD Radio”
and “HD” symbols are registered trademarks of iBiquity Digital
Corporation. U.S. and Foreign Patents.

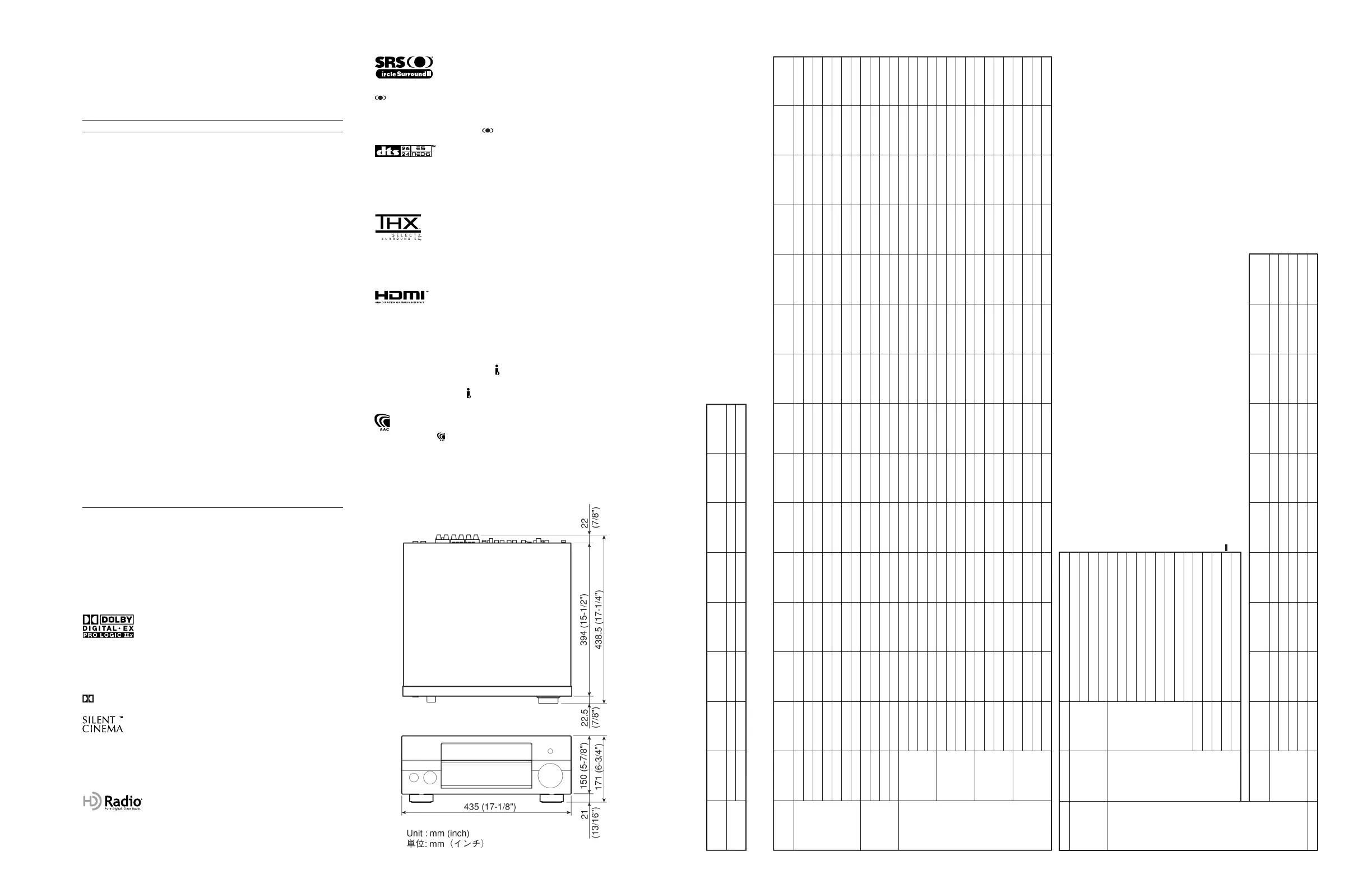

• DIMENSIONS/寸法図
