Playback-only model: DKC100XG
This controller includes a built-in XG tone generator. It does not include a rotary encoder. It can be mounted
under the keybed. The dimensions are: 319(W) × 68(H) × 204(D) [mm]. The controller’s rear panel includes
MIDI IN and MIDI OUT jacks and R and L/MONO OUTPUT jacks.
MarkIIXG series: DKC500R, DKC500RXG
These controllers are used for both UPs and GPs. The DKC500RXG includes an XG tone generator and is used
for non-silent models. The DCK500R lacks the tone generator and is used for silent models (since silent models
have the XG tone generator installed in the piano itself). These controllers include flash memory. The dimensions
are: 316(W) × 60(H) × 217(D) [mm].
+
/YES
ENTER
–/NO
PART SELECT
LR
FUNCTION
SONG SELECT/REV
.
FWD
STOPPLAY/PAUSE
POWER
CONTROL UNIT DKC100XG
MASTER
BALANCE
VOLUME

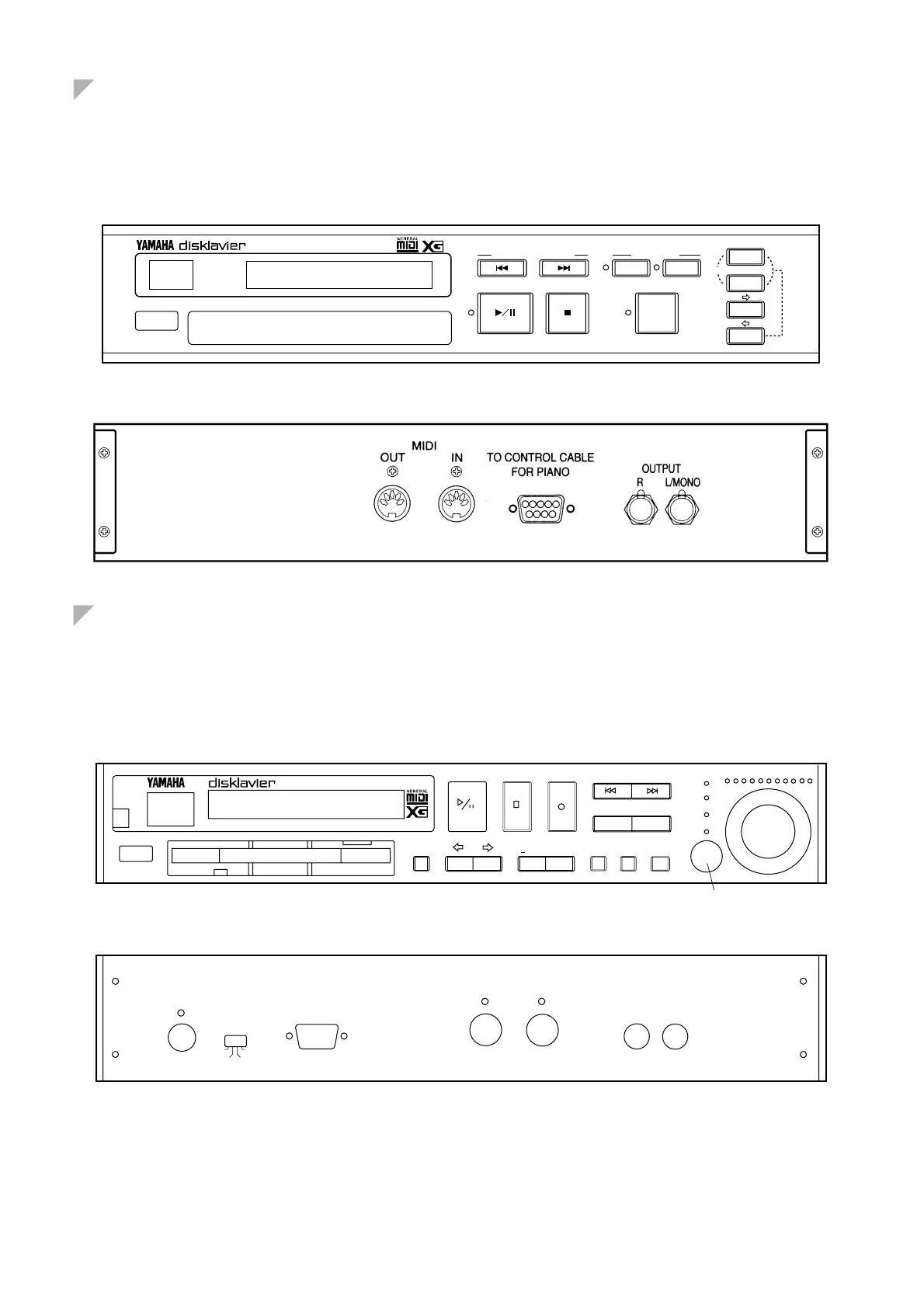

Control Box Front Panel
Control Box Rear Panel
CONTROL UNIT DKC500RXG
POWER
ENTER
PLAY/PAUSE STOP RECORD
+/YES /NO VOICE FUNC.
METRO-
NOME
VOLUME
TEMPO
TRANSPOSE
BALANCE
-10
-8 -6 -4 -2 0
L
R
PART SELECT
Select button
SONG SERECT/REV FWD
Control Box Front Panel (DKC500RXG)
TO HOST
MIDI
PC1
MAC
PC2
TO CONTROL CABLE
FOR PIANO
OUT IN
MIDI
R L/MONO
OUT PUT
Control Box Rear Panel (DKC500RXG)
