● DKVPRO

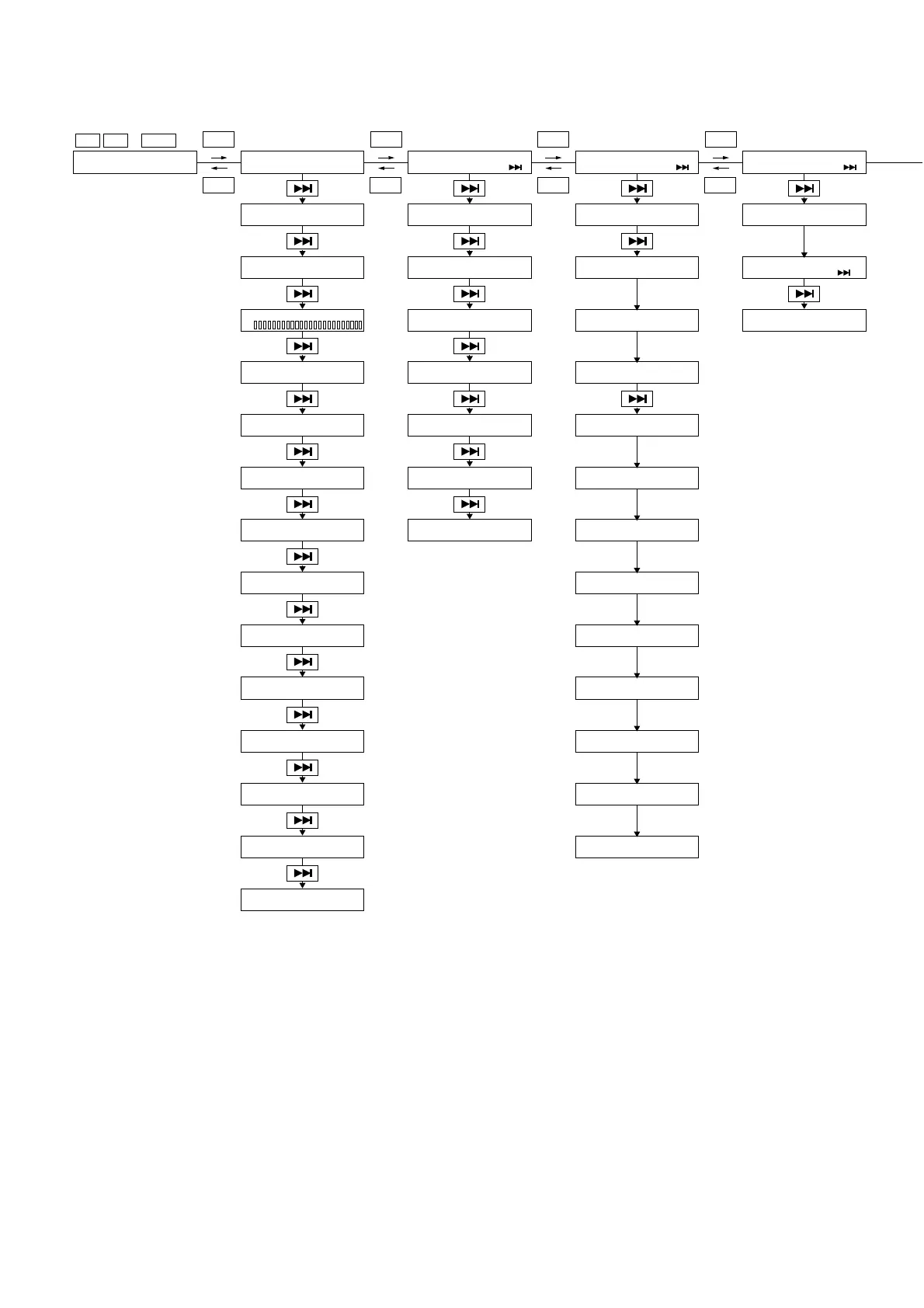

**** TEST MODE GPS-X ****
–/NO <- PUSH -> +YES
**** TEST MODE ****
*** CONTROL SHEET ***
**** Sensor unit test ***
(–, +, )
**** KMC sheet test ***
(–, +, )
**** SCPP sheet test ***
(–, +, )
V1.33Kx 1 Dec 27 1997
English GPS-X
PRO SENSOR PROGRAM
Ver. 1.26 971215
KMC PROGRAM Version
V1.009a 1997/01/13
SCPP w-ram R/W test
Start !
(1) 7 SEG & LED Test (1) KEY SENSOR
DEPTH TEST
KMC ram R/W test
Start !
SCPP w-ram R/W test
SCPP OK– 123_5678( )
(2) LCD Test (2) HAMMER SENSOR
HEIGHT TEST
KMC ram R/W test
OK !
SCPP A/D test
12KEY(CH: 00) A/D-0345
(3) Sound Test
Press [PLAY]
** HMR SENSOR EDGE CHK **
push ENTER to start
KMC flash R/W test
(YES, NO)
(4) Switch Test
(Switch & Rmt Ctl)
NO RST 253 K1 K2 K3 K4
01 201 200 129 87 40 14
I/O test (sensor)
Start !
(5) DRAM Test
Press [PLAY]
AD 255 test OK I/O test (sensor)
OK !
(6) Flash R/W Test
Press [PLAY]
AD 60 test OK I/O test (pedal)
Start !
(7) Flash Read Test
Press [PLAY]
I/O test (pedal)
OK !
(8) Host I/O Test [PC2] I/O test (piano TG)
Start !
(9) MIDI I/O Test
OK!
I/O test (piano TG)
OK !
(10)Piano I/O Test
OK!
SCPP bus test
Start !
(11)DB 50 I/O Test
L R
SCPP bus test
OK !
(12)FDD Wright & Read Test
Press [PLAY]
FOOT CTRL test
NON CONNECT
(13)FDD Read Test
Press [PLAY]
+
POWERL R
+
/YES
+
/YES
+
/YES
+
/YES
–/NO –/NO –/NO –/NO
