NAMES OF PARTS AND THEIR FUNCTIONS
4 En

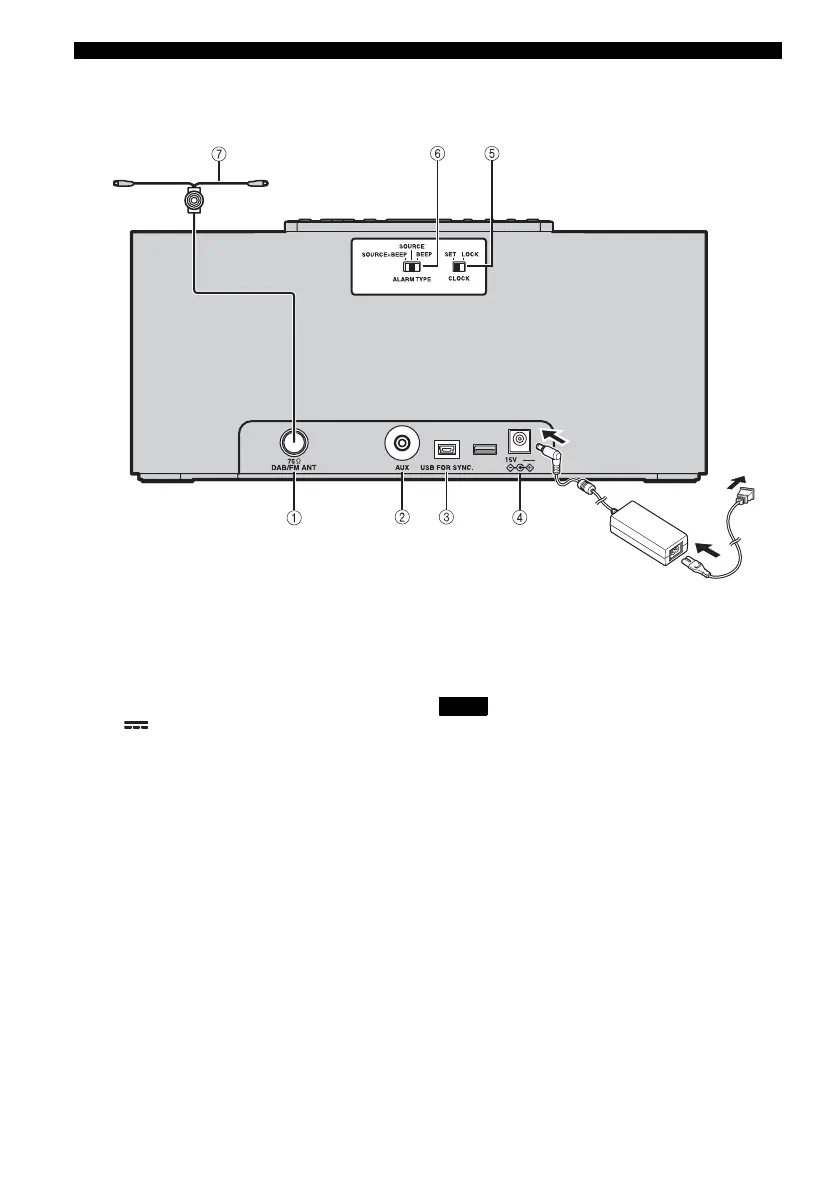

X Rear panel
1 DAB/FM antenna terminal: Connect the supplied
Indoor DAB/FM antenna.
2 AUX: Connect an external device. (☞ P. 10)
3 USB FOR SYNC.: Connect to PC. (☞ P. 6)
4 15V : Connect supplied AC adaptor and power
cable.
5 CLOCK: Adjust the clock. (☞ P. 5)
6 ALARM TYPE: Set alarm type of IntelliAlarm
function. (☞ P. 11)
7 Indoor DAB/FM antenna (supplied)
• The antenna should be stretched out.
• If you use an outdoor antenna instead of the supplied DAB/
FM antenna, reception will be better.
• If radio reception is poor, change the height, direction, or
placement of the antenna.
Notes

Yamaha TSX-140 Specifications

General

CD player	Yes
Dimensions (WxDxH)	400 x 136 x 181 mm
USB connector type	Mini-USB B
Bluetooth	No
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Product color	Red
Volume control	Rotary
Frequency range	- Hz
RMS rated power	30 W
Audio output channels	2.0 channels
Supported radio bands	AM, FM
Preset stations quantity	5
Equalizer	-
Apple docking compatibility	iPhone, iPod

Weight and Dimensions

Weight	3200 g
