a. Remove the timing cover (C, Figure 18) and
the flywheel bolt cover (D) from the alterna
-
tor cover.
b. Remove the cam sprocket cover from the rear
cylinder head.
c. Use the flywheel nut to rotate the crankshaft
clockwise until the T-mark on the flywheel
(A, Figure 29) aligns with the cutout in the al
-
ternator cover (B).
d. Check the timing mark on the rear cam sprocket
(A, Figure 30). It should align with the pointer
on the rear cylinder head (B, Figure 30).
ENGINE LOWER END 143
5
28

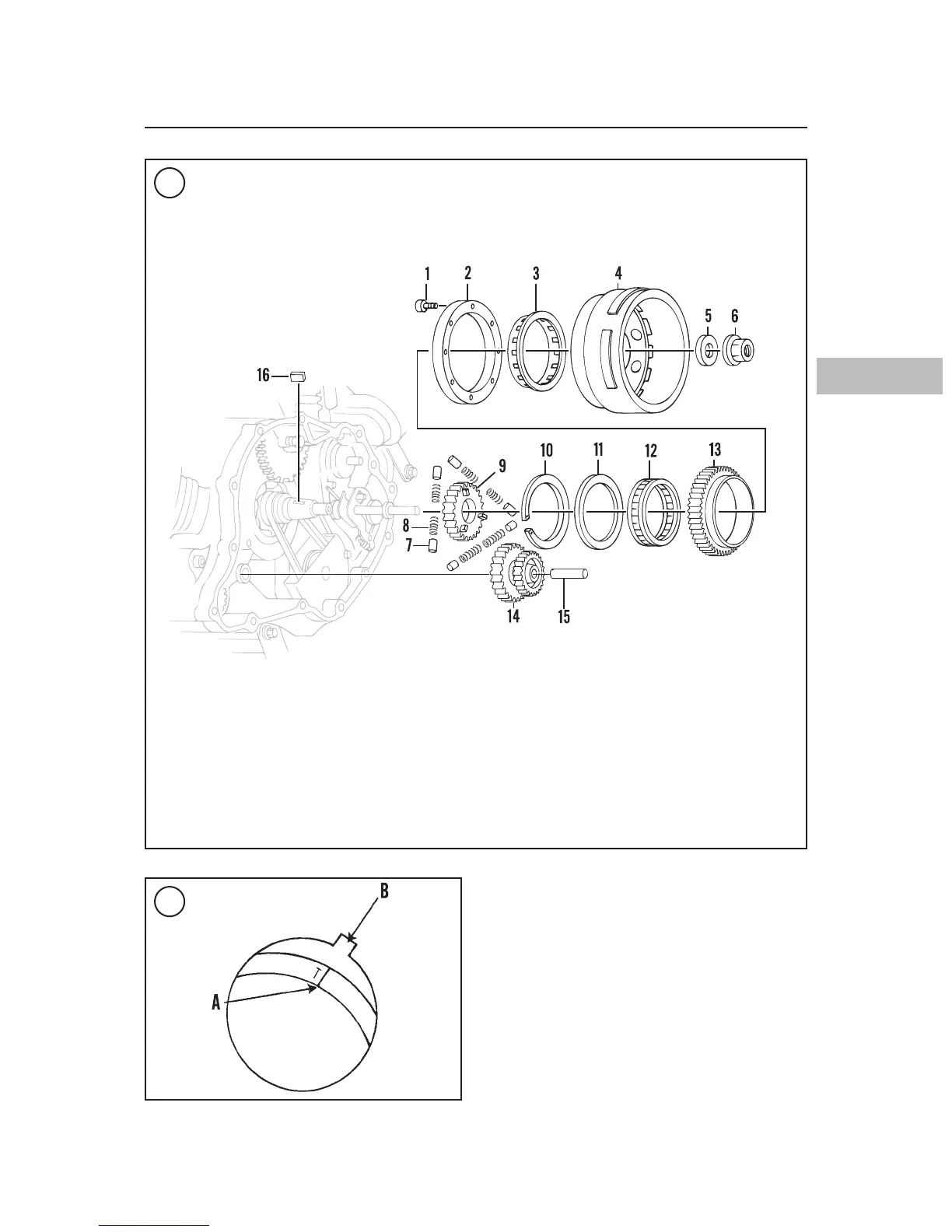

FLYWHEEL AND STARTER CLUTCH
1. Bolt
2. One-way clutch housing
3. One-way clutch
4. Flywheel
5. Washer
6. Nut
7. Pin
8. Spring
9. Timing gear
10. Snap ring
11. Washer
12. Bearing
13. Starter wheel gear
14. Starter idler gear assembly
15. Idler gear shaft
16. Woodruff key
29

Yamaha V star 1100 Specifications

General

Displacement	1063cc
Bore x Stroke	95.0mm x 75.0mm
Compression Ratio	8.3:1
Ignition	TCI
Transmission	5-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Front Tire	130/90-16
Rear Tire	170/80-15
Engine Type	Air-cooled, SOHC, V-twin
Fuel Capacity	4.5 gallons
Rear Brakes	Single disc
