4. Install the cover as follows:
a. Position the cover so the slots on the cover’s
rear side align with their respective grommets
on the frame.
b. Press the cover into the frame until the cover
securely engages these grommets.
c. Torque the battery cover bolt to 7 N•m (62 in.-lb.).
RIGHT SIDE COVER
Removal/Installation
1. Remove the mufflers and the rear exhaust pipe
as described in Chapter Eight.
2. Remove the brake pedal/footrest assembly
(Chapter Thirteen).
3. Remove the right side cover bolt (Figure 19).
4. Pull the rear of the cover out until the cover’s
post disengages from its grommet.
5. Installation is the reverse of removal. Note the
following:
a. Align the cover’s post with its grommet and
press the cover in until it snaps into place.
b. Torque the side cover bolt (Figure 19)to7N•m
(62 in.-lb.).
c. Install the brake pedal/footrest assembly as
described in Chapter Thirteen.
d. Adjust the rear brake pedal height and the rear
brake switch as described in Chapter Three.
BATTERY BOX
Removal/Installation
1. Remove the battery cover and the right side
cover as described in this chapter.
2. Remove the battery as described in Chapter Three.

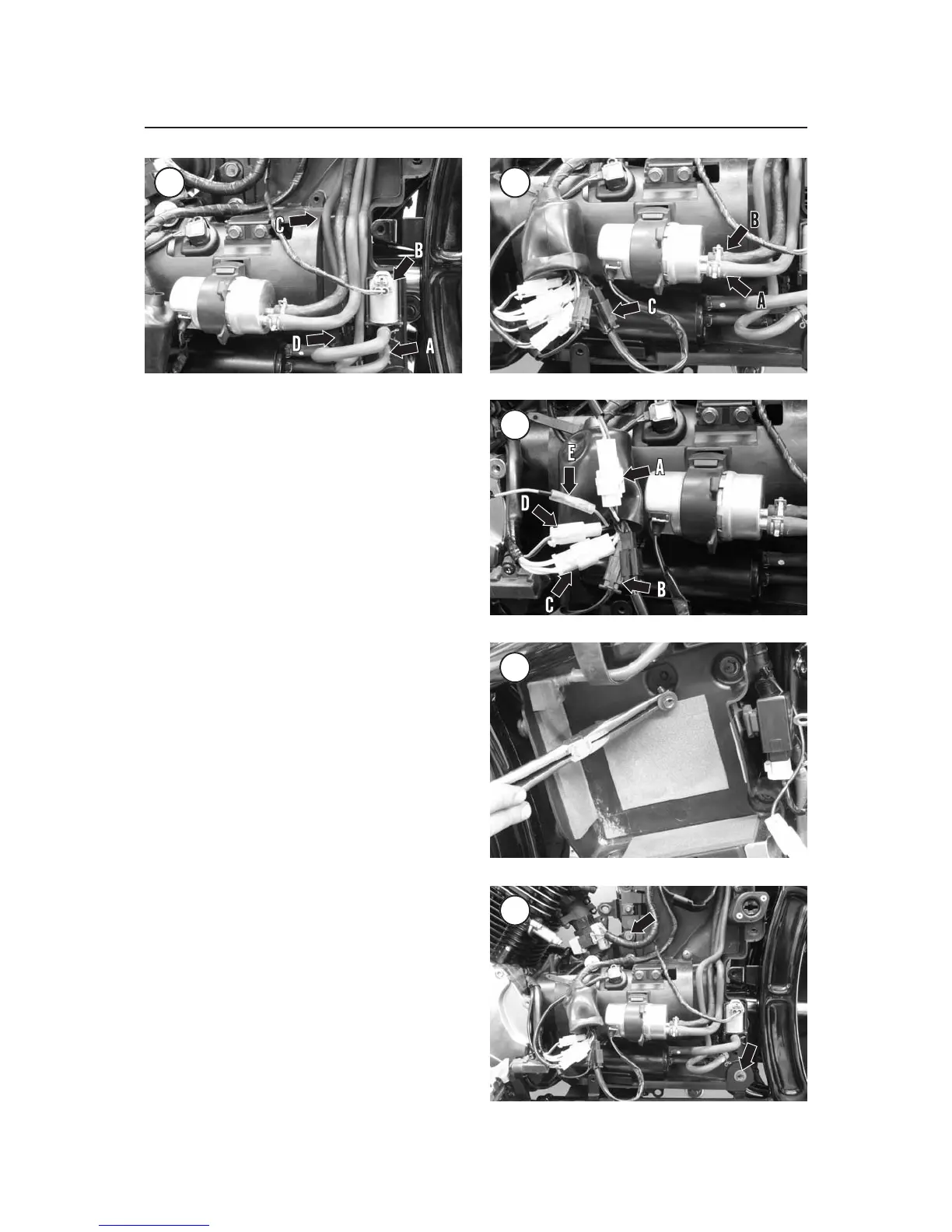

386 CHAPTER FOURTEEN
13
14
17
15
16
