CLUTCH AND PRIMARY DRIVE GEAR 171
6
7
8
9

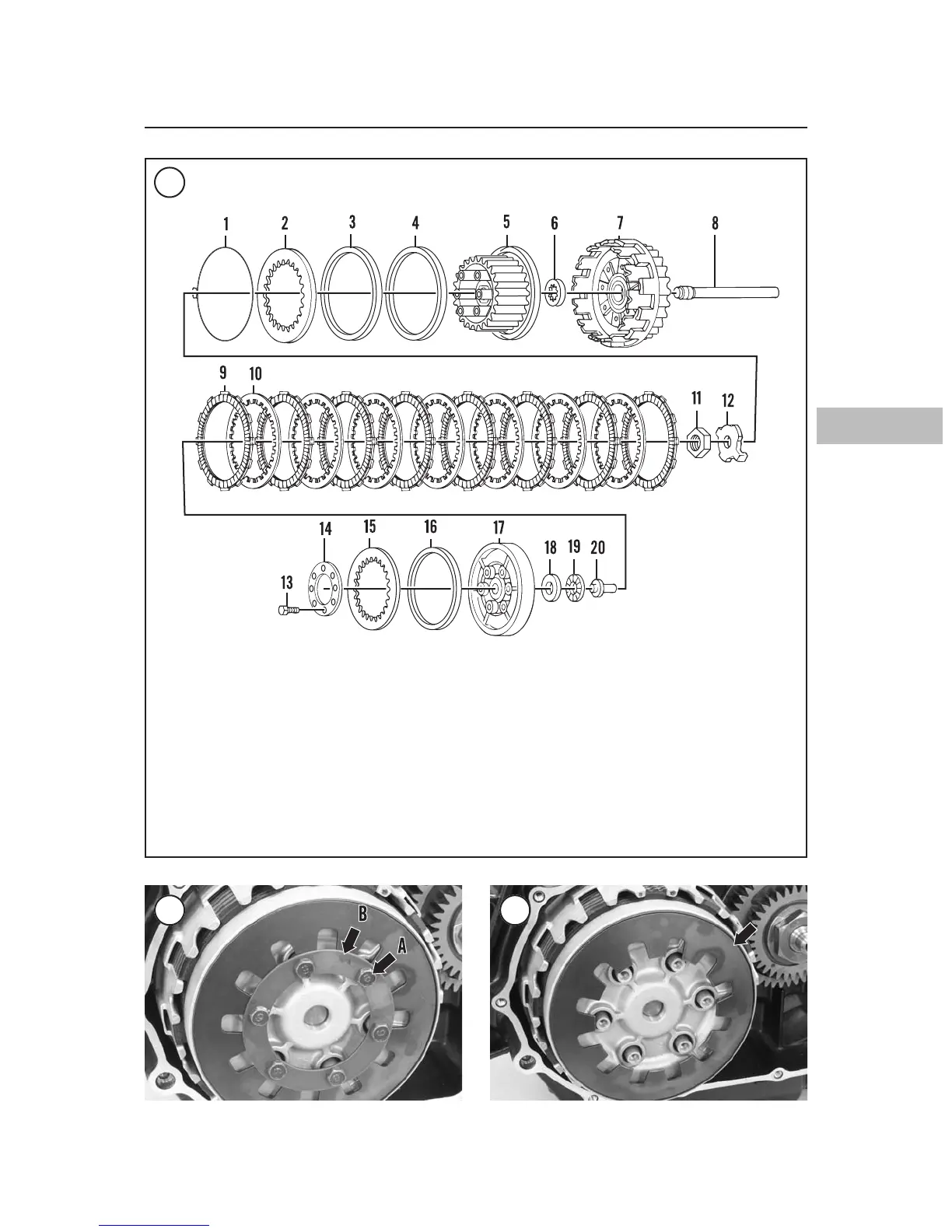

CLUTCH
1. Retaining wire
2. Clutch plate No. 1
3. Clutch boss spring
4. Plate seat
5. Clutch boss
6. Thrust washer
7. Clutch housing
8. Pushrod No. 2
9. Friction disc
10. Clutch plate
11. Clutch nut
12. Lock plate
13. Clutch spring bolt
14. Spring plate
15. Clutch spring
16. Spring seat
17. Pressure plate
18. Washer
19. Release bearing
20. Pushrod No. 1

Yamaha V star 1100 Specifications

General

Displacement	1063cc
Bore x Stroke	95.0mm x 75.0mm
Compression Ratio	8.3:1
Ignition	TCI
Transmission	5-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Front Tire	130/90-16
Rear Tire	170/80-15
Engine Type	Air-cooled, SOHC, V-twin
Fuel Capacity	4.5 gallons
Rear Brakes	Single disc
