364 CHAPTER THIRTEEN
40

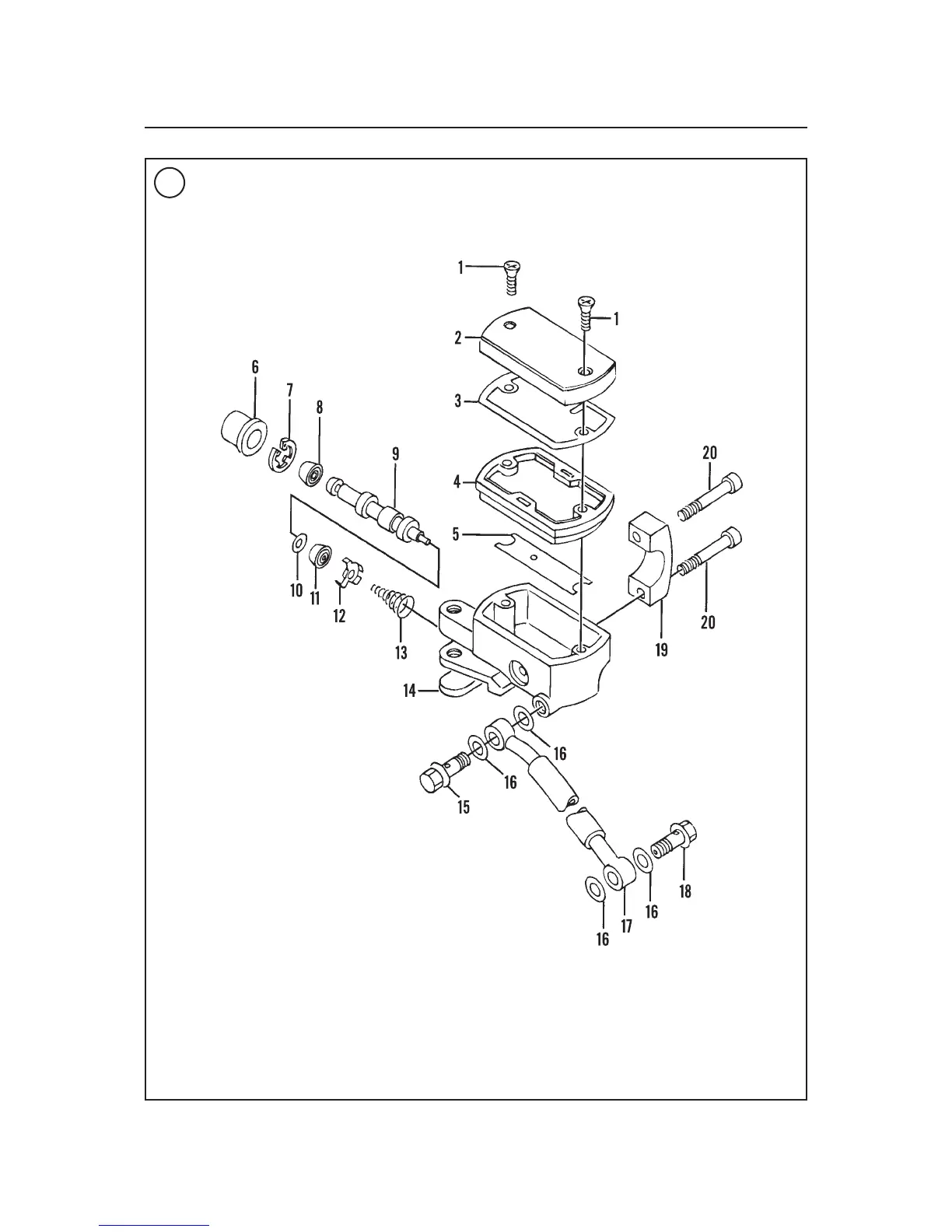

MASTER CYLINDER
1. Screw
2. Reservoir cap
3. Gasket
4. Diaphragm
5. Blow-back baffle
6. Boot
7. Snap ring
8. Secondary cup
9. Piston
10. Washer
11. Primary cup
12. Spring seat
13. Spring
14. Reservoir body
15. Banjo bolt
16. Copper washer
17. Brake hose
18. Banjo bolt
19. Clamp
20. Clamp bolt

Yamaha V star 1100 Specifications

General

Displacement	1063cc
Bore x Stroke	95.0mm x 75.0mm
Compression Ratio	8.3:1
Ignition	TCI
Transmission	5-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Front Tire	130/90-16
Rear Tire	170/80-15
Engine Type	Air-cooled, SOHC, V-twin
Fuel Capacity	4.5 gallons
Rear Brakes	Single disc
