1. Remove the rear wheel and swing arm as de

scribed in Chapter Twelve.

2. Remove the bearing housing bolts (A, Figure

45) from the middle driven shaft assembly.

3. Separate the universal joint as follows:

a. Use a small screwdriver to drive the circlip

(A, Figure 46) from each side of the drive

yoke (B).

b. Using a front end ball joint remover (Figure

47) or a hydraulic press with the proper size

TRANSMISSION, SHIFT MECHANISM AND MIDDLE GEAR 199

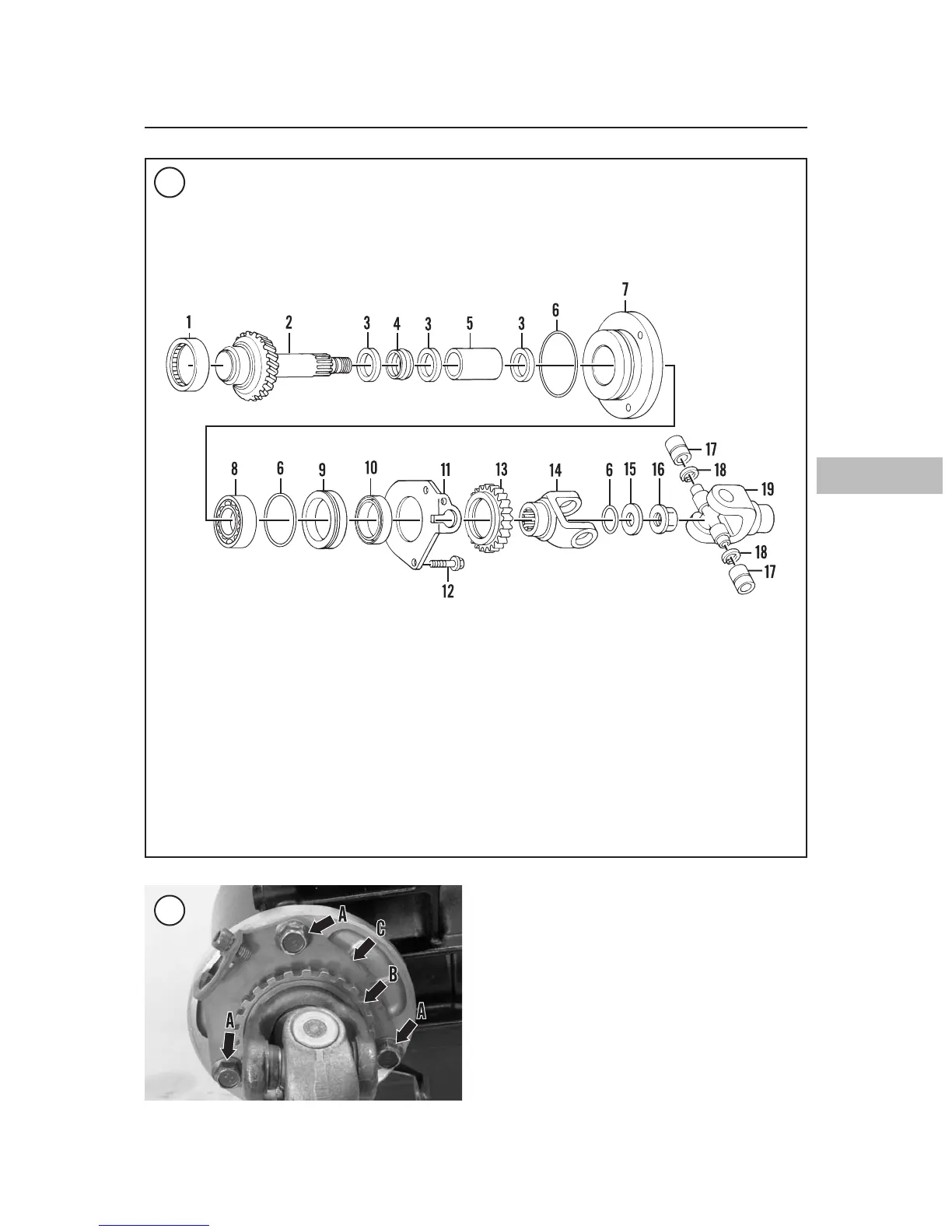

MIDDLE DRIVEN SHAFT ASSEMBLY

1. Bearing

2. Middle driven shaft

3. Washer

4. Collapsible collar

5. Collar

6. O-ring

7. Bearing housing

8. Bearing

9. Bearing retainer

10. Oil seal

11. Speed sensor bracket

12. Bolt

13. Rotor

14. Drive yoke

15. Washer

16. Middle driven shaft nut

17. Bearing

18. Circlip

19. Driven yoke
