4-30
V-BELT, CLUTCH AND
SECONDARY/PRIMARY SHEAVE
ENG
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9
10

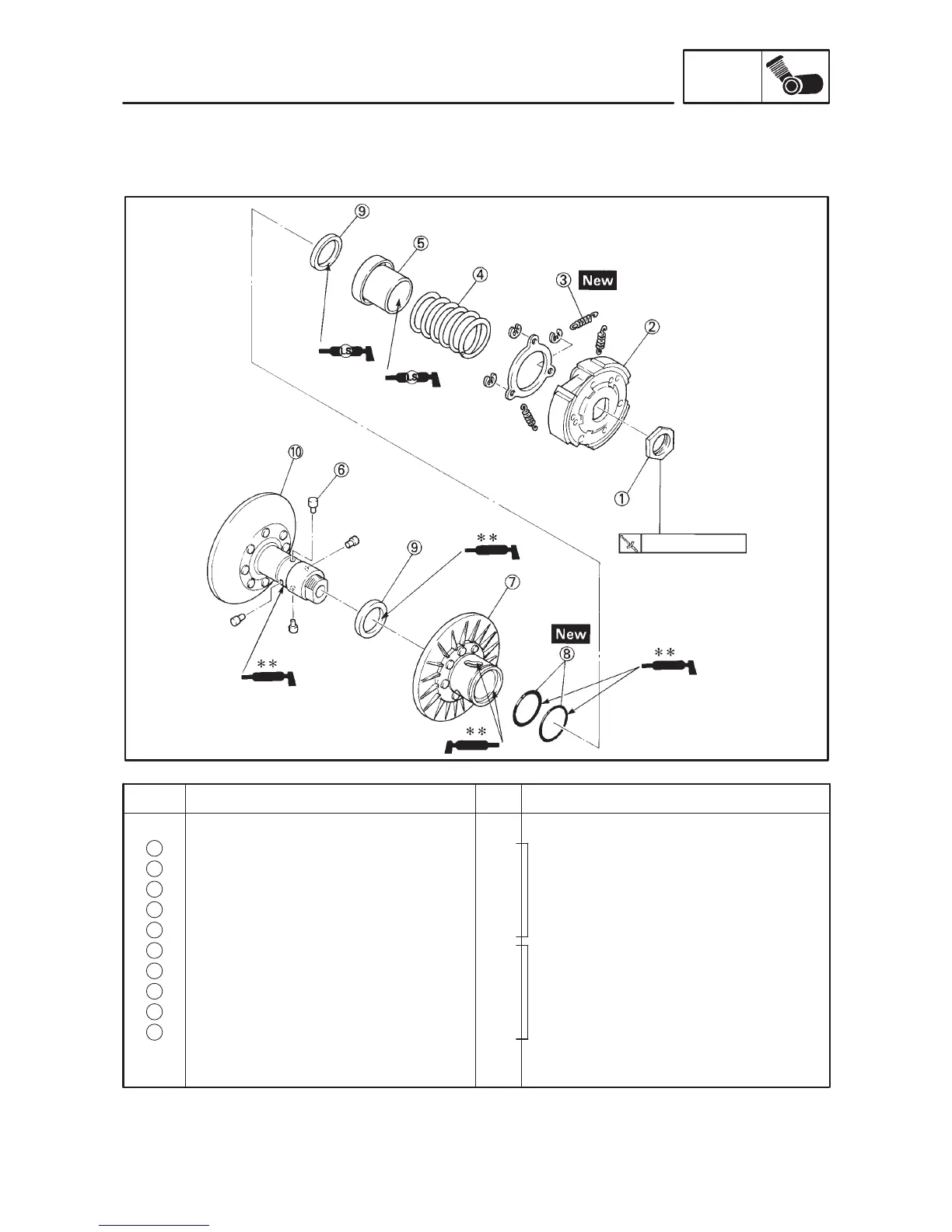

Secondary sheave disassembly
Nut
Clutch carrier
Clutch shoe spring
Compression spring
Spring seat
Guide pin
Secondary sliding sheave
O-ring
Oil seal
Secondary fixed sheave
1
1
3
1
1
4
1
2
2
1
Disassemble the parts in order.
Refer to “SECONDARY SHEAVE
DISASSEMBLY” section.
Refer to “SECONDARY SHEAVE
INSTALLATION” section.
Refer to “SECONDARY SHEAVE
INSTALLATION” section.
Reverse the disassembly procedure
for assembly.
90 Nm (9.0 mkg)
SECONDARY SHEAVE
**Apply BEL-RAY assembly lube
