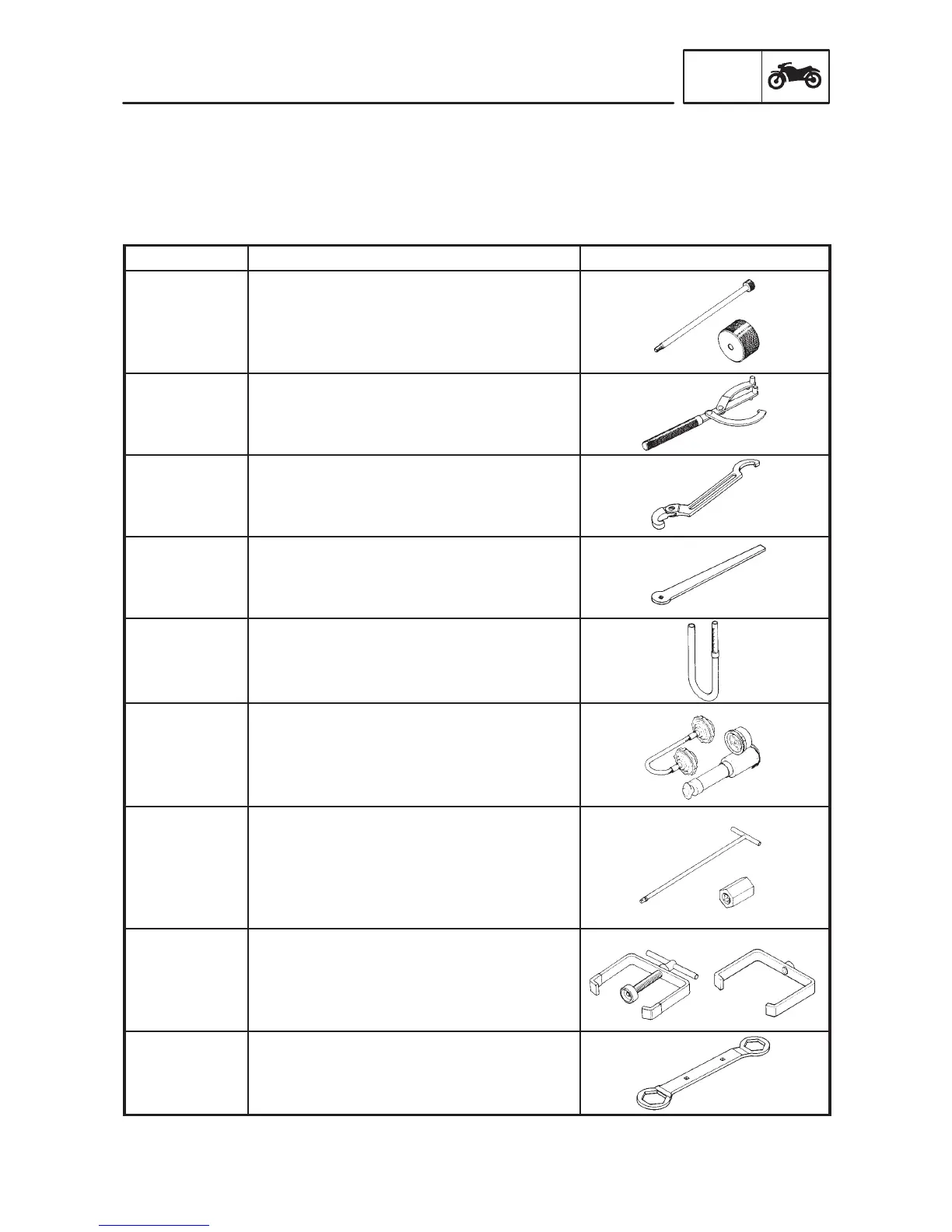

SPECIAL TOOLS
The following special tools are necessary for complete and accurate tune-up and assembly.
Use only the appropriate special tools; this will help prevent damage caused by the use of inappropri-
ate tools or improvised techniques.
When placing an order, refer to the list provided below to avoid any mistakes.
Tool No.
Tool name/Usage Illustration
90890-01084
-01085
Weight
Rocker arm shaft puller bolt
These tools are used when removing
or installing the rocker arm shafts.
90890-01235 Rotor holding tool
This tool is used to remove the
flywheel magneto.
90890-01268 Ringnut wrench
This tool is used to loosen and tighten
the exhaust and steering ringnut.
90890-01311 Valve adjusting tool
This tool is necessary for adjusting
valve clearance.
90890-01312 Fuel level gauge
This gauge is used to measure the fuel
level in the float chamber.
90890-01325
-01352
Radiator cap tester
Adaptor
These tools are used for checking the
cooling system.
90890-01326
-04084
T-handle
Damper rod holder
These tool are used for holding the
damper rod holder when removing or
installing the damper rod holder.
90890-01337
-01464
Clutch spring compressor
Clutch spring holder arm
These tools are used for removing the
nut with holding the compression spring.
90890-01348 Locknut wrench
This tool is used when removing or
installing the secondary sheave nut.
