7-14
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8

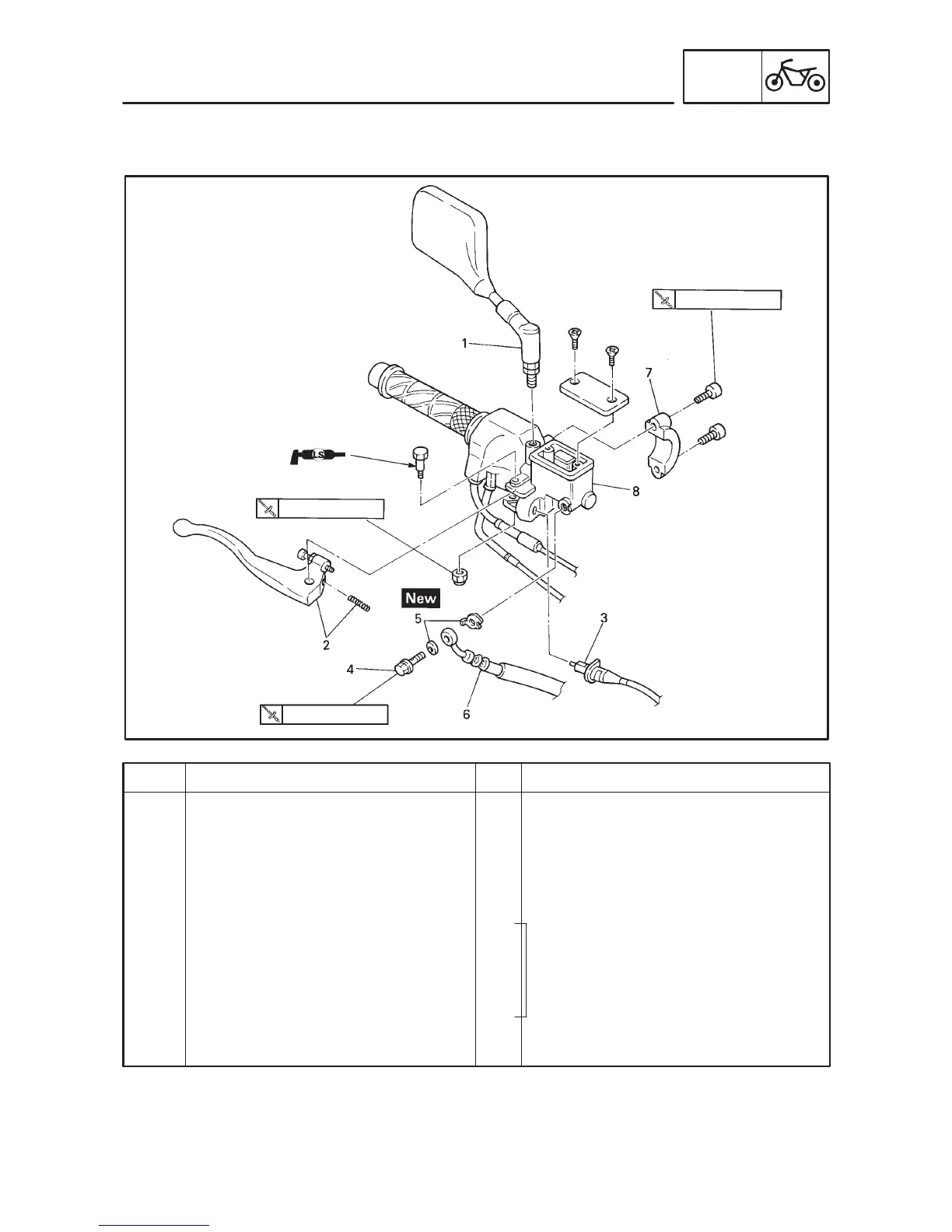

Master cylinder removal
Drain the brake fluid
Rear view mirror (right)
Brake lever/compression spring
Brake switch
Union bolt
Plain washer
Brake hose
Master cylinder bracket
Master cylinder
1
1/1
1
1
2
1
1
1
Remove the parts in order.
Refer to “BRAKE FLUID REPLACE-
MENT” section in CHAPTER 3.
Refer to “MASTER CYLINDER
INSTALLATION” section.
Reverse the removal procedure for
installation.
10 Nm (1.0 mkg)
10 Nm (1.0 mkg)
26 Nm (2.6 mkg)
FRONT BRAKE
CHAS
MASTER CYLINDER
