7-10
REAR WHEEL AND REAR BRAKE
CHAS
NOTE:
NOTE:
EB701020
REAR WHEEL INSPECTION
1. Inspect:
Rear wheel axle
Rear wheel
Rear wheel bearings
Oil seals
Refer to “FRONT WHEEL”.
2. Measure:
Rear wheel runout
Refer to “FRONT WHEEL”.
EB701021

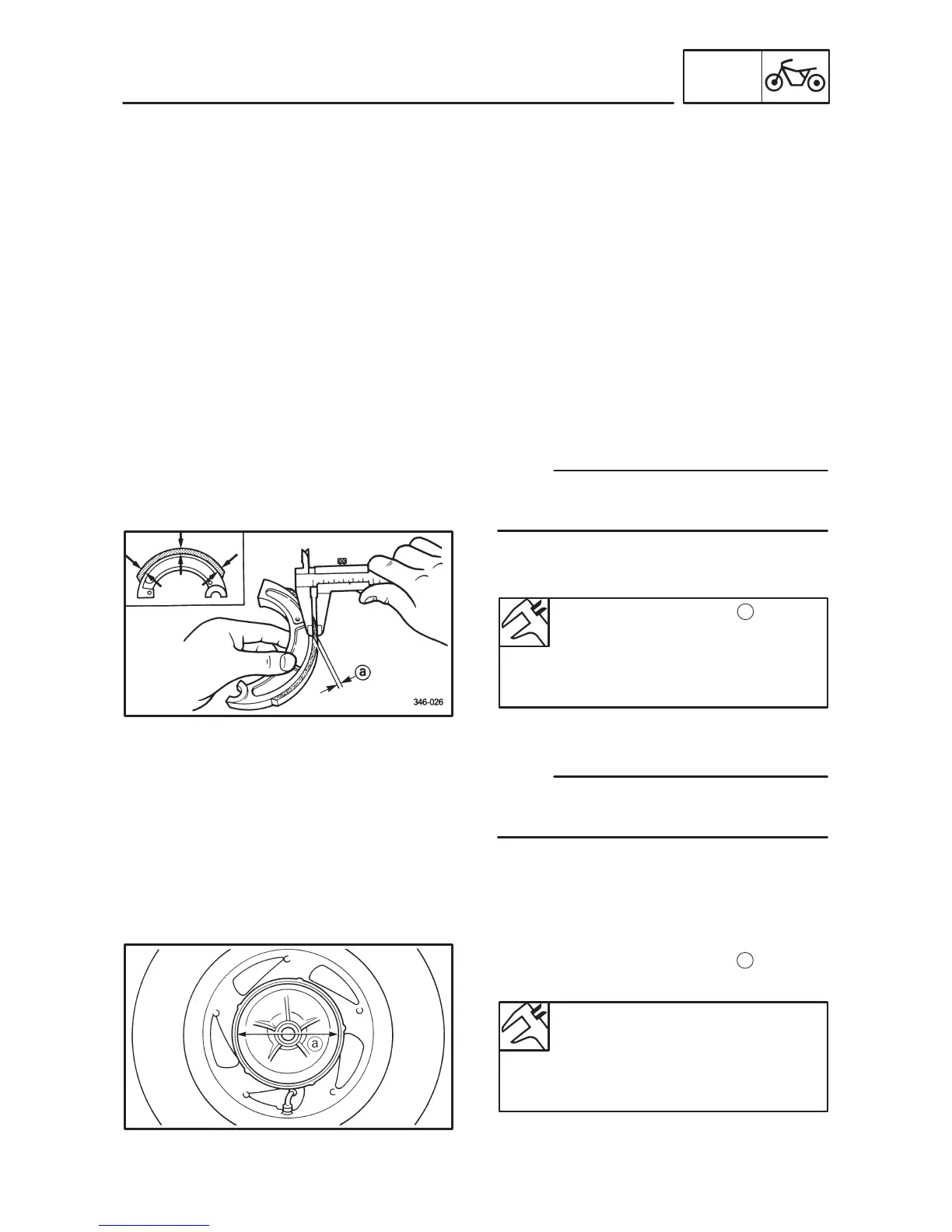

REAR BRAKE INSPECTION
1. Inspect:
Brake lining surface
Glazed areas Polish.
Use coarse sand paper.
After polishing, wipe the polished particles with
a cloth.
2. Measure:
Brake lining thickness
Brake lining thickness
a
:
Standard:
4 mm
Limit:
2 mm
Out of specification Replace.
Measuring points
Replace the brake shoes as a set if either is
worn to the limit.
3. Measure:
Brake drum inside diameter
a
Out of specification Replace the wheel.
Brake drum inside diameter:
Standard:
160 mm
Limit:
161 mm
