7-38
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9
Rear shock absorber and
swingarm removal
Side panels
Box
Nut
Muffler assembly
Axle nut
Rear shock absorber
Swingarm
Collar
Oil seal
Bearing
1
2
1
1
1
1
1
1
1
Remove the parts in order.
Refer to “COVER AND PANEL” section
in CHAPTER 3.
Loosen.
Remove with the rear brake applied.
Reverse the removal procedure for
installation.
NOTE:
NOTE:
40 Nm (4.0 mkg)
19 Nm (1.9 mkg)
135 Nm (13.5 mkg)
7 Nm (0.7 mkg)
20 Nm (2.0 mkg)
23 Nm (2.3 mkg)
20 Nm (2.0 mkg)
53 Nm (5.3 mkg)

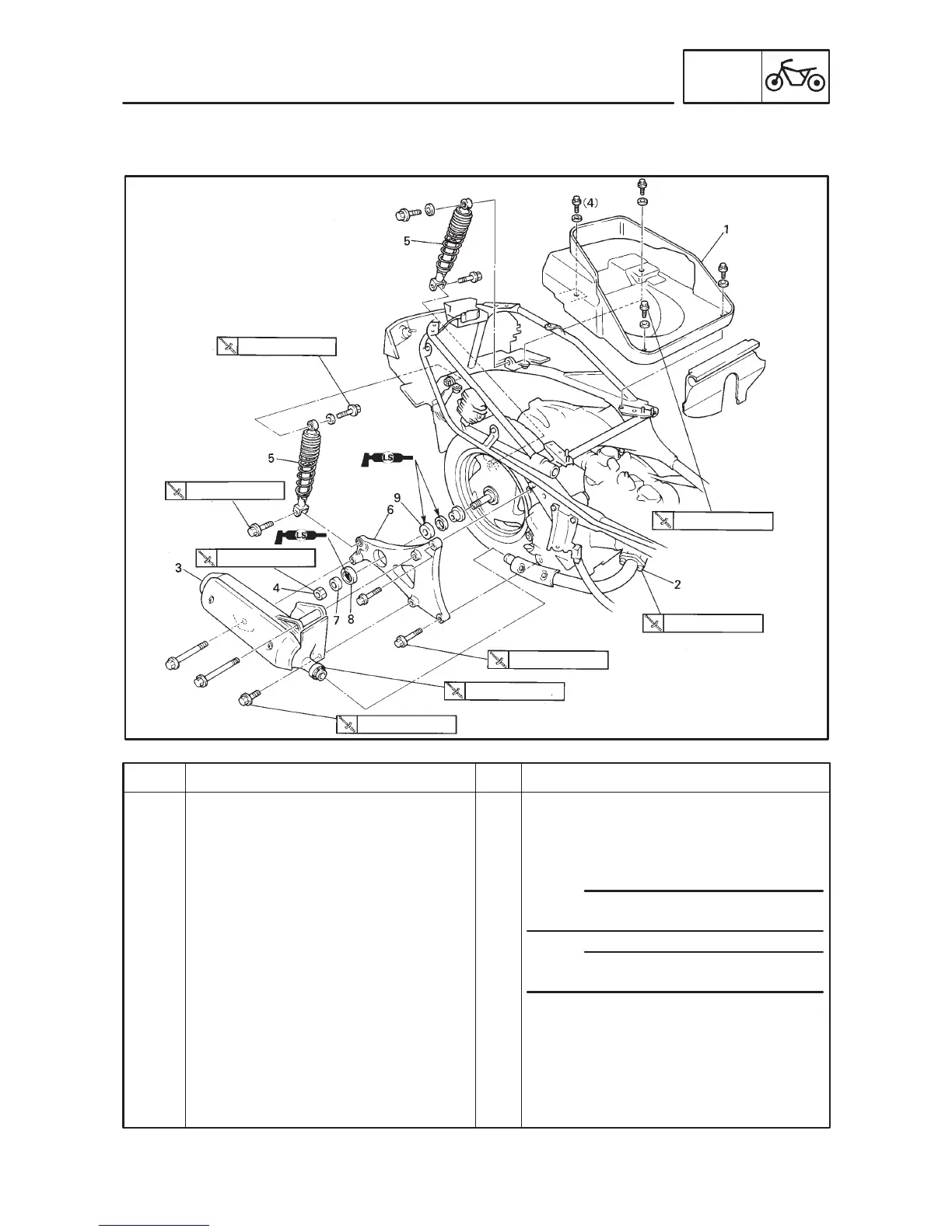

REAR SHOCK ABSORBER AND SWINGARM
CHAS
REAR SHOCK ABSORBER AND SWINGARM
