7-13
FRONT BRAKE
CHAS
NOTE:
NOTE:
CAUTION:
23 Nm (2.3 mSkg)
YP702010

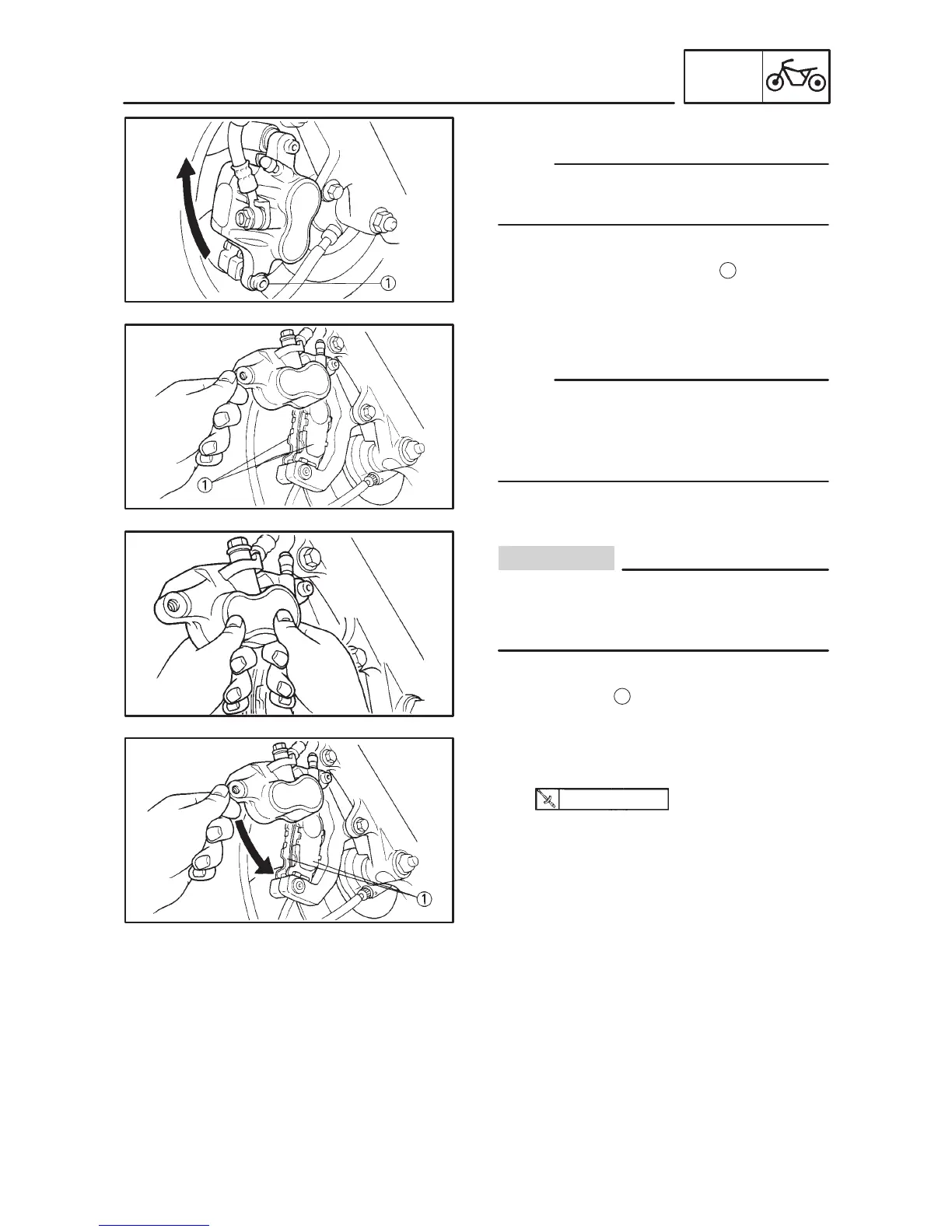

BRAKE PAD REPLACEMENT
It is not necessary to disassemble the brake cal-
iper and brake hose to replace the brake pads.
1. Remove:
S Bolt (caliper support bolt)
1
Move the direction brake caliper to the ar-
row mark.
2. Remove:
S Brake pads
D Install new brake pad springs when the brake
pads have to be replaced.
D Replace the brake pads as a set if either is
found to be worn to the wear limit.
3. Push the caliper piston into the brake cali-
per by finger.
When pushing the caliper piston into the
brake caliper, brake fluid level in reservoir
tank is increasing higher.
4. Install:
S Brake pad
1
Install the brake pad, and move the brake
caliper to the allow mark direction.
5. Install:
S Bolt (caliper support bolt)
6. Inspect:
S Brake fluid level
Refer to “BRAKE FLUID LEVEL INSPEC-
TION” section in CHAPTER 3.
7. Check:
S Brake lever operation
Soft spongy feeling Bleed the brake
system.
Refer to “AIR BLEEDING (HYDRAULIC
BRAKE SYSTEM)”in CHAPTER 3.
To Next Page
