REAR SHOCK ABSORBER ASSEMBLY
4-61

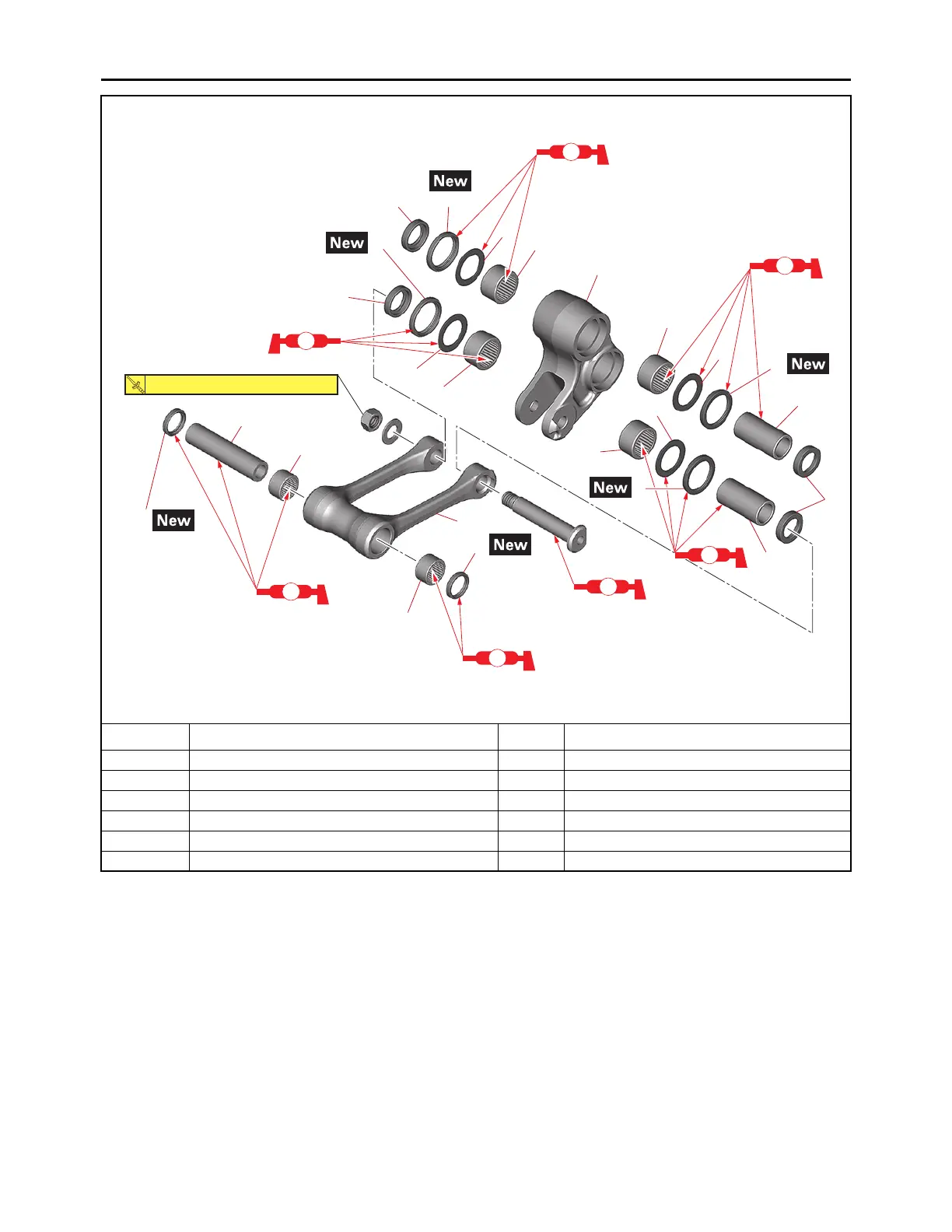

Disassembling the relay arm
Order Job/Parts to remove Q’ty Remarks
1Relay arm 1
2 Connecting arm 1
3 Collar 3
4 Oil seal 6
5 Washer 8
6 Bearing 6
