YAMAZAKI MAZAK INTEGREX e Series - G-Codes; M-Codes; Longitudinal Cut-Off Cycle G274

MACHINING PROGRAM 4
4-17
D. G-codes / M-codes
See the document [99 Supplement] for details.
G-codes
G-codes
Group
Description
G43P1
8
Tool length offset (+)
For turning tools
G274
9
Longitudinal cut-off cycle
G80
9
Fixed cycle OFF

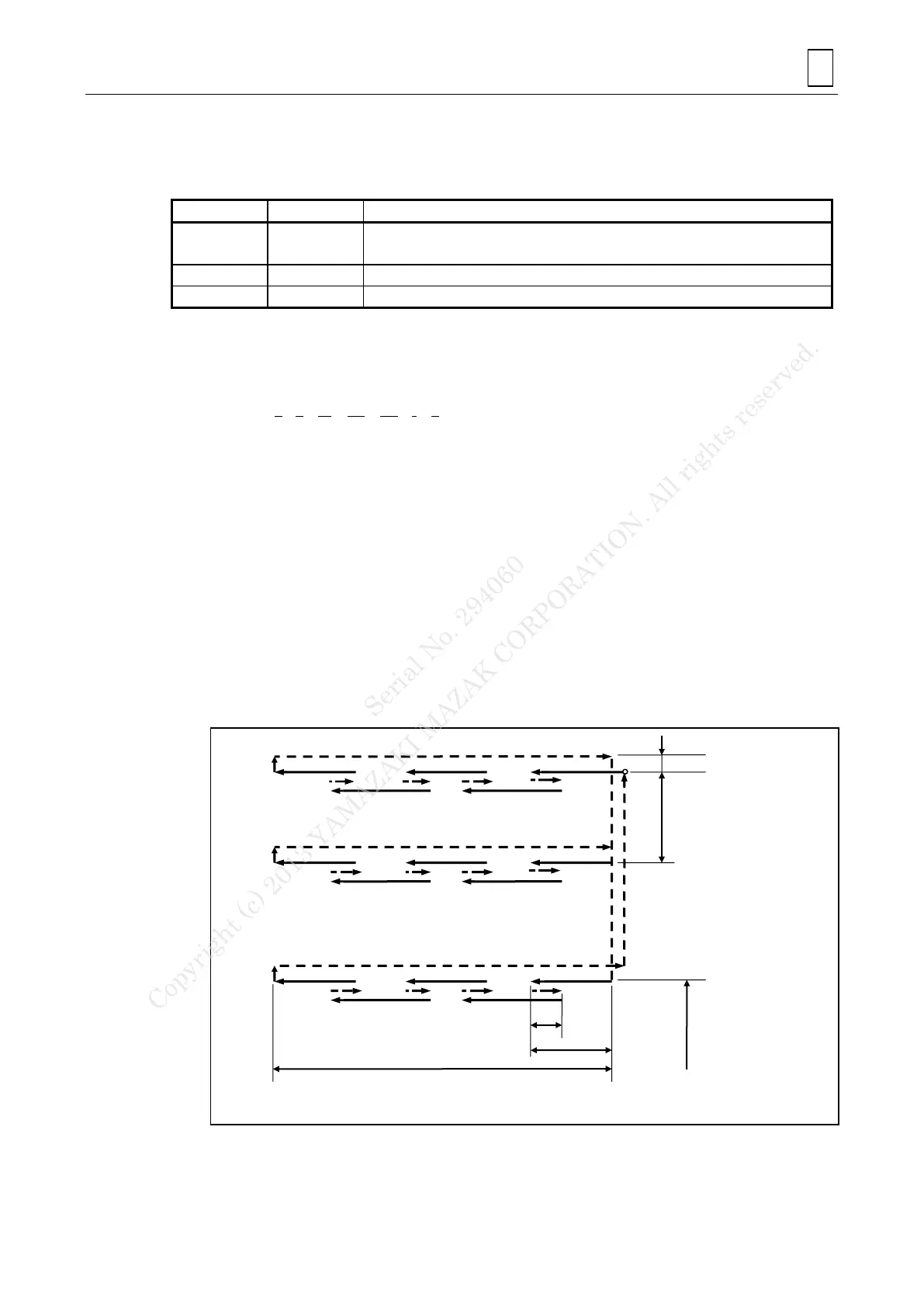

 Longitudinal cut-off cycle G274
1. Programming format
G274 Re;
G274 Xx Zz Pi Qk Rd Ff Ss;
e : Return distance
The value is modal and remains valid until it is overwritten with a new value.
x : Final X-axis position in absolute/incremental data
z : Final Z-axis position in absolute/incremental data
i : X-axis movement step (in an absolute value)
k : Z-axis depth of cut (in an absolute value)
d : Tool escape distance at the bottom of cut
Normally set in an absolute value. When omitting the arguments X and P,
however, set the value with a sign as required for the direction of escape.
f : Feed function (rate of feed)
s : Spindle function
The distance “e” is set by parameter SU104 (pecking return distance in grooving process).
TEP141’
i
d
A
x
z
k
e
