PRODUCT OVERVIEW
14 JH Series Operation Manual

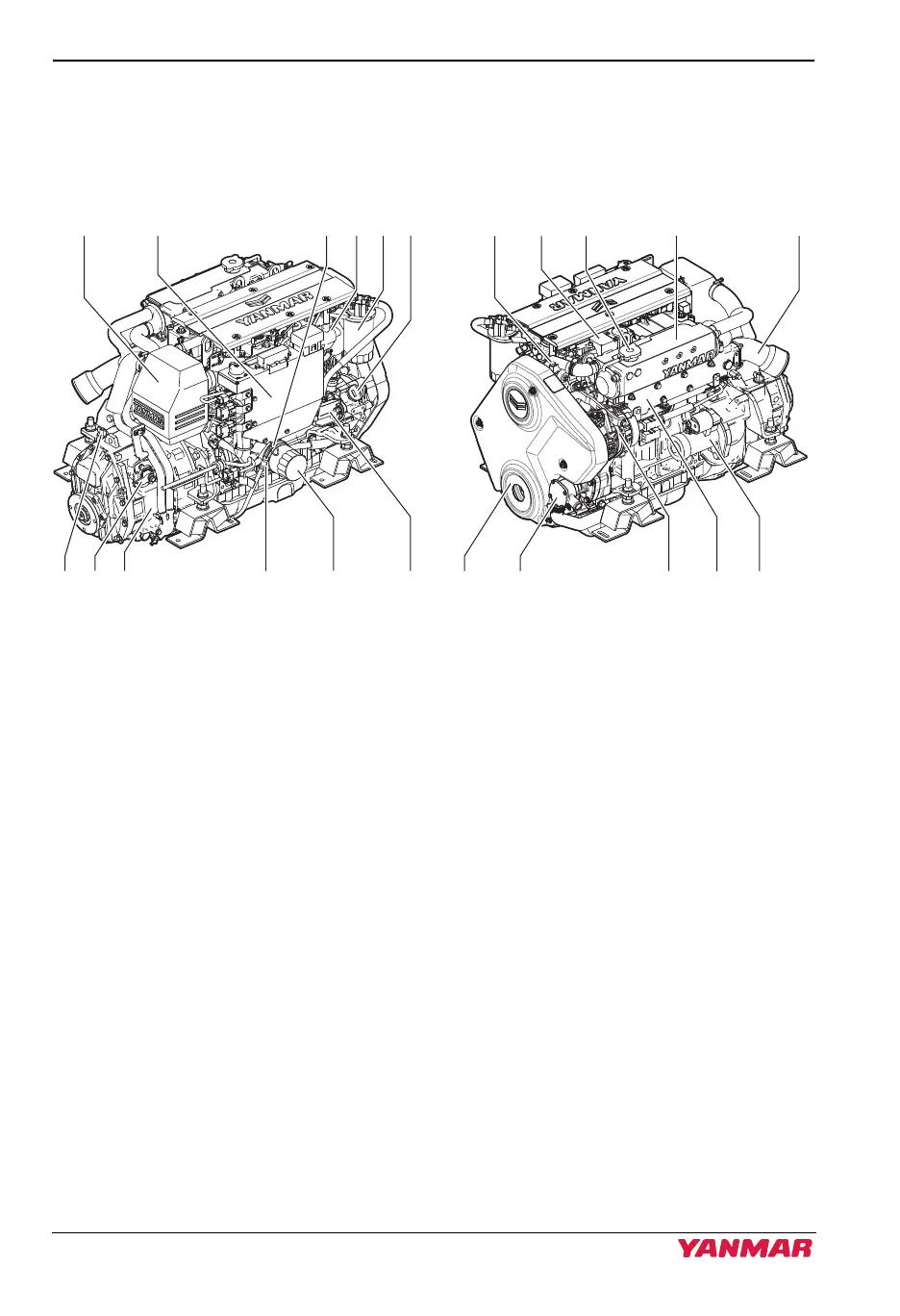

Figure 3 and Figure 4 illustrate a typical version of a 4JH45/4JH57 engine. Your engine
may have different equipment from that illustrated.
Right Side (Viewed from
Flywheel) - 4JH45/4JH57
Figure 2
Figure 3
1 – Intake silencer
2 – ECU cover
3 – Engine oil dipstick
4 – Intake manifold
5 – Fuel filter
6 – Engine oil filler cap
7 – Fuel supply pump
8 – Engine oil filter
9 – Engine oil cooler
10 – Marine gear (KM4A1)
11 – Shift lever
12 – Marine gear oil dipstick
Left Side (Viewed from Flywheel)
- 4JH45/4JH57
Figure 4
13 – Coolant pump
14 – Engine nameplate (on rocker
arm cover)
15 – Coolant filler cap
16 – Coolant tank/Heat exchanger
17 – Exhaust/water mixing elbow
18 – Starter motor
19 – Exhaust manifold
20–Alternator
21–Seawater pump
22 – Belt cover
