PRODUCT OVERVIEW
32 JH Series Operation Manual
Accessory Power Output

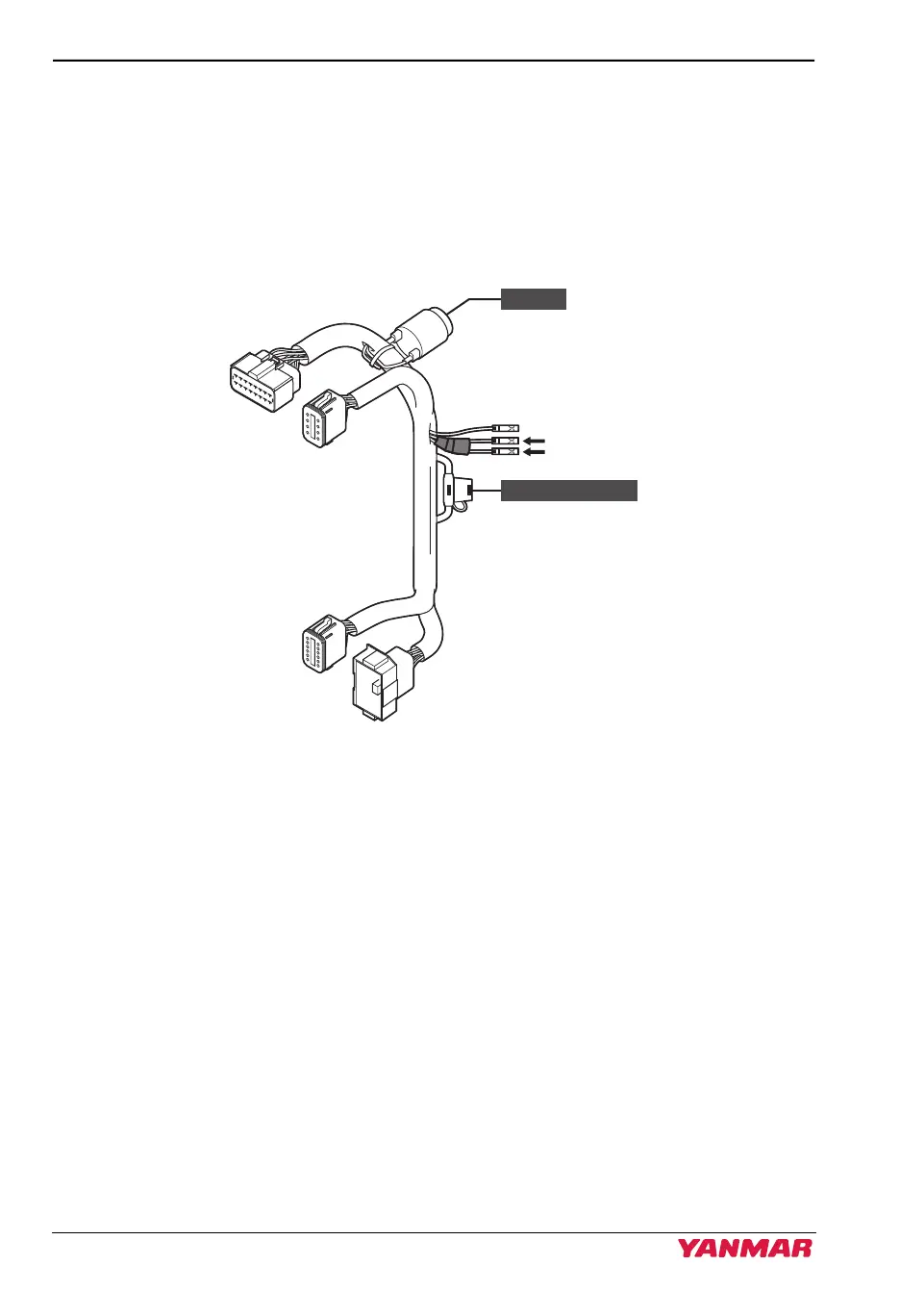

The harness attached to the panel has a terminal where the signal that is synchronized to
the panel power supply can be taken off. (Figure 21) (Refer to the Service Manual.)
The maximum current of this output terminal is 3 A (Fuse capacity). Do not use a current
higher than 3 A.
For the content of the output terminal, refer to the Service Manual.
Figure 21
043801-01EN00
F1A - 3 AMP Fuse
Buzzer
ACC Output
