PRODUCT OVERVIEW
20 JH Series Operation Manual
CONTROL EQUIPMENT
The equipment in the control room makes remote control operation possible. It consists of
the instrument panel, which is connected to the engine by a wire harness, and the remote
control handle, which is connected by control cables to the engine control lever and
marine gear.
Instrument Panel (Optional)
Equipment and Functions
The instrument panel is located in the cockpit. The following instruments enable you to
start or stop the engine and to monitor its condition during operation.

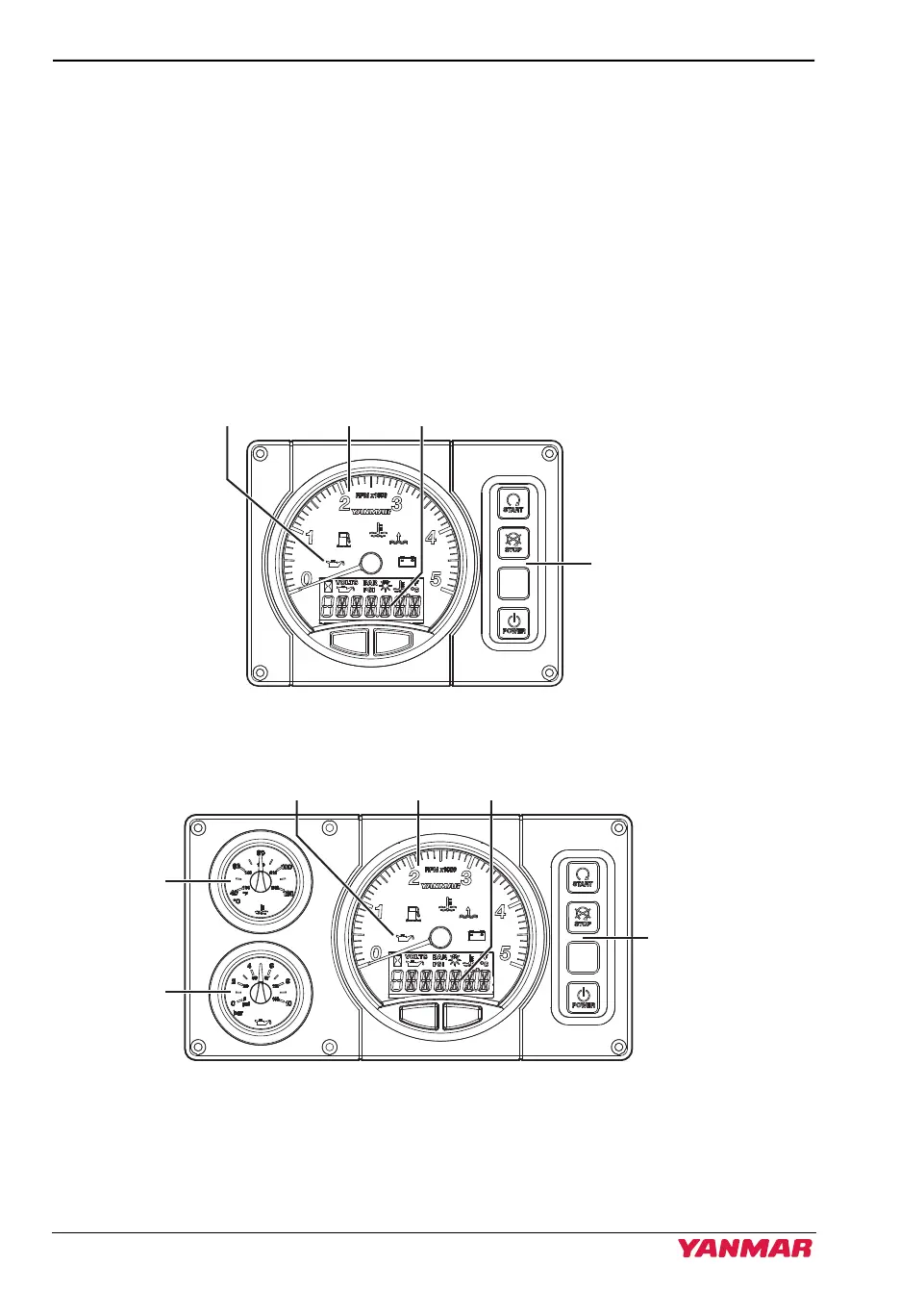

B25-Type
Figure 10
C35-Type
Figure 11
1 – Alarm lamp
2 – Tachometer
3–LCD
4 – Switches (push-buttons)
5 – Coolant temperature gauge
6 – Engine oil pressure gauge
042563-02X00
