BEFORE YOU OPERATE
JH Series Operation Manual 57

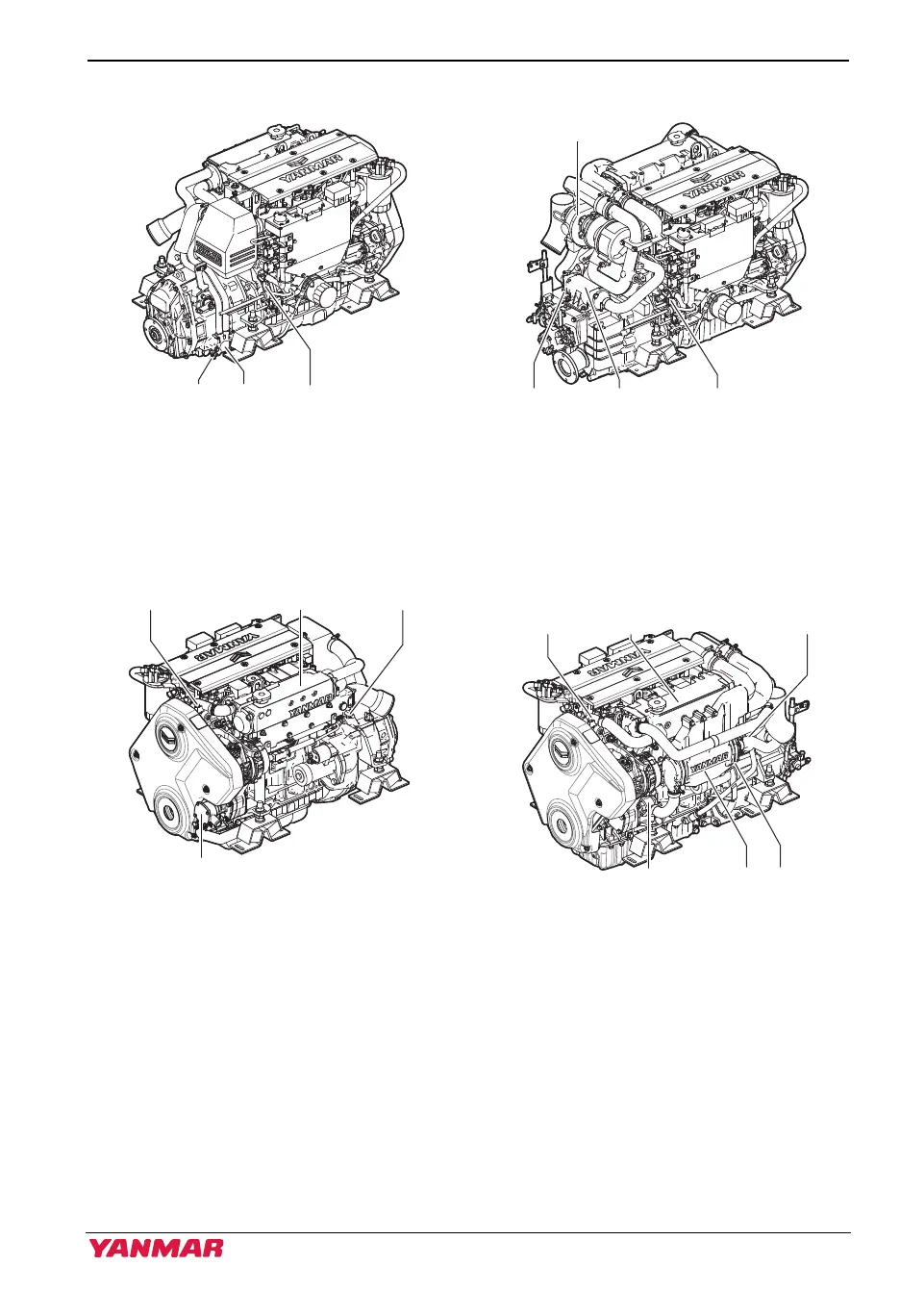

4JH45, 4JH57
Figure 10
1 – Coolant drain cock
(Cylinderblock)
2 – Marine gear oil cooler (KM4A1)
3 – Seawater drain cock
(Marine gear oil cooler)
Figure 2
Figure 11
4 – Coolant pump
5 – Coolant tank (Heat exchanger)
6 – Coolant drain cock
(Coolant tank/Heat exchanger)
7 – Seawater pump
(Drain from pump cover)
4JH80, 4JH110
Figure 12
1 – Turbocharger
2 – Coolant drain cock
(Cylinderblock)
3 – Marine gear oil cooler (KMH4A)
4 – Seawater drain cock
(Marine gear oil cooler)
Figure 3
Figure 13
5 – Coolant pump
6 – Coolant tank (Heat exchanger)
7 – Coolant drain cock (Coolant
tank/Heat exchanger)
8 – Seawater drain cock (Air cooler)
9 – Air cooler
10–Seawater pump
(Drain from pump cover)
1
23
056983-02X00
456
7
056984-02X00
1
234
056988-02X00
56 7
810 9
056989-03X00
