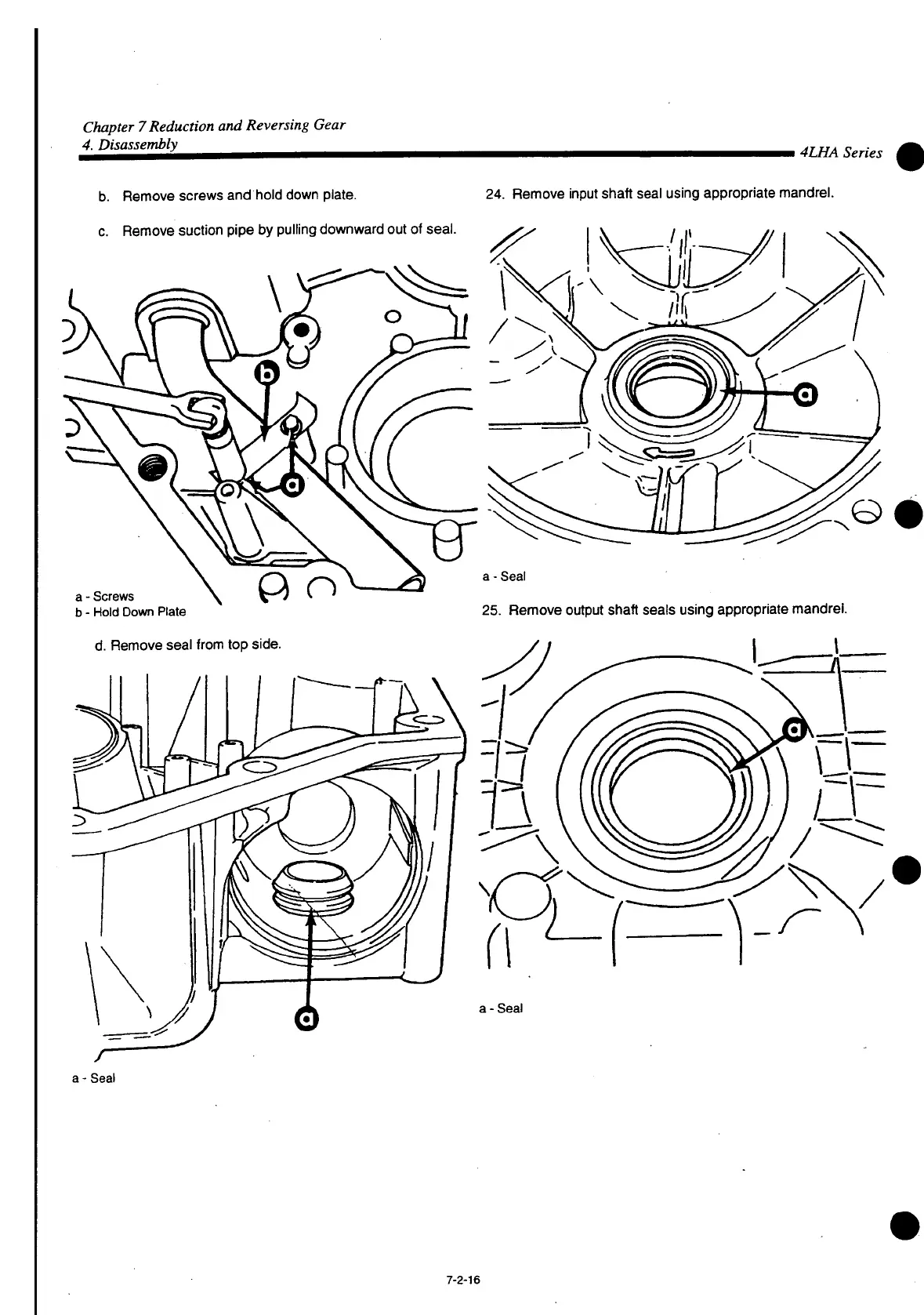

Chapter 7 Reduction and Reversing Gear
4. Disassembly
i 4LHA Series
b. Remove screws and hold down plate.
c. Remove suction pipe by pulling downward out of seal.
24. Remove input shaft seal using appropriate mandrel.
b - Hold Down Plate
d. Remove seal from top side.
a - Seal
25. Remove output shaft seals using appropriate mandrel.
I
a - Seal
7-2-16
