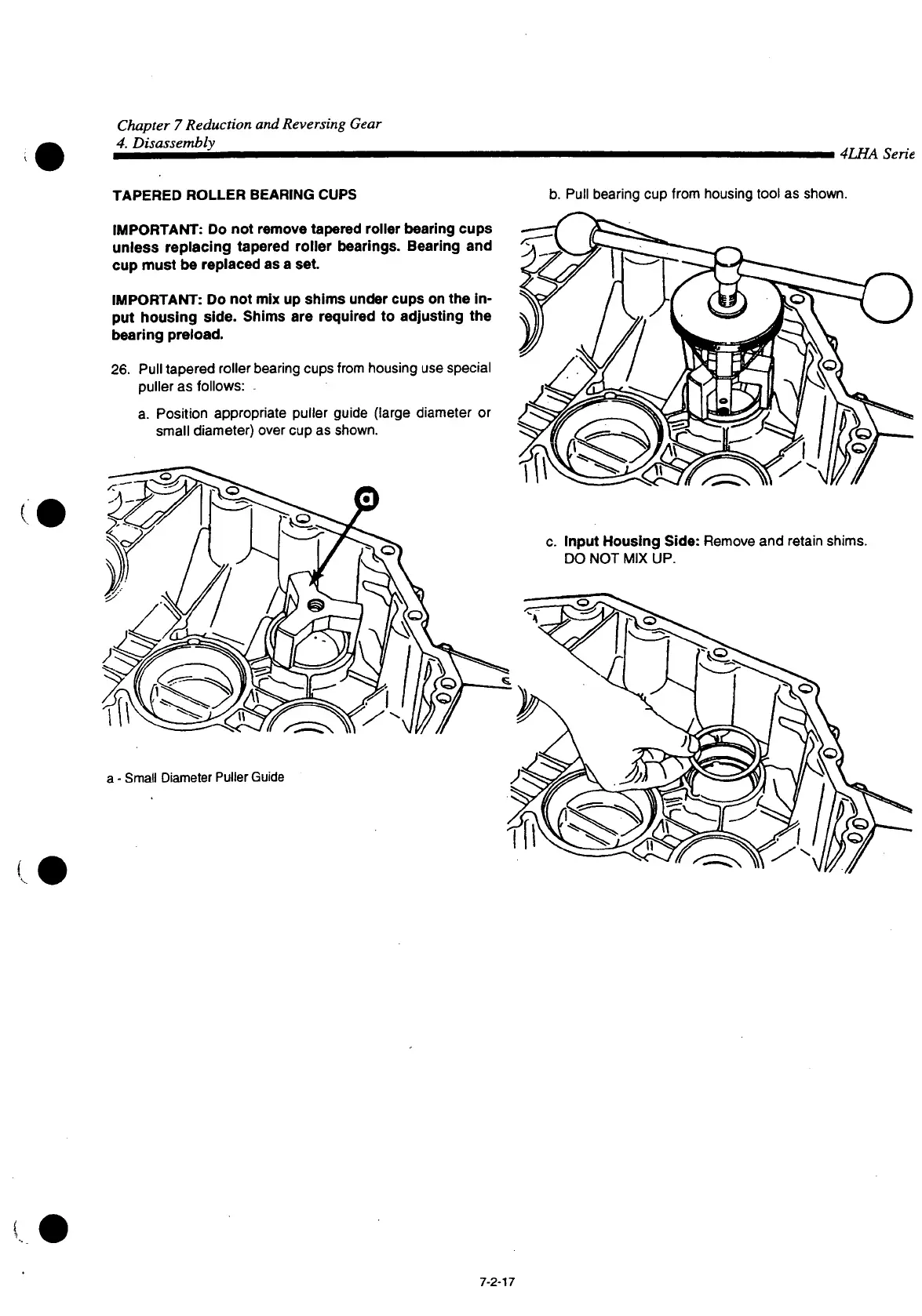

Chapter 7 Reduction and Reversing Gear
4. Disassembly
4LHA Serie
TAPERED
ROLLER BEARING CUPS
IMPORTANT: Do not
remove
tapered
roller
bearing
cups
unless
replacing
tapered
roller
bearings. Bearing and
cup
must
be
replaced
as a set.
IMPORTANT: Do not mix up shims
under
cups on the in-
put housing side. Shims are
required
to
adjusting
the
bearing
preload.
26.
Pull tapered roller bearing cups from housing use special
puller as follows:
a.
Position appropriate puller guide (large diameter or
small
diameter) over cup as shown.
b. Pull bearing cup from housing tool as shown.
c.
Input
Housing
Side:
Remove and retain shims.
DO
NOT MIX UP.
a
- Small Diameter Puller Guide
7-2-17
To Next Page
