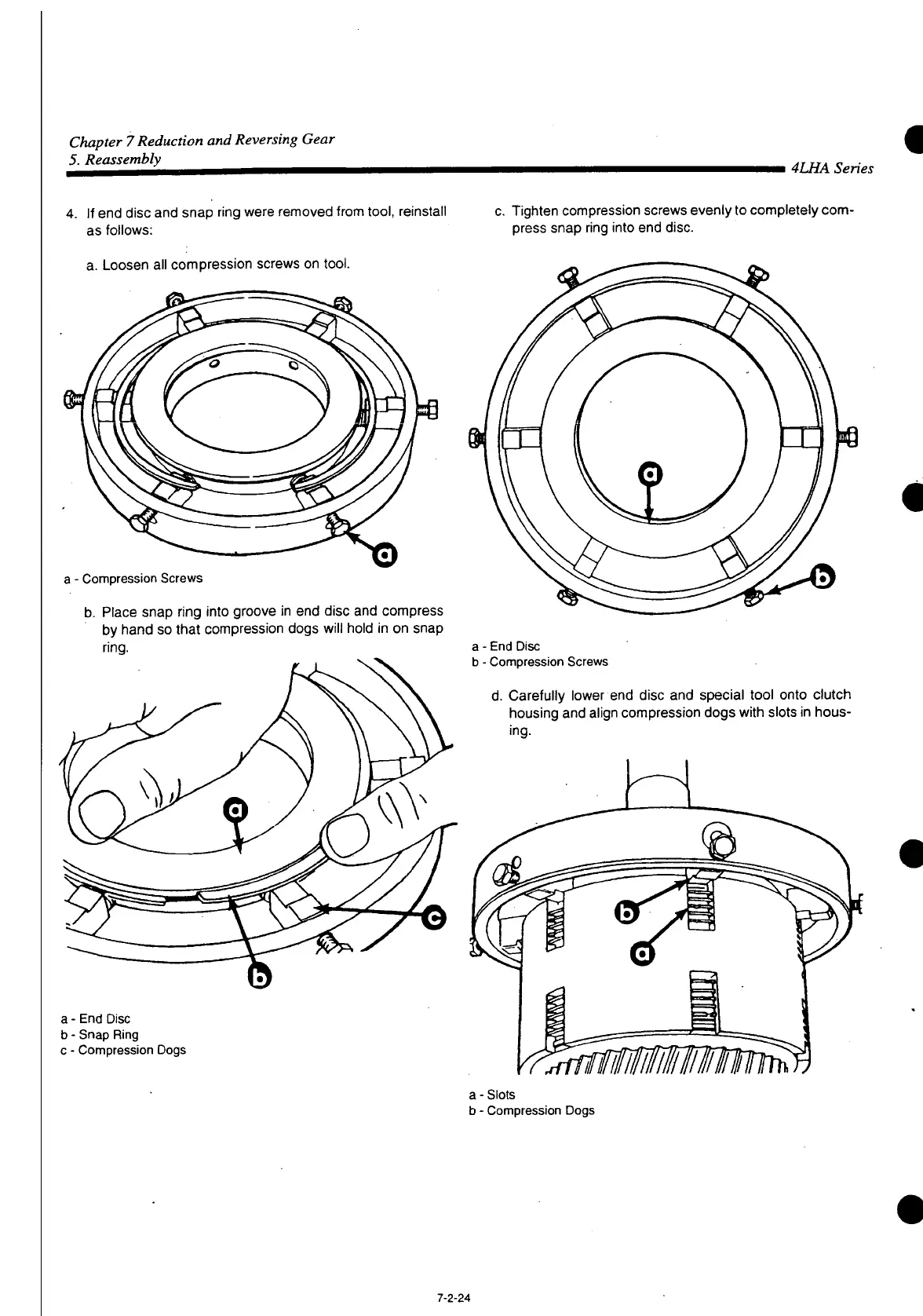

Chapter 7 Reduction and Reversing Gear
5. Reassembly
4LHA Series
4. If end disc and snap
ring
were removed
from
tool, reinstall
as
follows:
a.
Loosen all compression screws on tool.
c. Tighten compression screws evenly to completely com-
press snap
ring
into
end disc.
a
- Compression Screws
b.
Place
snap
ring
into
groove in end disc and compress
by hand so
that
compression dogs
will
hold in on snap
ring.
a
- End Disc
b - Snap Ring
c
- Compression Dogs
a
- End Disc
b - Compression Screws
d.
Carefully lower end disc and special
tool
onto
clutch
housing and align compression dogs
with
slots in hous-
ing.
a
- Slots
b - Compression Dogs
7-2-24
